30
Connecting the AV Receiver—Continued

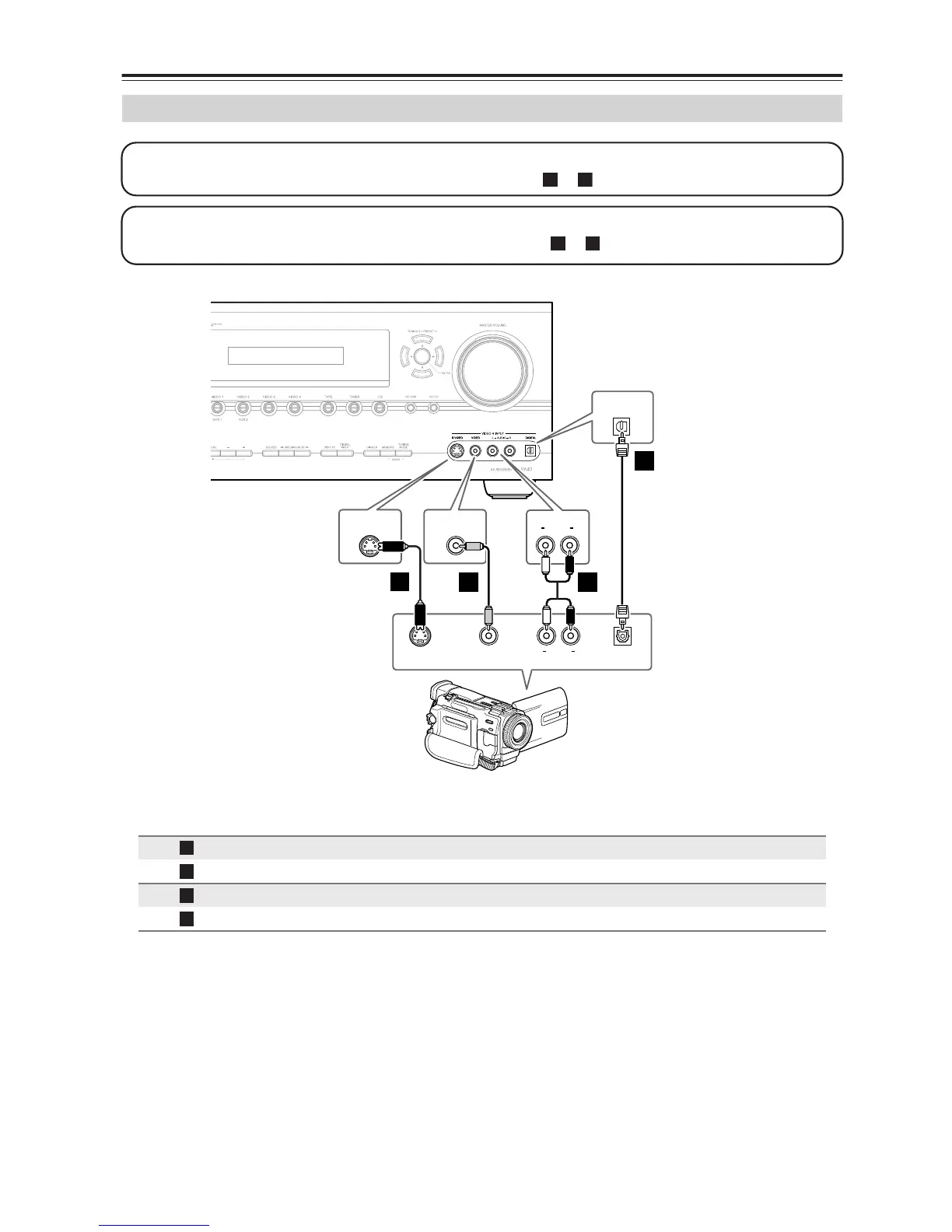

Connecting a Camcorder, Games Console, or Other Device
Connection AV receiver Signal flow Camcorder or console
VIDEO 4 INPUT S VIDEO
⇐
S-Video output
VIDEO 4 INPUT VIDEO
⇐
Composite video output
VIDEO 4 INPUT L/R
⇐
Analog audio L/R output
VIDEO 4 INPUT DIGITAL
⇐
Digital optical output
Step 1: Video Connection
Choose a video connection that matches the camcorder or console ( or ), and then make the connection.
A
B
Step 2: Audio Connection
Choose an audio connection that matches the camcorder or console ( or ), and then make the connection.
a b
DIGITAL
S VIDEO
OPTICAL
OUT
AUDIO
VIDEO
LR
S VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
LR
VIDEO 4 INPUT
VIDEO 4 INPUT
VIDEO 4 INPUT
VIDEO 4 INPUT
A
a
b
B
Camcorder, games console, etc.
A
B
a
b
