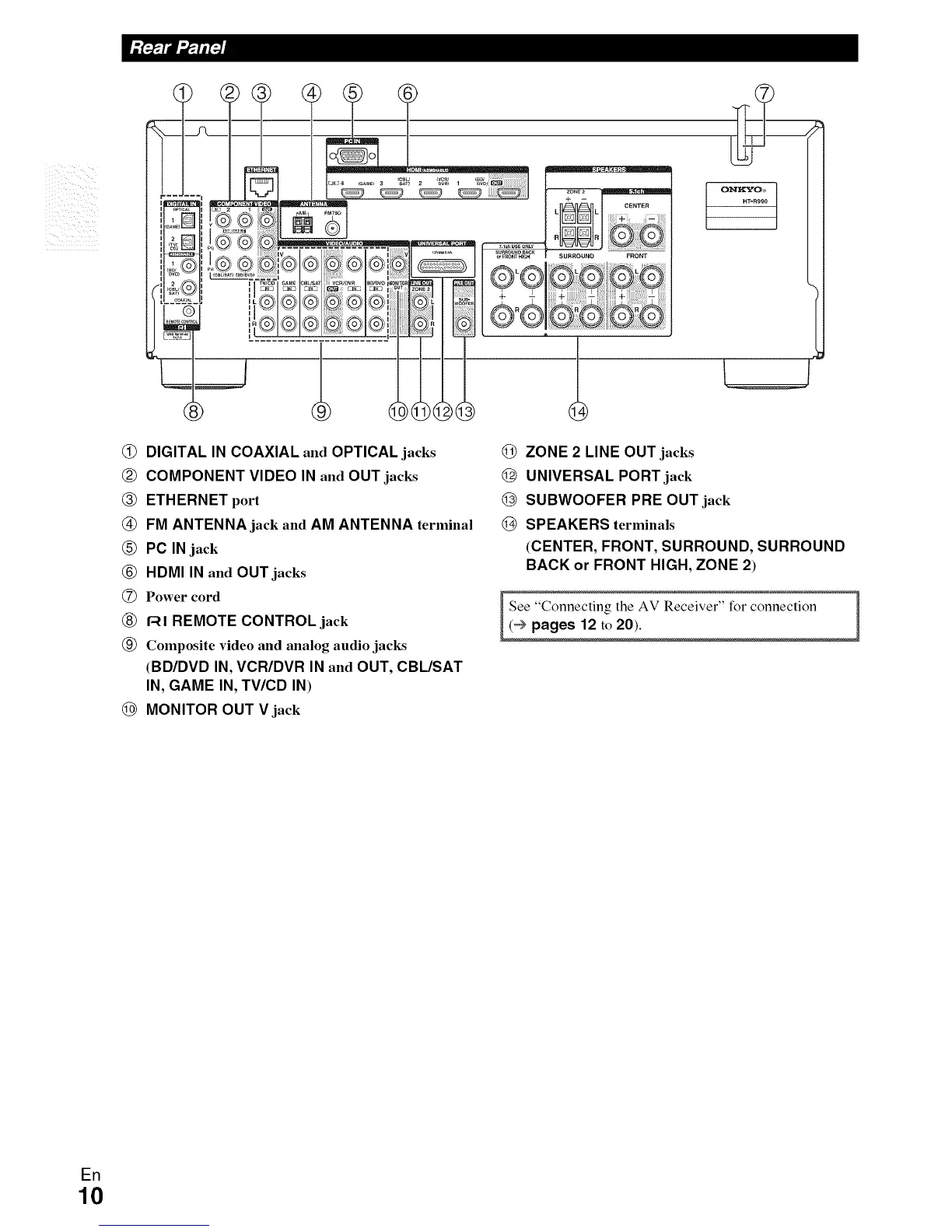

(!) DIGITAL IN COAXIAL and OPTiCAL jacks
_) COMPONENT VIDEO IN and OUT jacks
(_) ETHERNET port
@ FM ANTENNA jack and AM ANTENNA terminal
(_) PC INjack
(_) HDMI IN and OUT jacks
(Z) Power cord
(_) 1-41REMOTE CONTROL jack
(_) Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT
IN, GAME IN, TV/CD IN)
O MONITOR OUT V jack
L L
R R
SURROUND FRONT
HT'R990
(_) ZONE 2 LINE OUT jacks
UNIVERSAL PORT jack
SUBWOOFER PRE OUT jack
O SPEAKERS terminals
(CENTER, FRONT, SURROUND, SURROUND
BACK or FRONT HIGH, ZONE 2)
See "Connecting the AV Receiver" for connection(_ pages 12 to 20). )
