See “Connecting Your Speakers” for connection
(➔ pages 12 to 20).
a uREMOTE CONTROL jack
b COMPONENT VIDEO IN and OUT jacks
c ETHERNET port
d FM ANTENNA jack and AM ANTENNA terminal
e HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
f SPEAKERS terminals
(CENTER, FRONT, SURROUND, SURROUND
BACK or FRONT HIGH, ZONE 2)
g Power cord (North American, European,
Australian and Asian models)
h DIGITAL IN COAXIAL and OPTICAL jacks
i GND screw
j Composite video and analog audio jacks
(BD/DVD IN, CBL/SAT IN, GAME IN, PC IN,
TV/CD IN, PHONO IN)
k MONITOR OUT V jack
l ZONE 2 LINE OUT jacks
m SUBWOOFER PRE OUT jacks
n AC INLET (Taiwanese models)

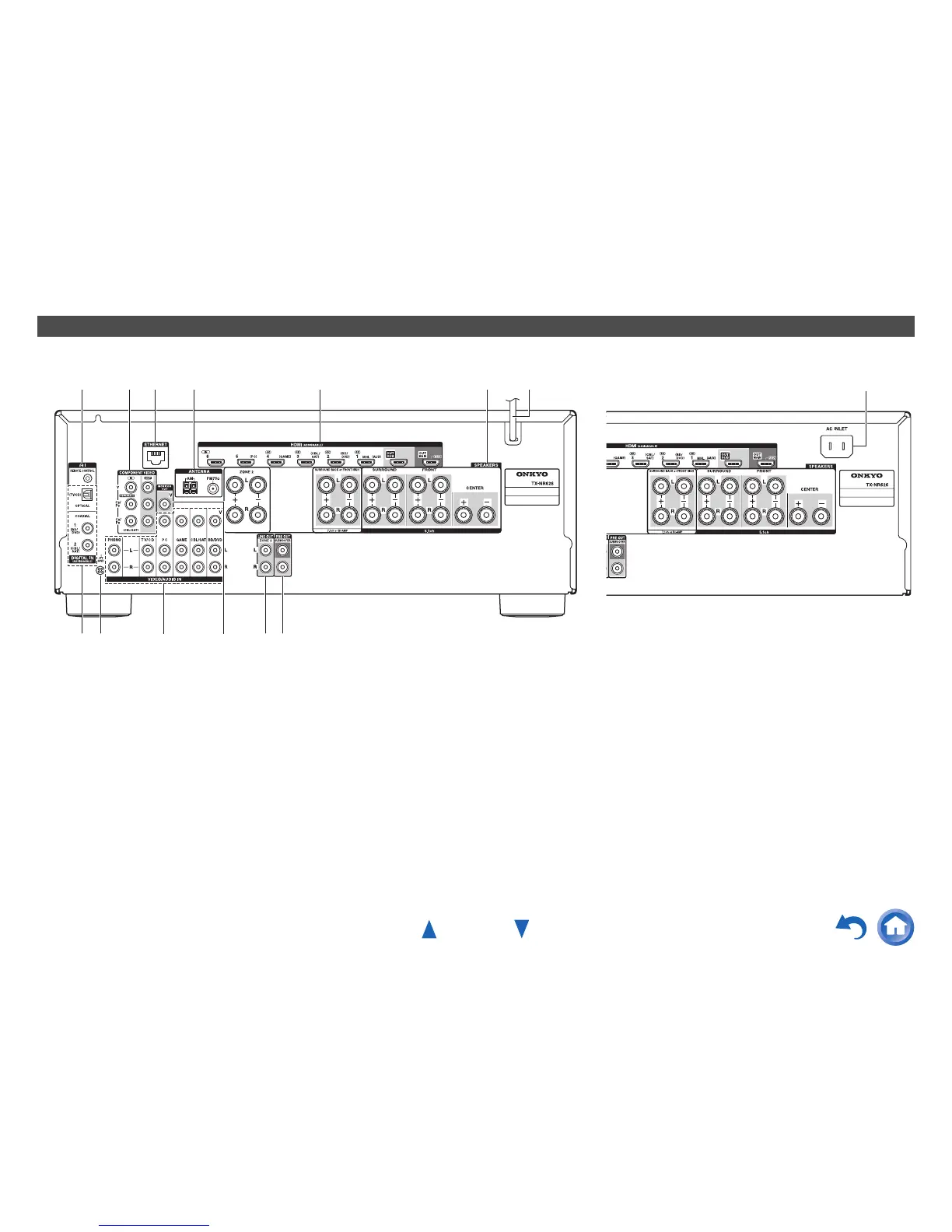

Rear Panel
(North American, European, Australian and Asian models) (Taiwanese models)
a dcb e
g
f
h
i
j
k ml
n
To Next Page
