Connections
En-20
With u (Remote Interactive), you can use the
following special functions:
■ System On/Auto Power On
When you start playback on a component connected
via u, while the AV receiver is on standby, the AV
receiver will automatically turn on and select that
component as the input source.
■ Direct Change
When playback is started on a component connected
via u, the AV receiver automatically selects that
component as the input source.
■ Remote Control
You can use the AV receiver’s remote controller to
control your other u-capable Onkyo components,
pointing the remote controller at the AV receiver’s
remote control sensor instead of the component. You
must enter the appropriate remote control code first
(➔ page 72).
Note
• Use only u cables for u connections. u cables are
supplied with Onkyo components.
• Some components have two u jacks. You can connect
either one to the AV receiver. The other jack is for
connecting additional u-capable components.
• Connect only Onkyo components to u jacks. Connecting
other manufacturer’s components may cause a
malfunction.
• Some components may not support all u functions. Refer
to the manuals supplied with your Onkyo components.
• While Zone 2 is on, the System On/Auto Power On and
Direct Change u functions do not work.
Connecting Onkyo RI Components
1
Make sure that each Onkyo component is
connected with an analog audio cable
(connection
H in the hookup examples)
(➔ page 15).
2

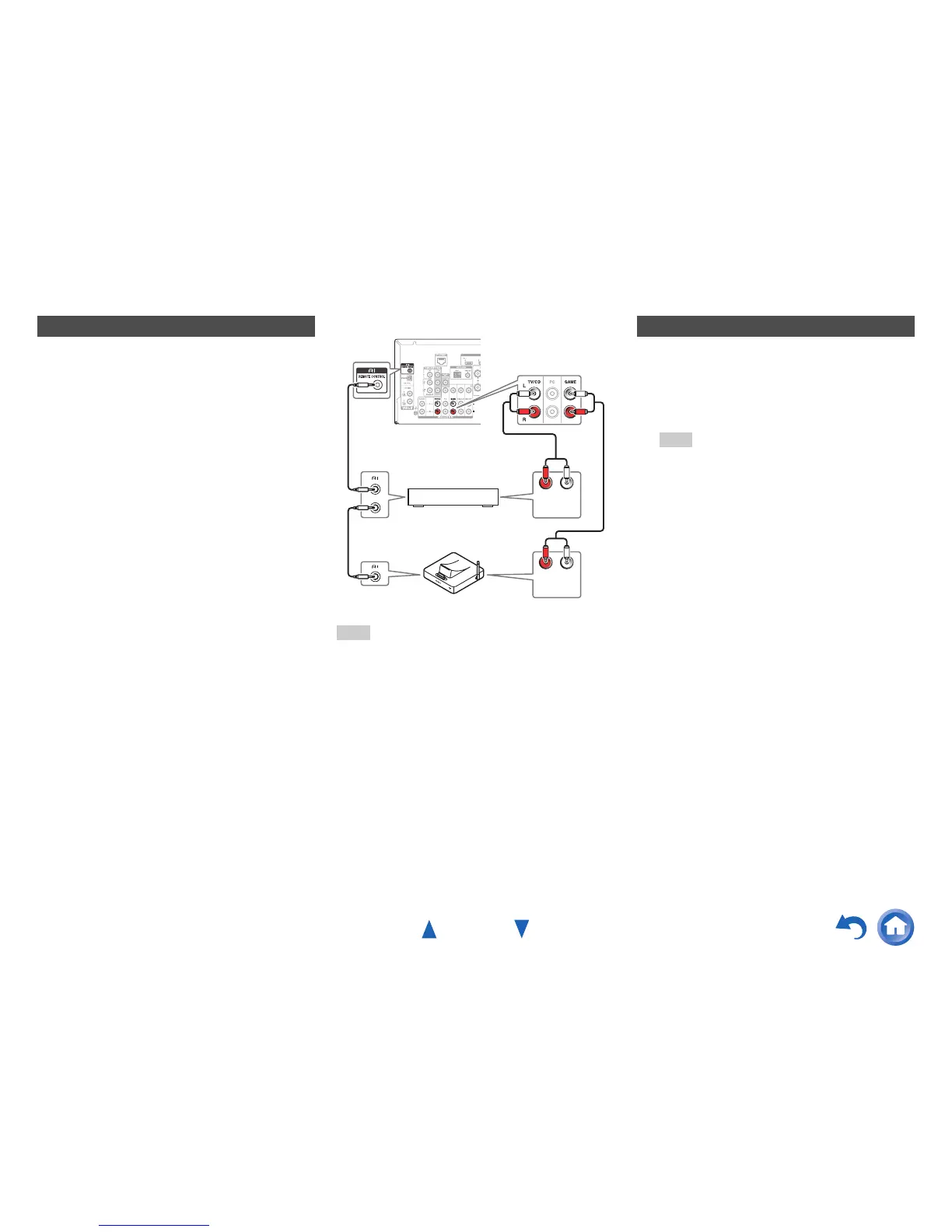

Make the u connection (see the illustration).
3
If you’re using an RI Dock, or cassette tape
deck, change the Input Display (➔ page 46).
LR
ANALOG
AUDIO OUT
LR
ANALOG
AUDIO OUT
e.g., cassette tape deck
RI Dock
Using Headphones
1
Connect a pair of stereo headphones with a
standard plug (1/4 inch or ø 6.3 mm) to the
PHONES jack.
While the headphones plug is inserted in the
PHONES jack, = indicator lights.
Note
• Always turn down the volume before connecting your
headphones.
• While the headphones plug is inserted in the PHONES
jack, the speakers are turned off. (The Zone 2
speakers are not turned off.)
• When you connect a pair of headphones, the listening
mode is set to Stereo, unless it’s already set to Stereo,
Mono, Direct, or Pure Audio (European, Australian
and Asian models).
To Next Page
