Step 1:
Connections
3
1
Connecting the TV and players
Important: The power cord must be connected only after all
other connections are completed.

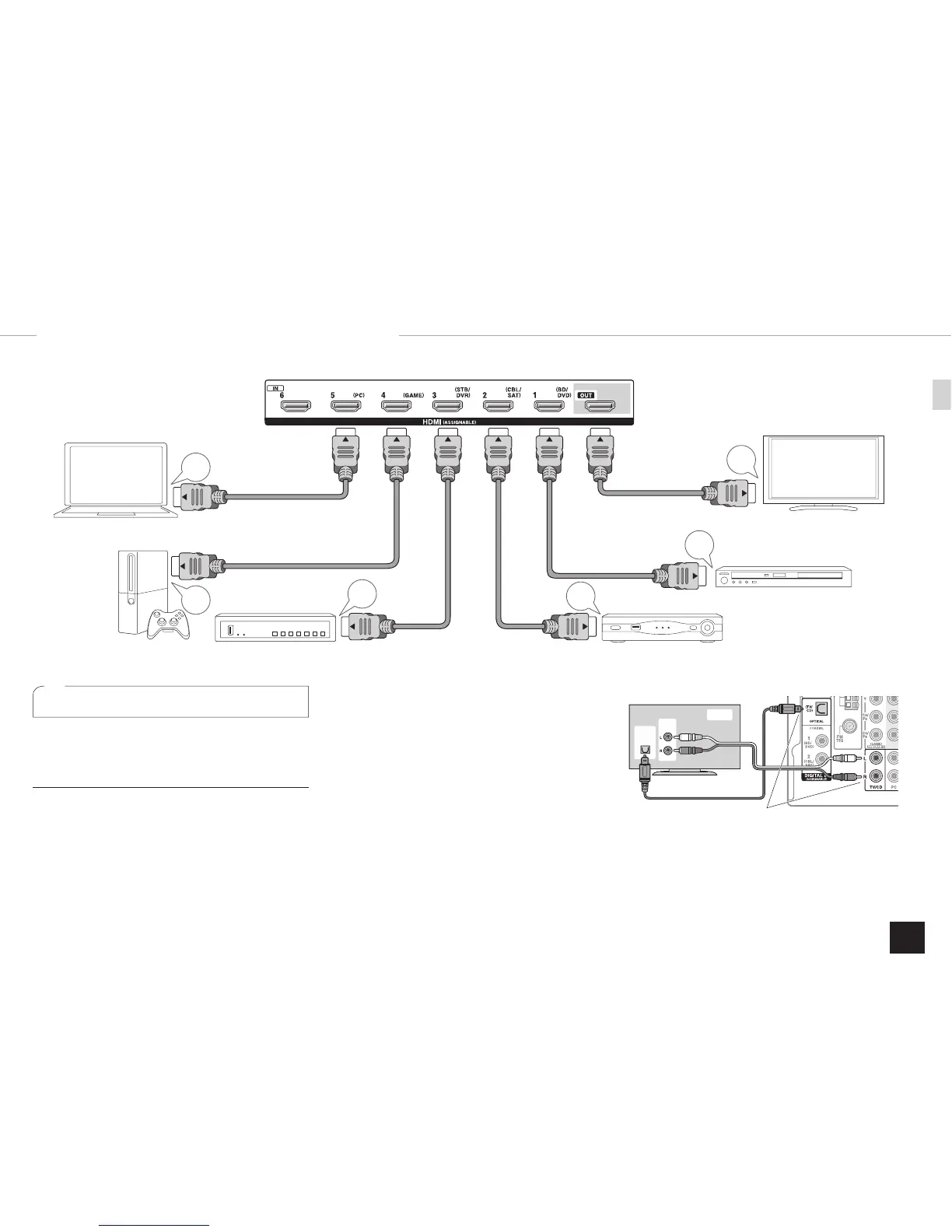

HDMI Cable Connection
The unit has many HDMI jacks on its rear panel and each
of them corresponds to an input selector button of the same
name on the front panel. For example, a Blu-ray Disc player
will be connected to the IN 1 jack and the BD/DVD button
on the front panel will be used to listen to the playback
sound (if the player is CEC compliant, input will be switched
automatically). If you add another Blu-ray Disc player, you
can use any other jack than IN 1. It is possible to change
assignment of the input jacks and input selector buttons.
For how to make settings, see the Advanced Manual.
To connect the TV and the unit, connect the HDMI OUT jack
of the unit and the HDMI IN jack of the TV using an HDMI
cable. With this connection, it becomes possible to display the
setting screen of the unit on the TV or transmit video/audio
signals from the player to the TV. If your TV supports ARC
(Audio Return Channel), it is possible to play the TV sound
with the AV receiver's speakers with this connection only. If
your TV does not support ARC, you need, in addition to the
HDMI OUT jack connection, a digital optical cable connection
between the digital audio out optical jack of the TV and the
DIGITAL IN OPTICAL jack of the unit or an analog audio
(RCA) cable connection between the audio output jack of the
TV and the TV/CD analog audio input jack of the unit.
z
Connection with a TV not supporting ARC
¼
Select an appropriate connection
for your TV.
DIGITAL
OPTICAL
OUT
AUDIO
OUT
TV
The unit supports the HDMI Through function that allows
transmission from players to the TV even if the unit is in
standby. You have to modify the settings to enable the input
selection link with CEC compliant device, connection with
ARC compatible TV, and HDMI Through function. See the
HDMI
OUT
HDMI
OUT
HDMI
OUT
HDMI
OUT
HDM
I
IN
HDMI
OUT
Personal computer
HDMI cable
Set-top box/Digital
video recorder, etc.
Satellite/Cable
set-top box, etc.
Blu-ray Disc/
DVD player
TV
Game console
To use the ARC function, connect to the ARC
compatible HDMI jack of the TV and make an
appropriate setting on the unit. See the section
3 "HDMI Setup" of "Step 2: Setting Up".
