4
Step 1:
Connections
section 3 "HDMI Setup" of "Step 2: Setting Up".
r To play 4K or 1080p video, use the high speed HDMI
cable.

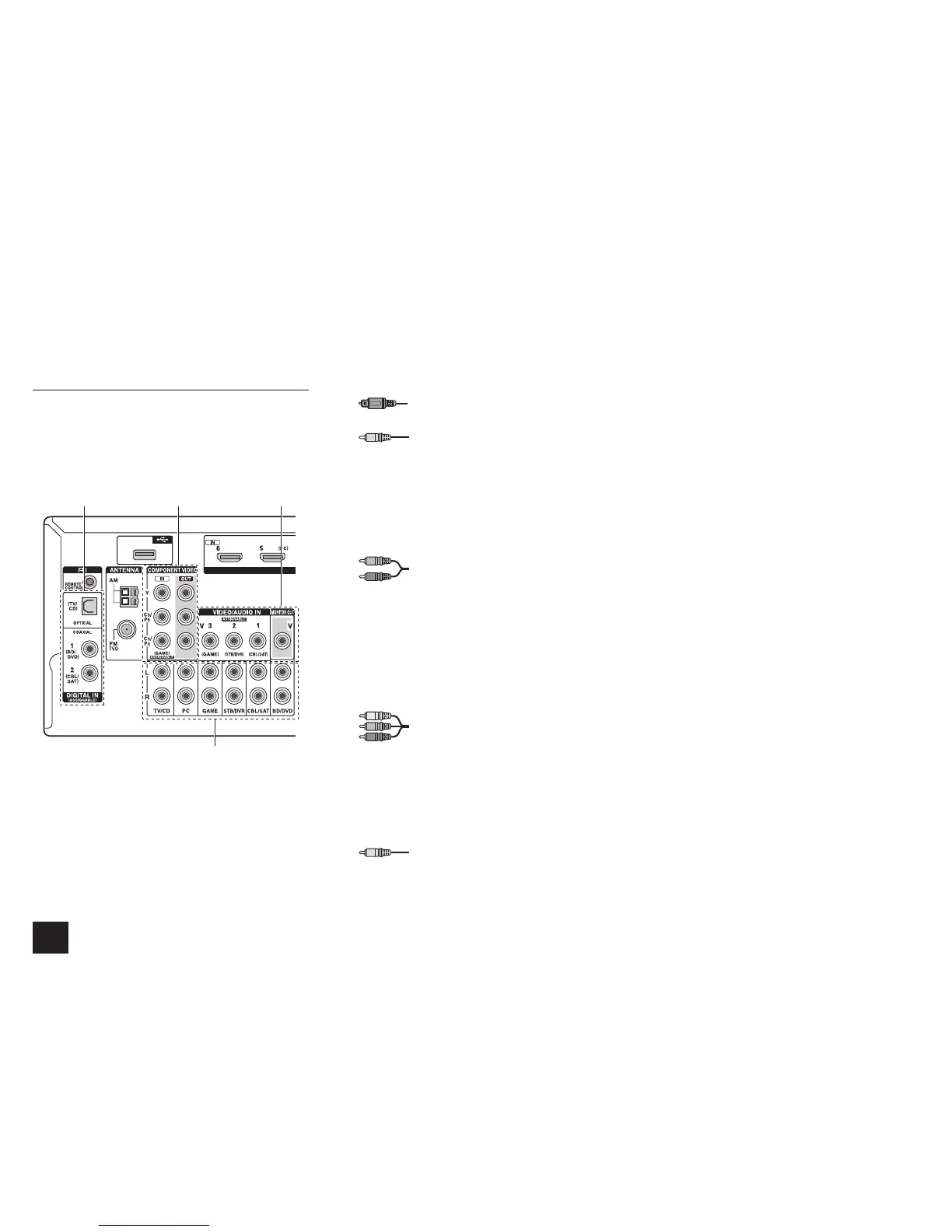

Connecting Components without HDMI
If your AV component does not have HDMI jack, use an
available jack of your component for cable connection with
this unit. Just as the HDMI jacks, other jacks on this unit have
a preassigned input selector button on the front panel. See
the name of the input selector button shown with the jack
when connecting the device.
1 3
2
4
If you connect a turntable which does not have a built-
in audio equalizer, you need to install an external audio
equalizer between the unit and the turntable.
Audio signal connection
1
Digital connection: Use a digital optical cable
(OPTICAL) or digital coaxial cable (COAXIAL) for
connection with a player.
Digital optical cable (OPTICAL)
¼
As the digital in optical jack of the unit has a
cover, push in the cable against the cover as it is
turned inside.
Digital coaxial cable (COAXIAL)
2
Analog connection: Use an analog audio (RCA) cable
for connection with a player.
To enjoy multi-zone playback of audio of a CD player
or such other player without HDMI output jack, you
need to use the analog audio (RCA) cable to connect
the corresponding jacks of the player and this unit. For
details on the multi-zone function, see the section 6
"Using the multi-zone function" of "Step 3: Playing Back".
Analog audio (RCA) cable
Video signal connection
3
Use a component video cable to connect a TV
with component video input jacks and a player with
component video output jacks.
r When a component video cable is used for
connecting the unit and the player, the unit and TV
must also be connected with a component video
cable.
Component video cable
¼
Its transmitted video has higher quality than that
of composite video cable.
4
Use a composite video cable to connect a TV with
composite video input jack or a player with composite
video output jack.
r When a component video cable is used for
connecting the unit and the player, the unit and TV
must also be connected with a component video
cable.
Composite video cable
To Next Page
