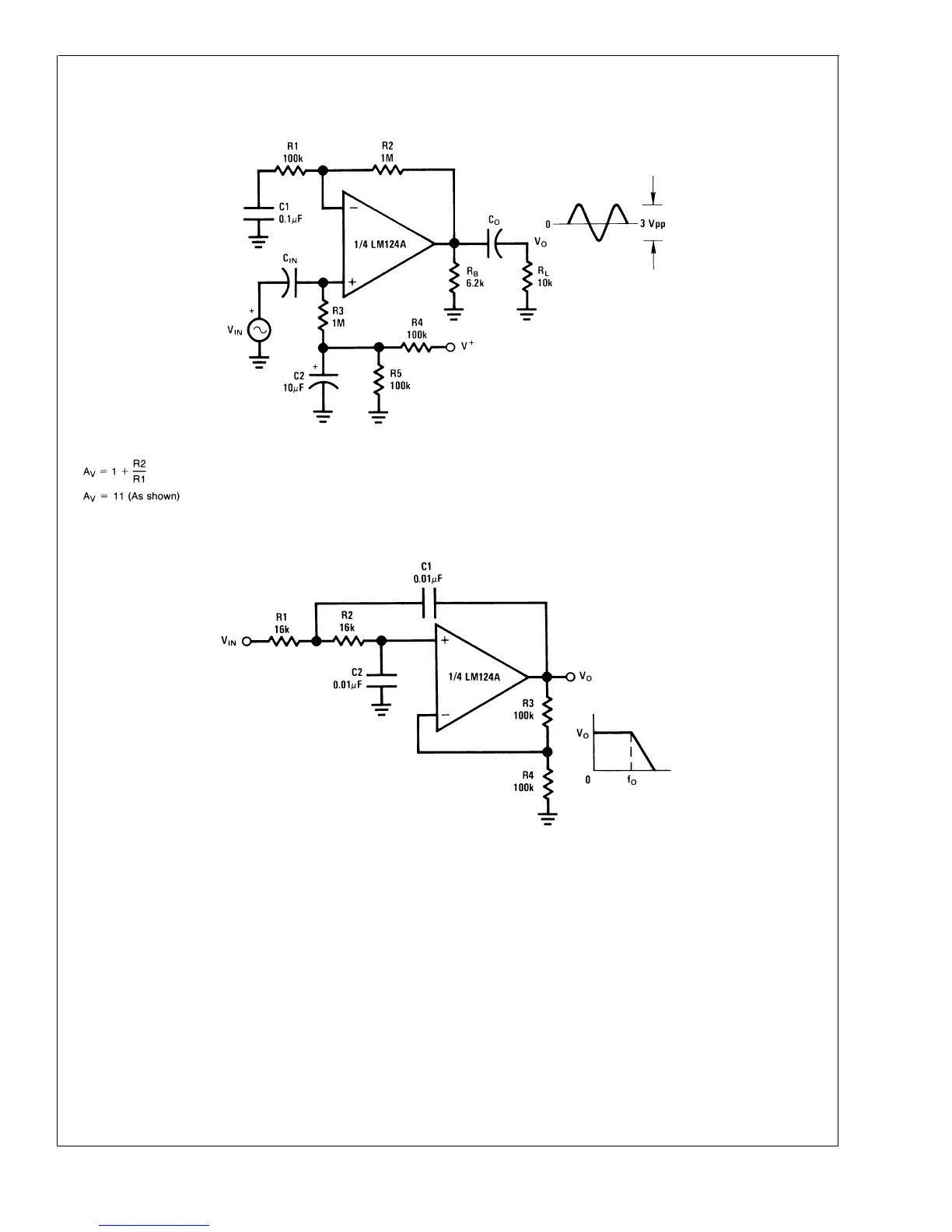

Typical Single-Supply Applications (V
+
= 5.0 V
DC
) (Continued)
AC Coupled Non-Inverting Amplifier
DS009299-25
DC Coupled Low-Pass RC Active Filter
DS009299-26
f
O
= 1 kHz
Q=1
A
V
=2
LM124/LM224/LM324/LM2902
www.national.com15
