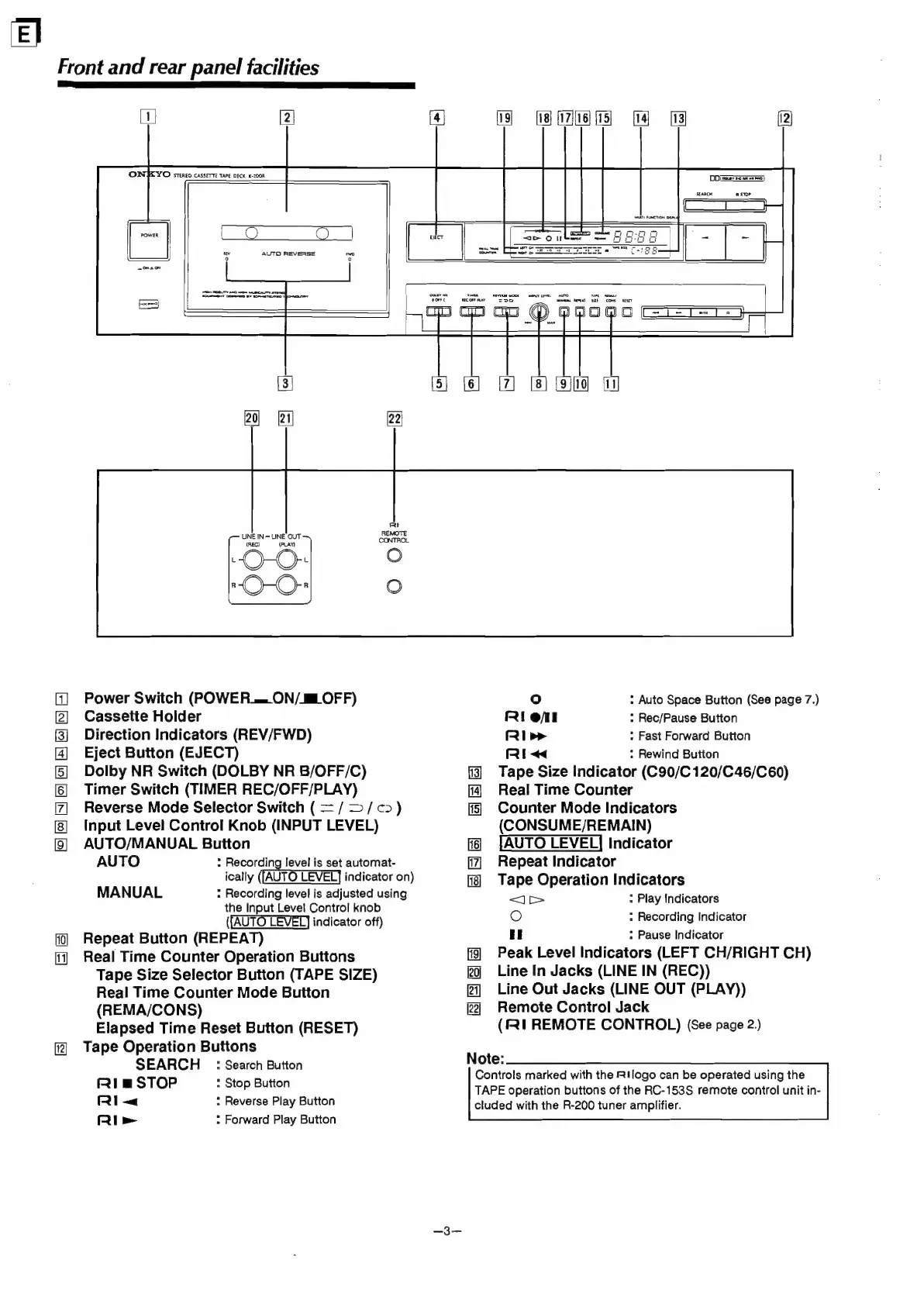

Front and rear panel facilities
a
ONEYO steato cassertz TAPE DECK K-200R
[4] 19] — {ig} {r7i{te] (75] = fa) fits (l2]
|
Sic aaa eae
aro mvened
: :
=
UNE IN — UNE OUT
(REC) (PAY)
‘O-O
O-O
Power Switch (POWER .=ON/_l OFF)
Cassette Hoider
Direction Indicators (REV/FWD)
Eject Button (EJECT)
Dolby NR Switch (DOLBY NR B/OFF/C)
Timer Switch (TIMER REC/OFF/PLAY)
Reverse Mode Selector Switch (= / >/c>)
Input Level Control Knob (INPUT LEVEL)
AUTO/MANUAL Button
AUTO : Recording level i tomat-
ically (AUTO LEVEL] indicator on)
MANUAL : Recording level is adjusted using
the Input Level Control knob
({AUTO LEVEL] indicator off)
Repeat Button (REPEAT)
Real Time Counter Operation Buttons
Tape Size Selector Button (TAPE SIZE)
Real Time Counter Mode Button
(REMA/CONS)
Elapsed Time Reset Button (RESET)
Tape Operation Buttons
SEARCH :: Search Button
SA ee 2 el &
Be
Rima STOP ! Stop Button
Ri~—« : Reverse Play Button
Ri» : Forward Play Button
5| {6} [7] [8] [9][to fit
° : Auto Space Button (See page 7.)
RI eI : Rec/Pause Button
FR1 >> : Fast Forward Button
RI << : Rewind Button
Tape Size Indicator (C90/C 120/C46/C60)
Real Time Counter
Counter Mode Indicators
(CONSUME/REMAIN)
Indicator
Repeat Indicator
Tape Operation Indicators
<Jc : Play Indicators
Oo : Recording Indicator
i : Pause Indicator
Peak Level Indicators (LEFT CH/RIGHT CH)
Line In Jacks (LINE IN (REC))
Line Out Jacks (LINE OUT (PLAY))
Remote Control Jack
(RIREMOTE CONTROL) (See page 2.)
al el
Bae
RES a
Note:
Controls marked with the R!logo can be operated using the
TAPE operation buttons of the RC-153S remote control unit in-
cluded with the R-200 tuner amplifier.
-3-
