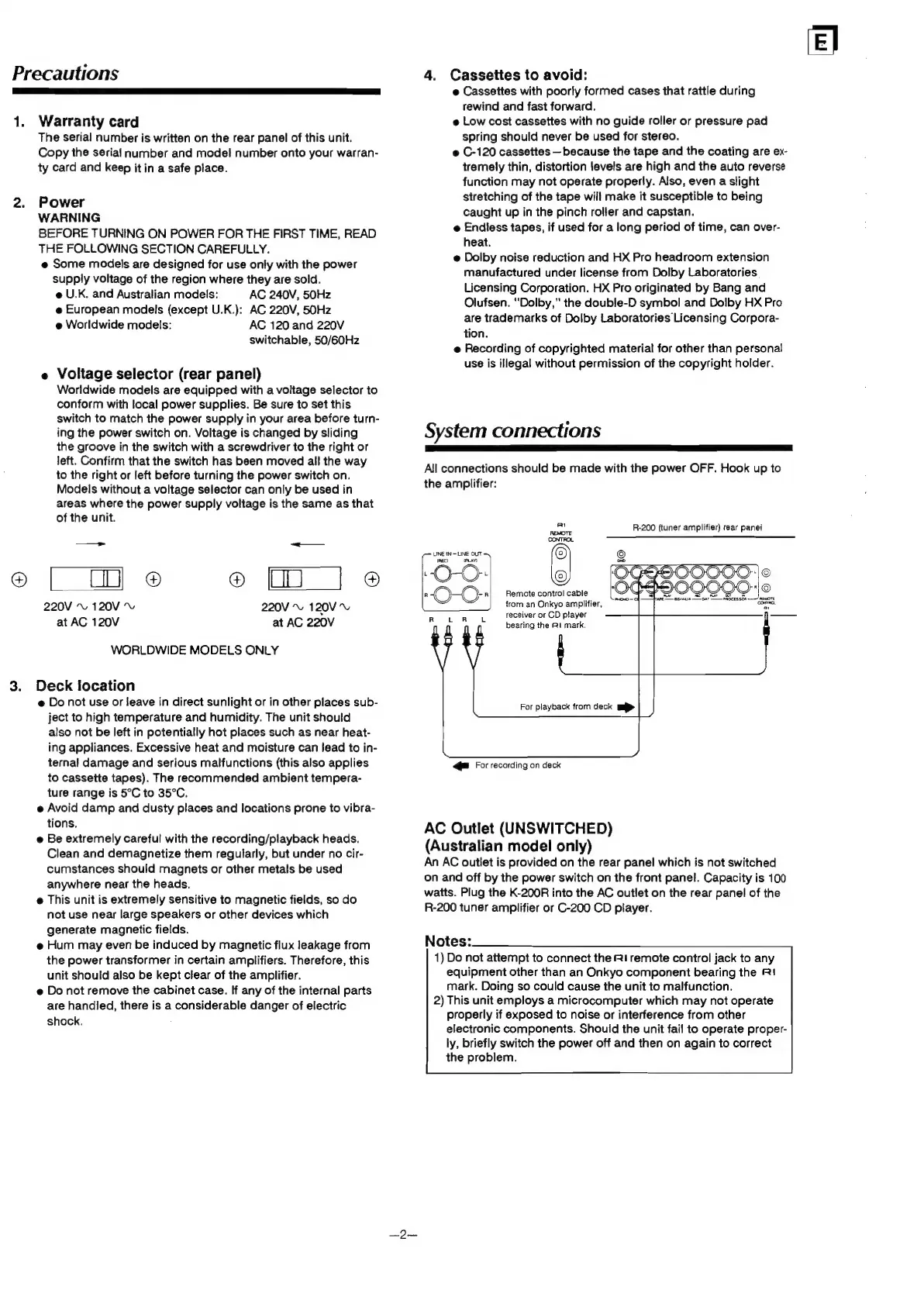

Precautions
1. Warranty card
The serial number is written on the rear panel of this unit.
Copy the serial number and model number onto your warran-
ty card and keep it in a safe place.
Power
WARNING
BEFORE TURNING ON POWER FOR THE FIRST TIME, READ
THE FOLLOWING SECTION CAREFULLY.
e@ Some models are designed for use only with the power
supply voltage of the region where they are sold.
e U.K. and Australian models: AC 240V, 50Hz
e@ European models (except U.K.): AC 220V, 50Hz
e Worldwide models: AC 120 and 220V
switchable, 50/60Hz
e Voltage selector (rear panel)
Worldwide models are equipped with a voltage selector to
conform with local power supplies. Be sure to set this
switch to match the power supply in your area before turn-
ing the power switch on. Voltage is changed by sliding
the groove in the switch with a screwdriver to the right or
left. Confirm that the switch has been moved all the way
to the right or left before turning the power switch on.
Models without a voltage selector can only be used in
areas where the power supply voltage is the same as that
of the unit.
® | Ul @ ® LO | @
220V ~~ 120V ‘v 220V Vv 120V'~
at AC 120V at AC 220V
WORLDWIDE MODELS ONLY
Deck location
e@ Do not use or leave in direct sunlight or in other places sub-
ject to high temperature and humidity. The unit should
also not be left in potentially hot places such as near heat-
ing appliances. Excessive heat and moisture can lead to in-
ternal damage and serious malfunctions (this also applies
to cassette tapes). The recommended ambient tempera-
ture range is 5°C to 35°C.
e@ Avoid damp and dusty places and locations prone to vibra-
tions.
e Be extremely careful with the recording/playback heads.
Clean and demagnetize them regularly, but under no cir-
cumstances should magnets or other metals be used
anywhere near the heads.
@ This unit is extremely sensitive to magnetic fields, so do
not use near large speakers or other devices which
generate magnetic fields.
@ Hum may even be induced by magnetic flux leakage from
the power transformer in certain amplifiers. Therefore, this
unit should also be kept clear of the amplifier.
e@ Do not remove the cabinet case. If any of the internal parts
are handled, there is a considerable danger of electric
shock.
Cassettes to avoid:
e@ Cassettes with poorly formed cases that rattle during
rewind and fast forward.
@ Low cost cassettes with no guide roller or pressure pad
spring should never be used for stereo.
e C-120 cassettes — because the tape and the coating are ex-
tremely thin, distortion levels are high and the auto reverse
function may not operate properly. Also, even a slight
stretching of the tape will make it susceptible to being
caught up in the pinch roller and capstan.
e Endless tapes, if used for a long period of time, can over-
heat.
@ Dolby noise reduction and HX Pro headroom extension
manufactured under license from Dolby Laboratories
Licensing Corporation. HX Pro originated by Bang and
Olufsen. “Dolby,” the double-D symbol and Dolby HX Pro
are trademarks of Dolby Laboratories Licensing Corpora-
tion.
e Recording of copyrighted material for other than personal
use is illegal without permission of the copyright holder.
System connections
All connections should be made with the power OFF. Hook up to
the amplifier:
R-200 (tuner amplifier) rear panei
UNE IN-LINE OUT.
ran
Ol
Remote control cable
from an Onkyo amplifier,
receiver or CD player
bearing the RI mark.
a=
For playback from deck mai>
@™ For recording on deck
AC Outlet (UNSWITCHED)
(Australian model only)
An AC outlet is provided on the rear panel which is not switched
on and off by the power switch on the front panel. Capacity is 100
watts. Plug the K-200R into the AC outlet on the rear panel of the
R-200 tuner amplifier or C-200 CD player.
Notes:
1) Do not attempt to connect the RI remote control jack to any
equipment other than an Onkyo component bearing the RI
mark. Doing so could cause the unit to malfunction.
2) This unit employs a microcomputer which may not operate
properly if exposed to noise or interference from other
electronic components. Should the unit fail to operate proper-
ly, briefly switch the power off and then on again to correct
the problem.
