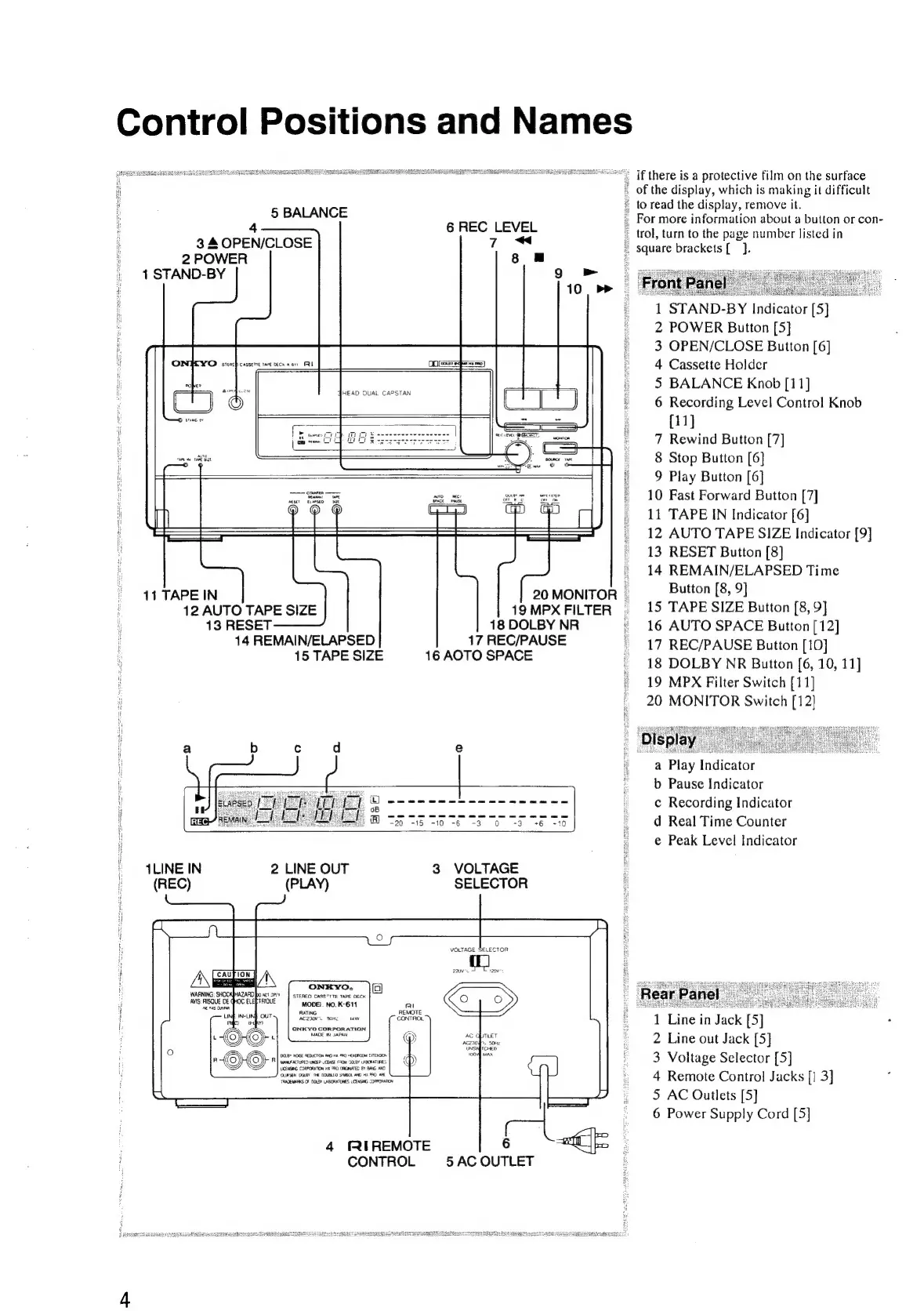

Control Positions and Names
“> If there is a protective film on the surface
of the display, which is making it difficult
to read the display, remove it.
For more information about a button or con-
trol, turn to the page number listed in
square brackets [_ ].
5 BALANCE
4 6 REC LEVEL
3 4 OPEN/CLOSE 7 «
: 2 POWER
: 1 STAND-BY
1 STAND-BY Indicator [5]
2 POWER Button [5]
3 OPEN/CLOSE Button [6]
» 4 Cassette Holder
. 5 BALANCE Knob [11]
- 6 Recording Level Control Knob
[11]
7 Rewind Button [7]
8 Stop Button [6]
9 Play Button [6]
10 Fast Forward Button [7]
; 11 TAPE IN Indicator [6]
SS _ 12 AUTO TAPE SIZE Indicator [9]
© 13 RESET Button [8]
HEAD DUAL CAPSTAN
14 REMAIN/ELAPSED Time
11 TAPE IN 20MONITOR _ Button [8, 9]
12 AUTO TAPE SIZE 19MPXFILTER 15 TAPE SIZE Button [8,9]
13 RESET 18D0LBYNR/ 16 AUTO SPACE Button [12]
14 REMAIN/ELAPSED 17 REC/PAUSE bas
1STAPESIZE 16AOTO SPACE p AU REGE SUSE puren lt
18 DOLBY NR Button [6, 10, 11]
19 MPX Filter Switch [11]
20 MONITOR Switch [12]
a Play Indicator
b Pause Indicator
c Recording Indicator
d Real Time Counter
e Peak Level Indicator
{LINE IN 2 LINE OUT 3 VOLTAGE
(REC) (PLAY) SELECTOR
VOLTAGE SELECTOR
po act 29
AVIS: RISQUE DE GHOC ELEPTRIQUE
NE PAS CWVRIR
1 Line in Jack [5]
2 Line out Jack [5]
3 Voltage Selector [5]
4 Remote Control Jacks [! 3]
5 AC Outlets [5]
6 Power Supply Cord [5]
4 fRIREMOTE 6
CONTROL 5 AC OUTLET
