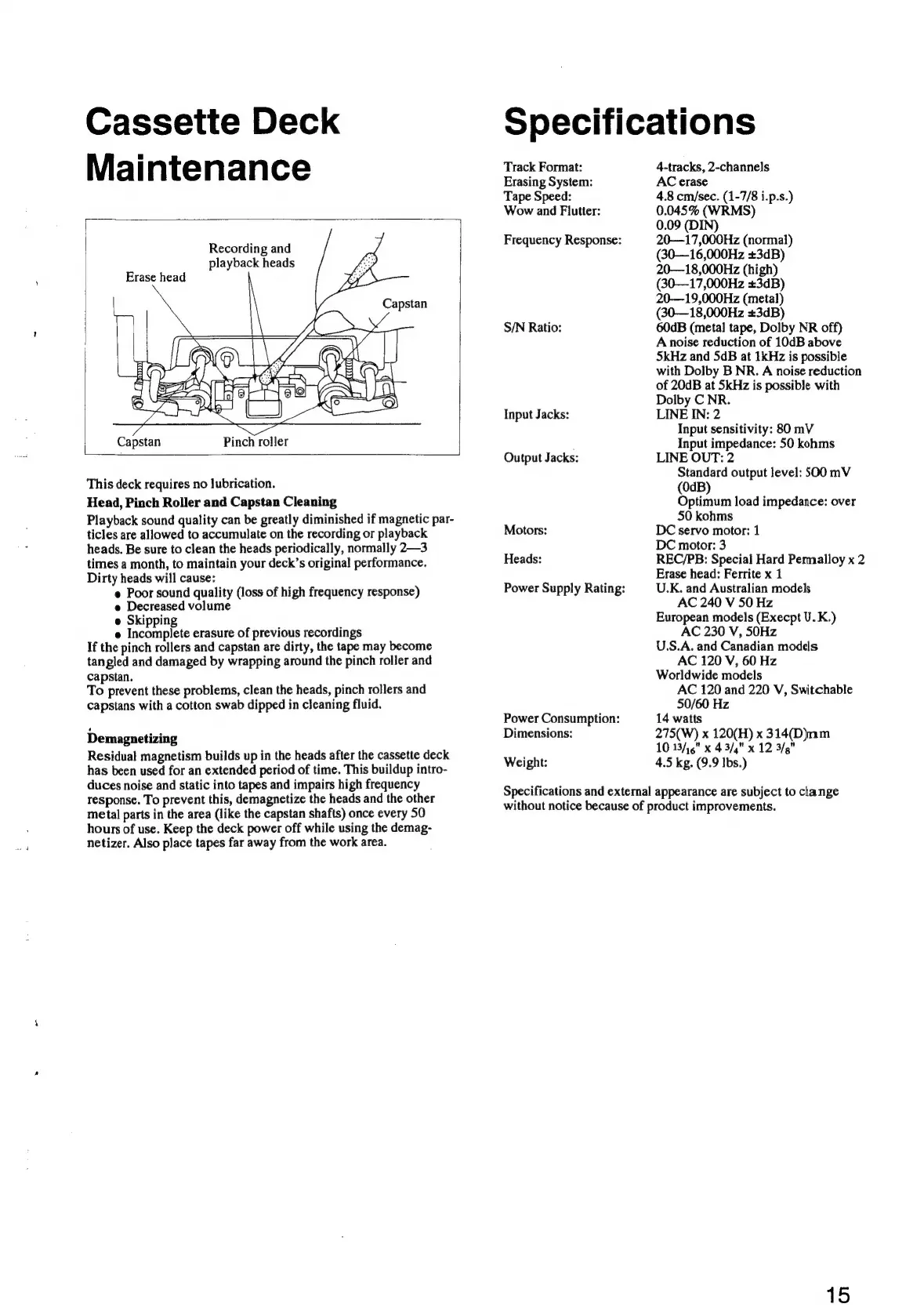

Onkyo K-611 User Manual

Cassette Deck
Maintenance
Recording and
playback heads
Erase head
Capstan
-
5)
ine
segue
Zain
ae
a
Capstan Pinch roller
This deck requires no lubrication.
Head, Pinch Roller and Capstan Cleaning
Playback sound quality can be greatly diminished if magnetic par-
ticles are allowed to accumulate on the recording or playback
heads. Be sure to clean the heads periodically, normally 2—3
times a month, to maintain your deck’s original performance.
Dirty heads will cause:
e Poor sound quality (loss of high frequency response)
e Decreased volume
e Skipping
e Incomplete erasure of previous recordings
If the pinch rollers and capstan are dirty, the tape may become
tangled and damaged by wrapping around the pinch roller and
capstan.
To prevent these problems, clean the heads, pinch rollers and
capstans with a cotton swab dipped in cleaning fluid.
Demagnetizing
Residual magnetism builds up in the heads after the cassette deck
has been used for an extended period of time. This buildup intro-
duces noise and static into tapes and impairs high frequency
response. To prevent this, demagnetize the heads and the other
metal parts in the area (like the capstan shafts) once every 50
hours of use. Keep the deck power off while using the demag-
netizer. Also place tapes far away from the work area.
Specifications
Track Format:
Erasing System:
Tape Speed:
Wow and Flutter:
Frequency Response:
S/N Ratio:
Input Jacks:
Output Jacks:
Motors:
Heads:
Power Supply Rating:
Power Consumption:
Dimensions:
Weight:
4-tracks, 2-channels
AC erase
4.8 cm/sec. (1-7/8 i.p.s.)
0.045% (WRMS)
0.09 (DIN)
20—17,000Hz (normal)
(30—16,000Hz +3dB)
20—18,000Hz (high)
(30—17,000Hz +3dB)
20—19,000Hz (metal)
(30—18,000Hz +3dB)
60dB (metal tape, Dolby NR off)
A noise reduction of 10dB above
SkHz and SdB at 1kHz is possible
with Dolby B NR. A noise reduction
of 20dB at SkHz is possible with
Dolby C NR.
LINE IN: 2
Input sensitivity: 80 mV
Input impedance: 50 kohms
LINE OUT: 2
Standard output level: 500 mV
(OdB)
Optimum load impedance: over
50 kohms
DC servo motor: 1
DC motor: 3
REC/PB: Special Hard Permalloy x 2
Erase head: Ferrite x 1
U.K. and Australian models
AC 240 V 50 Hz
European models (Execpt U.K.)
AC 230 V, 50Hz
U.S.A. and Canadian modds
AC 120 V, 60 Hz
Worldwide models
AC 120 and 220 V, Switchable
50/60 Hz
14 watts
275(W) x 120(H) x 314(D)mm
10 13/46" x4 3/4" x12 3/,"
4.5 kg. (9.9 Ibs.)
Specifications and external appearance are subject to clange
without notice because of product improvements.
