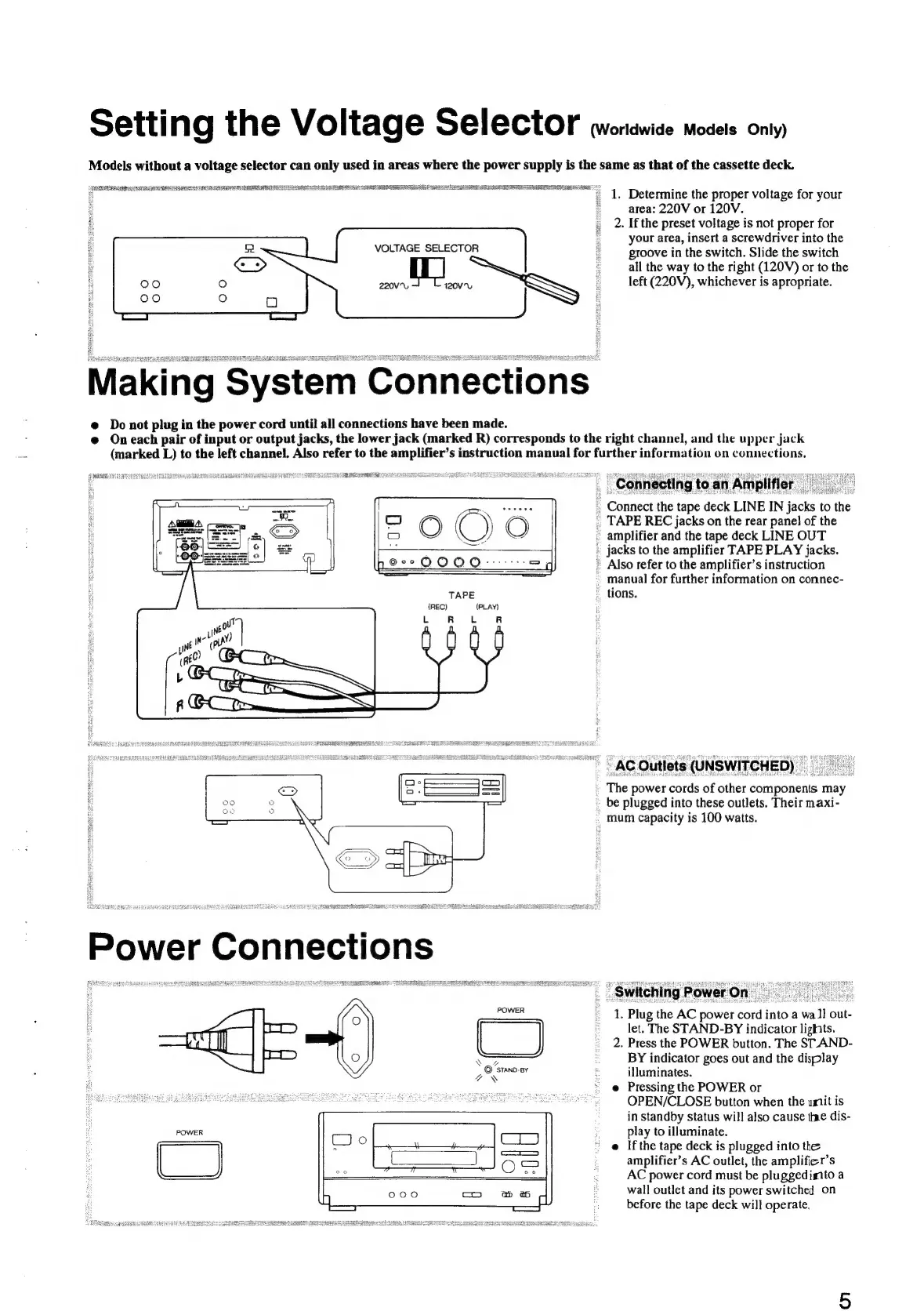

Onkyo K-611 User Manual

Setting the Voltage Selector woriswise models oniy)
Models without a voltage selector can only used in areas where the power supply is the same as that of the cassette deck.
SUR Re a ram a I gS NS AER UG SUSI SESS TEP BOAT EET
1. Determine the proper voltage for your
area: 220V or 120V.
2. If the preset voltage is not proper for
your area, insert a screwdriver into the
groove in the switch. Slide the switch
all the way to the right (120V) or to the
left (220V), whichever is apropriate.
VOLTAGE SELECTOR
cara se aie
Making
System
Connections
@ Do not plug in the power cord until all connections have been made.
@ Oneach pair of input or output jacks, the lower jack (marked R) corresponds to the right channel, and the upper jack
(marked L) to the left channel. Also refer to the amplifier’s instruction manual for further information on connections.
ELSE RANE ART See I RSE ES SRE ae ME URES A ae ES
. Connect the tape deck LINE IN jacks to the
_ TAPE REC jacks on the rear panel of the
. amplifier and the tape deck LINE OUT
i jacks to the amplifier TAPE PLAY jacks.
© Also refer to the amplifier’s instruction
- manual for further information on connec-
tions.
{REC) (PLAY)
The power cords of other components may
: be plugged into these outlets. Their maxi-
mum capacity is 100 watts.
Power Connections
ee : ¥ ene SES a ee eh ete
"Switching Power On
“aN
ROMER - 1. Plug the AC power cord into a wal out-
: let. The STAND-BY indicator lights.
LJ _ 2. Press the POWER button. The SLTAND-
=a fe Naas __ BY indicator goes out and the display
2 STAND EY : illuminates.
e Pressing the POWER or
OPEN/CLOSE button when the unit is
in standby status will also cause thre dis-
play to illuminate.
e Ifthe tape deck is plugged into the
amplifier’s AC outlet, the amplifier’s
AC power cord must be pluggedisto a
wall outlet and its power switched on
before the tape deck will operate,
POWER
