Onkyo LS-B50 User Manual

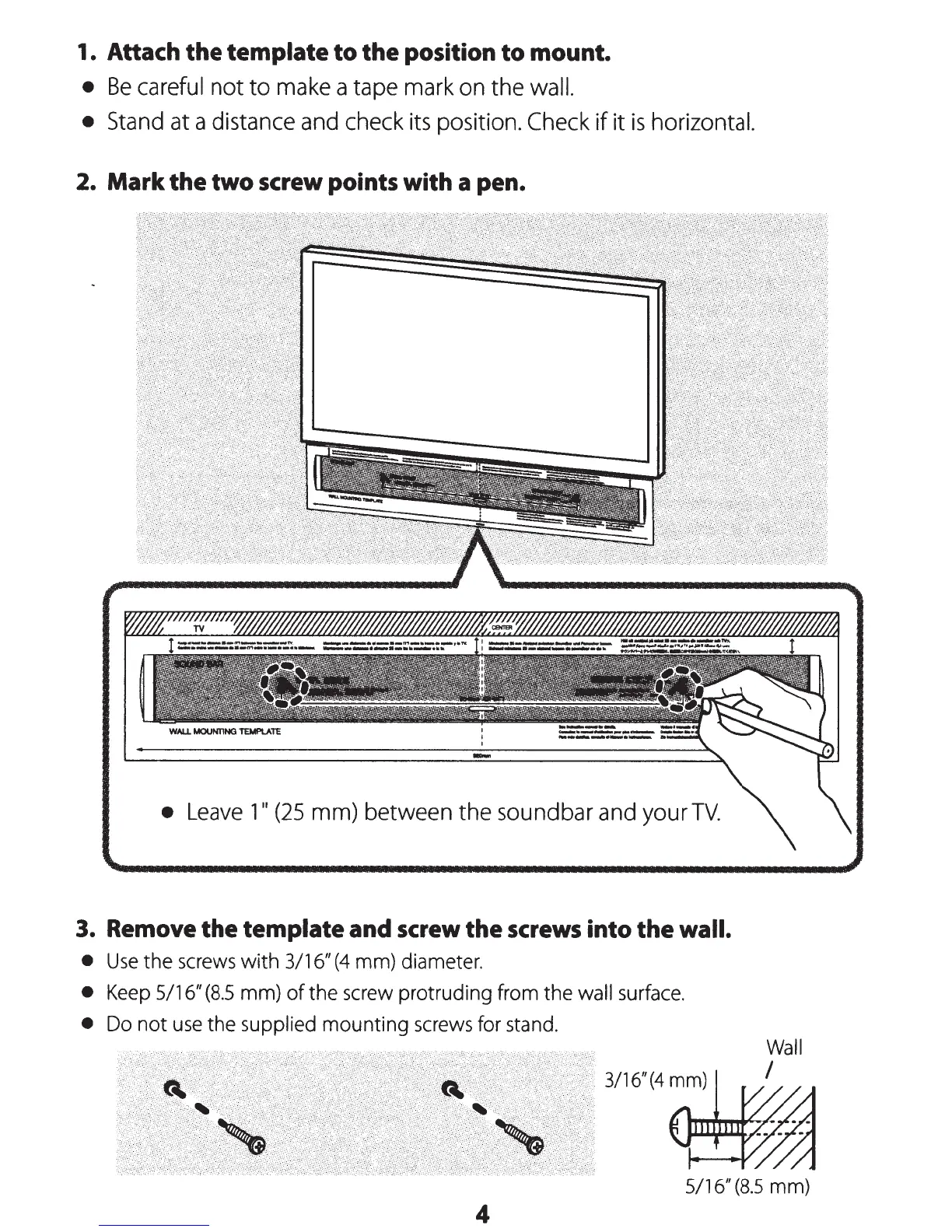

1. Attach the template to the position to mount.
• Be careful not to make a tape mark on the wall.
• Stand at a distance and check its position. Check if it is horizontal.
2. Mark the two screw points with a pen.
• Leave 1" (25 mm) between the sound bar and your TV.
3. Remove the template and screw the screws into the wall.
• Use the screws with 3/16" (4 mm) diameter.
•
Keep 5/16" (8.5 mm) of the screw protruding from the wall surface.
• Do not use the supplied mounting screws for stand.
3/16"(4 mm)
Wall
I
5/16" (8.5 mm)
4

Onkyo LS-B50 Specifications

General

Audio decoders	Dolby Digital
RMS rated power	32 W
Audio output channels	- channels
Impedance	8 Ω
Tweeter diameter	30 mm
Crossover frequency	20000 Hz
Mid-range driver diameter	70 mm
Number of tweeter drivers	2
Number of mid-range drivers	6
Signal-to-Noise Ratio (SNR)	80 dB
Subwoofer type	Active subwoofer
Subwoofer included	Yes
Subwoofer sensitivity	100 dB
Subwoofer frequency range	20 - 120 Hz
Receiver included	-
Product color	Black
Apple docking compatibility	Not supported
Set weight	13500 g
Bluetooth version	2.1+EDR
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Package depth	658 mm
Package width	1018 mm
Package height	342 mm
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	3900 g
Subwoofer depth	269 mm
Subwoofer width	261 mm
Subwoofer height	337 mm
Dimensions (WxDxH)	909 x 96.3 x 95.5 mm
