Onkyo LS-B50 User Manual

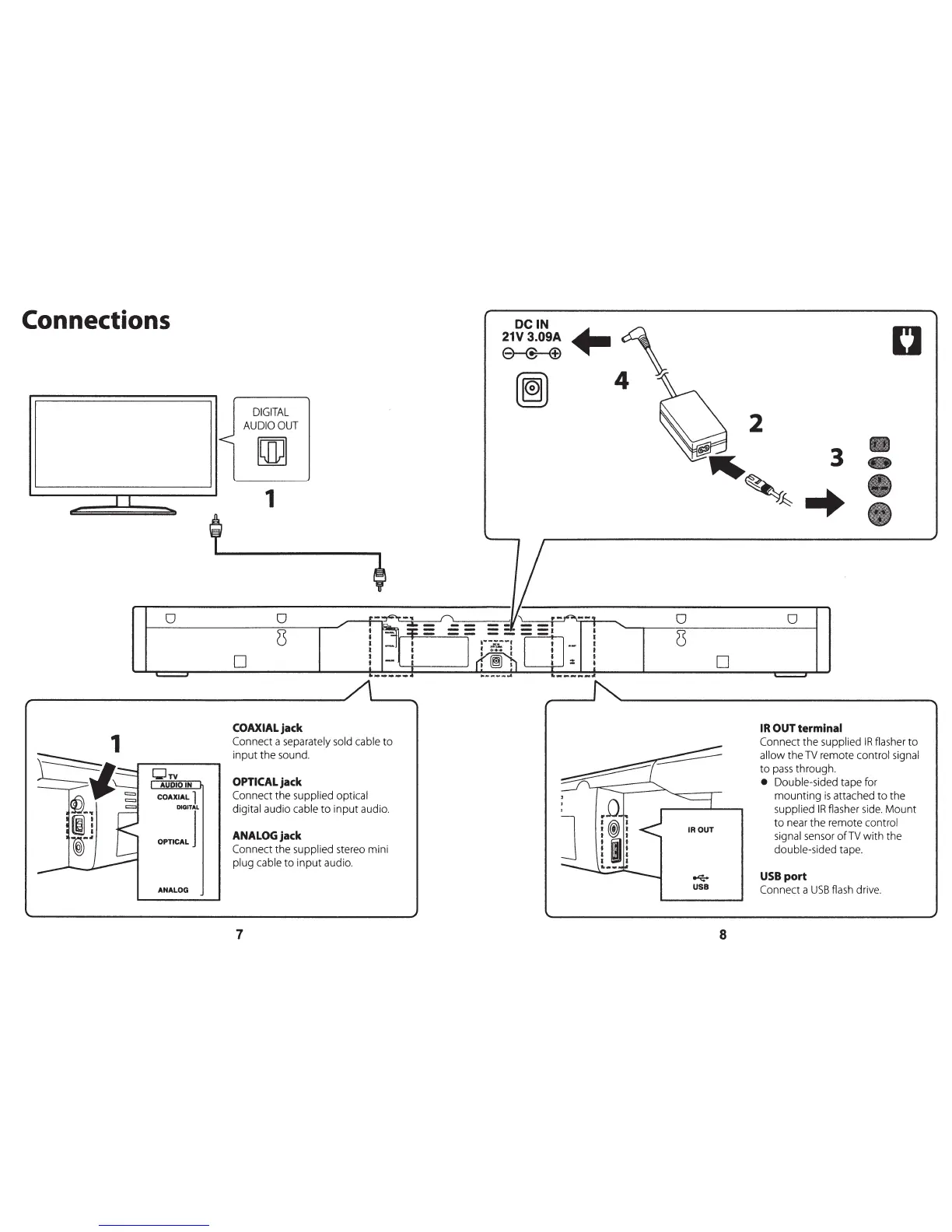

Connections
0
QTV
AUDIO IN
COAXIAL
l
DIGITAL
OPnCJ
ANALOG
DIGITAL
AUDIO OUT
1
0
D
COAXIAL jack
Connect a separately sold cable to
input the sound.
OPTICAL jack
Connect the supplied optical
digital audio cable
to input audio.
ANALOG jack
Connect the supplied stereo mini
plug cable
to input audio.
7
DC IN
21V3.09A ~ ~
e--®-<t> ~ • "
~ 4
0
D
8
-
0
IR OUT terminal
Connect the supplied IR flasher to
allow the TV remote control signal
to pass through.
• Double-sided tape for
mounting is attached to the
supplied
IR flasher side. Mount
to near the remote control
signal sensor
of TV with the
double-sided tape.
USB port
Connect a USB flash drive.

Onkyo LS-B50 Specifications

General

Audio decoders	Dolby Digital
RMS rated power	32 W
Audio output channels	- channels
Impedance	8 Ω
Tweeter diameter	30 mm
Crossover frequency	20000 Hz
Mid-range driver diameter	70 mm
Number of tweeter drivers	2
Number of mid-range drivers	6
Signal-to-Noise Ratio (SNR)	80 dB
Subwoofer type	Active subwoofer
Subwoofer included	Yes
Subwoofer sensitivity	100 dB
Subwoofer frequency range	20 - 120 Hz
Receiver included	-
Product color	Black
Apple docking compatibility	Not supported
Set weight	13500 g
Bluetooth version	2.1+EDR
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Package depth	658 mm
Package width	1018 mm
Package height	342 mm
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	3900 g
Subwoofer depth	269 mm
Subwoofer width	261 mm
Subwoofer height	337 mm
Dimensions (WxDxH)	909 x 96.3 x 95.5 mm
