Onkyo LS-B50 User Manual

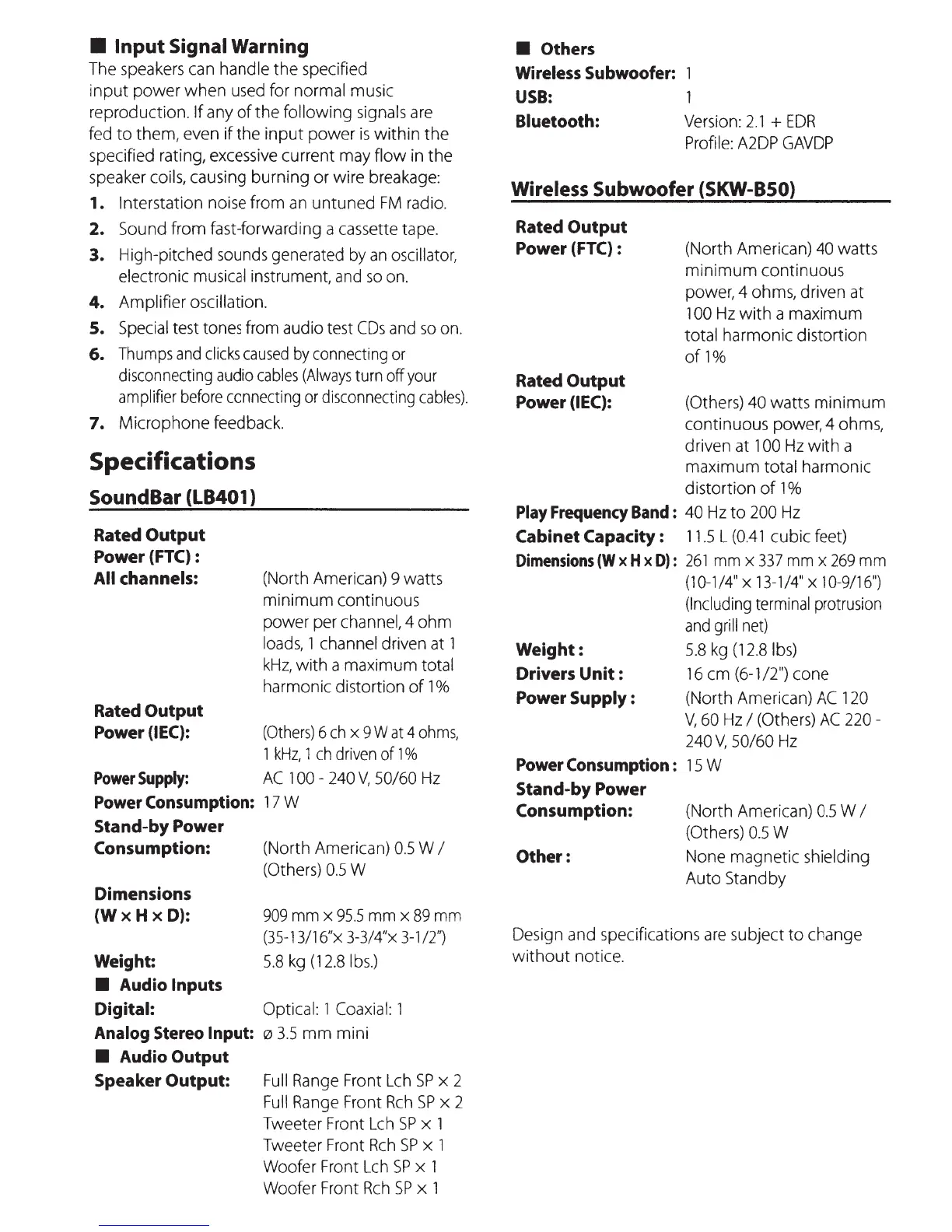

• Input Signal Warning
The speakers can handle the specified
input power when
used for normal music
reproduction. If
any of the following signals are
fed to them, even if the input power is within the
specified rating,
excessive current may flow in the
speaker coils, causing burning or wire breakage:
1. lnterstation noise from an untuned FM radio.
2. Sound from fast-forwarding a cassette tape.
3. High-pitched sounds generated by an oscillator,
electronic musical instrument, and so on.
4. Amplifier oscillation.
5. Special test tones from audio test COs and so on.
6. Thumps and clicks caused by connecting or
disconnecting audio cables (Always turn off your
amplifier before connecting or disconnecting cables).
7. Microphone feedback.
Specifications
SoundBar (LB401}
Rated Output
Power (FTC) :
All channels:
Rated
Output
Power (IEC):
(North American) 9 watts
minimum continuous
power
per channel, 4 ohm
loads, 1 channel driven at 1
kHz, with a maximum total
harmonic distortion of 1
o/o
(Others) 6 ch x 9 W at 4 ohms,
1 kHz, 1 ch driven of 1%
Power Supply: AC 1 00 - 240 V, 50160 Hz
Power Consumption: 1 7 W
Stand-by Power
Consumption:
Dimensions
(Wx H x D):
Weight:
• Audio Inputs
(North American) 0.5 WI
(Others) 0.5 W
909 mm x 95.5 mm x 89 mm
(35-13116"x 3-3/ 4"x 3-1 /2")
5.8 kg (12.8 lbs.)
Digital: Optical: 1 Coaxial: 1
Analog Stereo Input: 0 3.5 mm mini
• Audio Output
Speaker Output: Full Range Front Lch SP x 2
Full Range Front Rch SP x 2
Tweeter Front
Lch SP x 1
Tweeter Front
Rch SP x 1
Woofer Front
Lch SP x 1
Woofer Front
Rch SP x 1
• Others
Wireless Subwoofer:
USB:
Bluetooth: Version: 2.1 + EDR
Profile: A2DP GAVDP
Wireless Subwoofer (SKW-850}
Rated Output
Power (FTC) :
Rated
Output
Power (IEC):
(North American) 40 watts
minimum continuous
power, 4 ohms, driven at
100 Hz with a maximum
total harmonic distortion
of 1 o/o
(Others) 40 watts minimum
continuous power, 4
ohms,
driven at 100Hz with a
maximum total harmonic
distortion
of 1 o/o
Play Frequency Band: 40 Hz to 200 Hz
Cabinet Capacity: 11.5 L (0.41 cubic feet)
Dimensions (W x H x D): 261 mm x 337 mm x 269 mm
Weight:
Drivers Unit:
Power Supply :
(10-1 /4" X 13-1 /4" X 1 0-9/16")
(Including terminal protrusion
and grill net)
5.8 kg (12.8 lbs)
16 em (6-112") cone
(North American)
AC 120
V, 60 Hz I (Others) AC 220 -
240 V, 50160 Hz
Power Consumption : 15 W
Stand-by Power
Consumption:
(North American) 0.5 WI
(Others) 0.5 W
Other: None magnetic shielding
Auto Standby
Design and specifications are subject to change
without notice.

Onkyo LS-B50 Specifications

General

Audio decoders	Dolby Digital
RMS rated power	32 W
Audio output channels	- channels
Impedance	8 Ω
Tweeter diameter	30 mm
Crossover frequency	20000 Hz
Mid-range driver diameter	70 mm
Number of tweeter drivers	2
Number of mid-range drivers	6
Signal-to-Noise Ratio (SNR)	80 dB
Subwoofer type	Active subwoofer
Subwoofer included	Yes
Subwoofer sensitivity	100 dB
Subwoofer frequency range	20 - 120 Hz
Receiver included	-
Product color	Black
Apple docking compatibility	Not supported
Set weight	13500 g
Bluetooth version	2.1+EDR
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Package depth	658 mm
Package width	1018 mm
Package height	342 mm
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	3900 g
Subwoofer depth	269 mm
Subwoofer width	261 mm
Subwoofer height	337 mm
Dimensions (WxDxH)	909 x 96.3 x 95.5 mm
