Onkyo LS-B50 User Manual

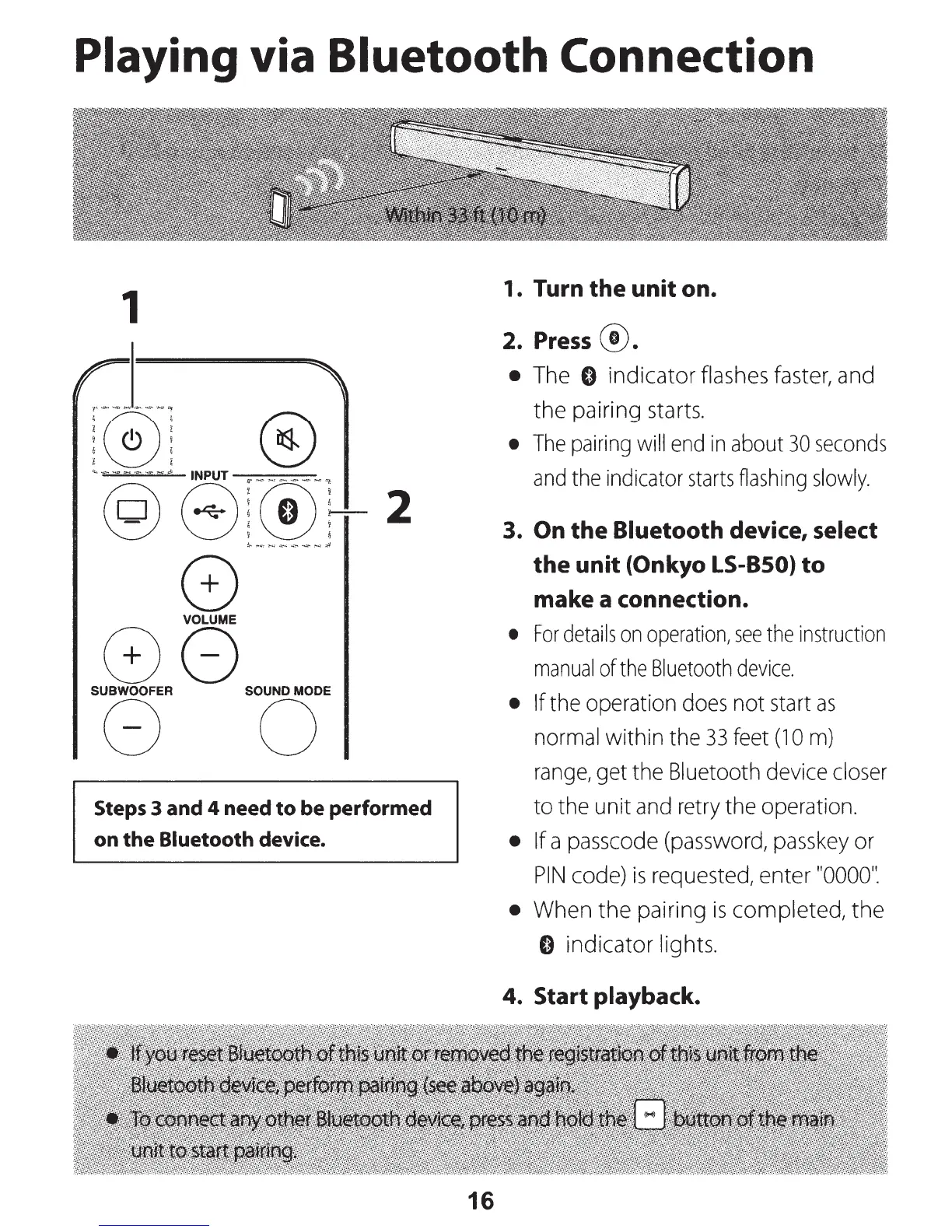

Playing via Bluetooth Connection
1
[G) @
·@- 8 ~-}- 2
8
VOLUME
88
SUBWOOFER SOUND MODE
8 0
Steps 3 and 4 need to be performed
on
the Bluetooth device.
16
1. Turn the unit on.
2.
Press@.
• The 0 indicator flashes faster, and
the pairing starts.
•
The pairing will end in about 30 seconds
and the indicator starts fiashing slowly.
3. On the Bluetooth device, select
the unit (Onkyo LS-850) to
make a connection.
• For details on operation, see the instruction
manual of the Bluetooth device.
• If the operation does not start as
normal within the 33 feet (10m)
range, get the Bluetooth device closer
to the unit and retry the operation.
• If a passcode (password, passkey or
PIN code) is requested, enter "0000".
• When the pairing is completed, the
0 indicator lights.
4. Start playback.

Onkyo LS-B50 Specifications

General

Audio decoders	Dolby Digital
RMS rated power	32 W
Audio output channels	- channels
Impedance	8 Ω
Tweeter diameter	30 mm
Crossover frequency	20000 Hz
Mid-range driver diameter	70 mm
Number of tweeter drivers	2
Number of mid-range drivers	6
Signal-to-Noise Ratio (SNR)	80 dB
Subwoofer type	Active subwoofer
Subwoofer included	Yes
Subwoofer sensitivity	100 dB
Subwoofer frequency range	20 - 120 Hz
Receiver included	-
Product color	Black
Apple docking compatibility	Not supported
Set weight	13500 g
Bluetooth version	2.1+EDR
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Package depth	658 mm
Package width	1018 mm
Package height	342 mm
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	3900 g
Subwoofer depth	269 mm
Subwoofer width	261 mm
Subwoofer height	337 mm
Dimensions (WxDxH)	909 x 96.3 x 95.5 mm
