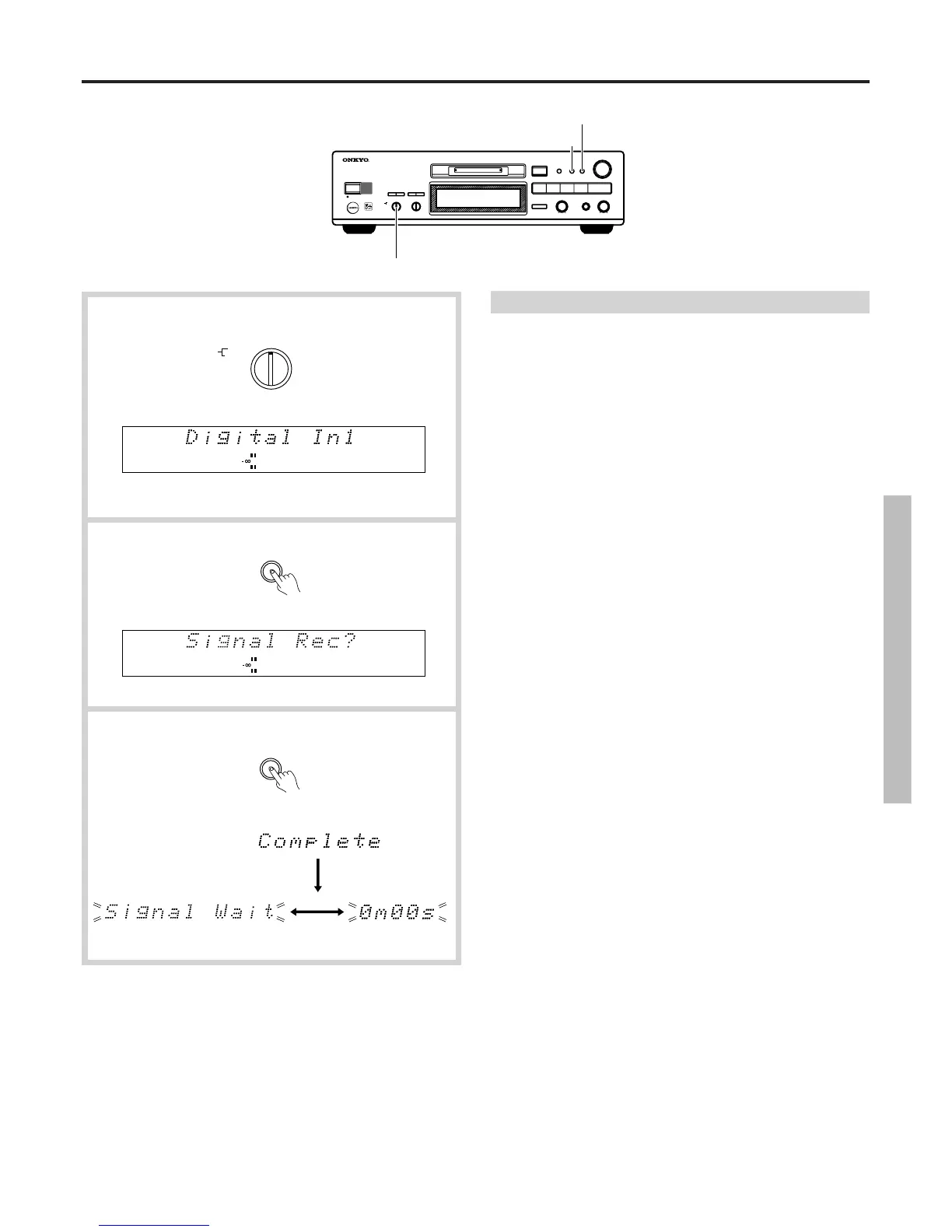

Signal Synchro recording
Even if your recording source is not Onkyo z-compatible, you can
perform synchronized recording.
1. When stopped, press the INPUT button until "Digital In1",
"Digital In2", "Digital In3", "A.In Stereo", "A.In Mono"
appears.
You can perform signal synchro recording with both digital and
analog recording sources.
2. Press the EDIT/NO button until "Signal Rec?" appears.
3. Press the YES button.
"Complete" appears, then the unit enters the Signal Wait mode.
Recording start as soon as the unit receivessignals from the
recording source while "Signal Wait" is displayed.
