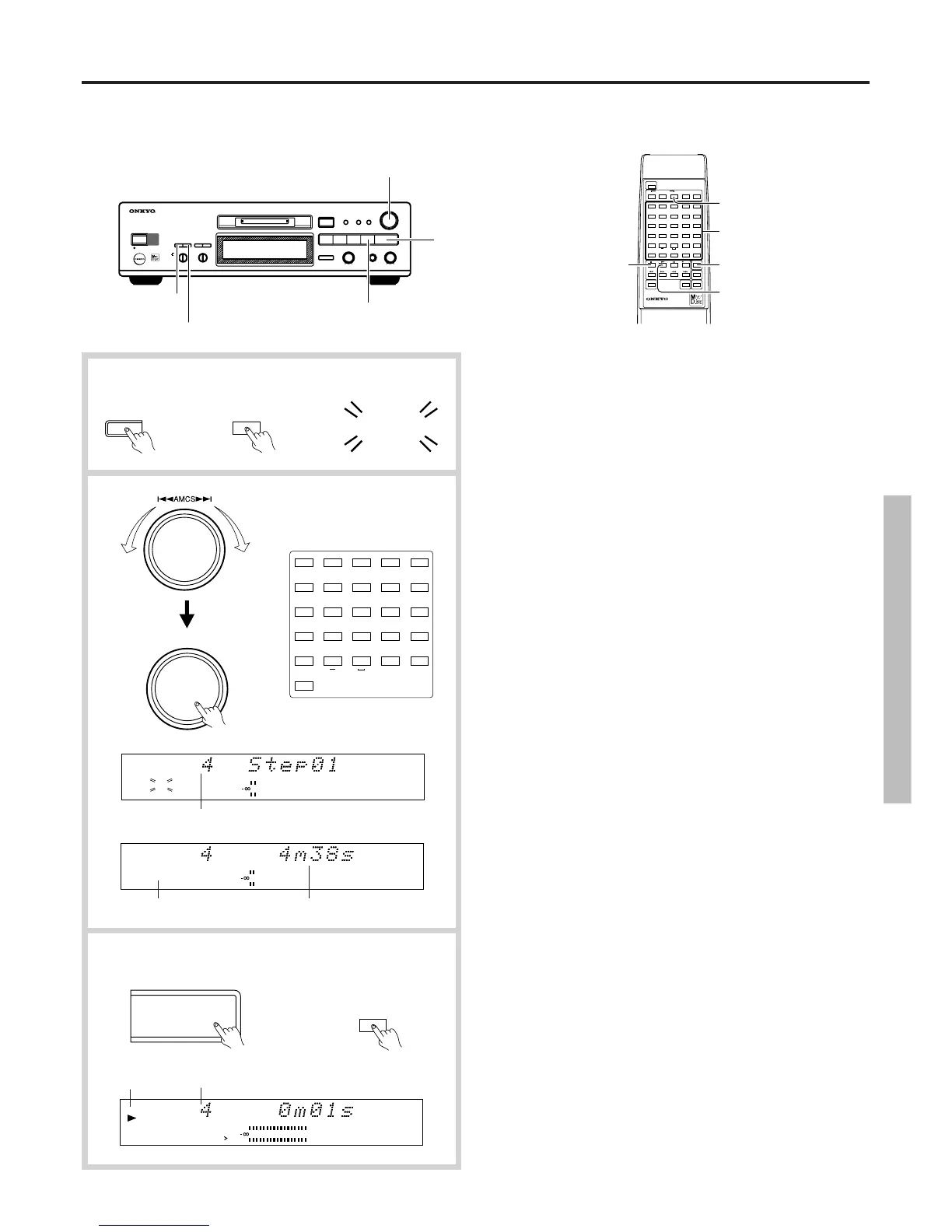

Using the program function (Memory play)
1. When the MD recorder is stopped, press the MEMORY button.
2. Using the AMCS knob, select the tracks in the order you want
to play.
Turn the AMCS knob until the track number you want to program
is displayed (the playing time of the track is displayed). Then, press
the AMCS knob to program the track.
To play a track numbered 26 or more...
Press the [>25] button first. Set a value for the 10th place and then
the 1st place using the number buttons in this order. ("0" can be
entered by pressing the [10] button.)
Ex.
To select the 30th track
[>25] + [3] + [10]
To select the 100th track
[>25] + [>25] + [1] + [10] + [10]
3. Press the s PLAY button (or the s button on the remote
controller) to start memory play.
When the playing of all programmed tracks is over, the MD
recorder stops while retaining the programmed tracks in memory.
Exiting the Memory play mode:
When the MD recorder is stopped, press the MEMORY button and
"MEMORY" disappears from the display. (Or, press the CONTINUE
button on the remote controller.)
Clearing the last track stored:
Press the STOP button, or the CLEAR button, when the Memory play
is stopped. The last track in memory is cleared.
To add tracks to the program:
First stop playing the program and then follow the procedure described
in step 2.
• You can program up to 25 tracks.
• If the total playing time of the programmed tracks exceeds 1000 minutes, "---m--s" will be displayed.
• Tracks with an extremely short playing time may not be programmed. If you attempt to do so, "Too Short" will be displayed.
TRACK
4
L
R
-40 -30 -20 -10 -4 -2 0
MEMORY
-
SYNCLEVEL
DIGITAL IN
1
(PUSH ENTER)
qAMCSw
f
r EJECT
DISPLAY EDIT / NO YES
g PAUSE e STOP s PLAY
d
PHONES LEVEL
PHONES
REC LEVEL
MAXMIN
MINIDISC RECORDER MD-2521
o REC
STANDBY
DIGITAL INPUT-2
STANDBY / ON
MEMORY CLEAR REPEAT RANDOM
INPUT TIMER
STEREO
MONO
ANALOG
DIGITAL-1
DIGITAL-2
DIGITAL-3
(COAXIAL)
OFF
REC PLAY
MAXMIN
DISC LOADING MECHANISM
3 DIGITAL INPUTS
z
c
x
e STOP
CLEAR

Onkyo MD-2521 Specifications

Recording Specifications

recording time stereo	Max. 74 min.
recording time mono	Max. 148 min.
number of revolutions	About 400 - 900 rpm

Audio Specifications

sampling frequency	44.1 kHz
number of channels	2 (stereo)
frequency response	10 Hz - 20 kHz (±0.5 dB)
signal to noise ratio	105 dB or more when playing

Power

power supply rating	AC 230 V, 50 Hz
power consumption	14 watts
output level	2.0 volts r.m.s.

Weight and Dimensions

dimensions	435 × 121 × 310 mm
dimensions (inches)	17-1/8" × 4-3/4" × 12-3/16"
weight	4.5 kg (9.9 lbs.)
