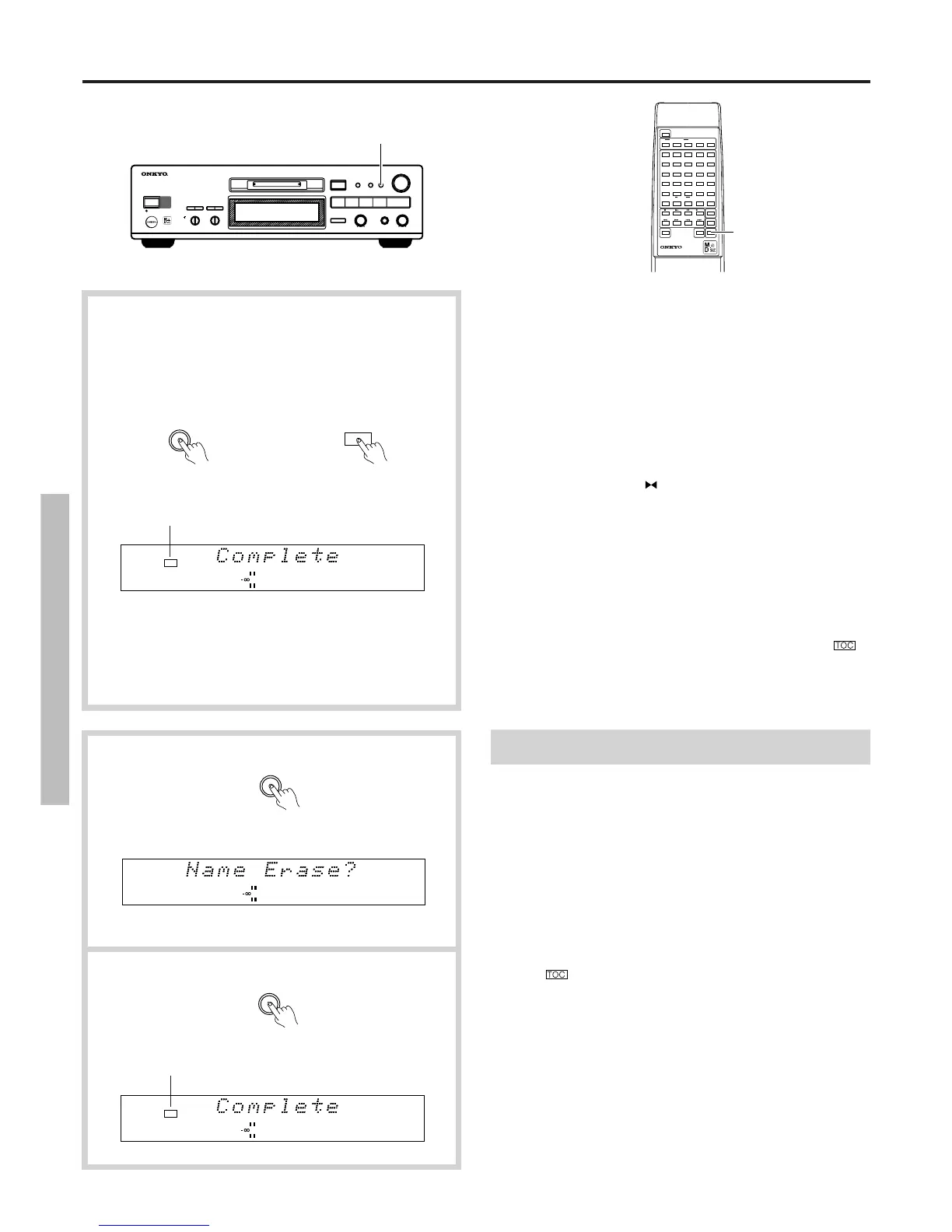

26
POWER
REMOTE CONTROL RC-339MD
CONTINUE
PLAY MODE
RANDOM MEMORY
REPEAT A-B
>25
A-SPACE M.SCAN
CLEAR
ENTER
NAME
SCROLL DISPLAY
1
A
2345
678910
11 12 13 14 15
16 17 18 19 20
21 22 23 24 25
BCDE
FGHI J
KLMNO
PQRST
UVWXY
Z
.,
/?!
()
REC
5
Lights when completed
EDIT / NO
YES
Lights when completed
Remote controller
NAME
YES
5. Press the YES button.
"Complete" appears in the display.
Or, with the remote controller, press the NAME button.
To correct the character entered...
After the above Step 2, move to the character you want to correct using
the d and f buttons (the character blinks), and then re-enter the
character you want.
To insert a character...
After the above Step 2, move the blinking cursor using the d and
f buttons to where you want to insert a character, turn the AMCS
knob counterclockwise until
flashes and then press that knob. The
cursor starts blinking, allowing the insertion of a character.
To erase a character...
After the above Step 2, move to the character you want to erase using
the d and f buttons (the cursor blinks) and then press the EDIT/
NO button or the CLEAR button on the remote controller.
Note:
The disc name or track name you entered will be stored when the
EJECT button or STANDBY/ON button is pressed next time. If
is lit or flashing in the display, which indicates that the information is
being stored, do not disconnect the power cord, turn off the main power
or apply strong vibrations to the MD recorder.
Erasing the disc name and all track names at one
time
1. Press the EDIT/NO button to display "Name Erase?".
When the MD recorder is stopped, press the EDIT/NO button
several times until "Name Erase?" appears in the display.
Note:
Once the disc name and all track names are erased, they cannot be
restored.
2. Press the YES button.
All track names and the disc name are erased.
Note:
When "Protected" is shown on the display, it indicates that the
MD's record protect hole is open. Before editing the MD, close the
record protect hole.
If the
indicator is lit or flashing, do not rock the unit or
unplug the power cord.
Naming a track or disc
1
2
5
DISC
231 45678910
11 12 13 14 15 16 17
L
R
-40 -30 -20 -10 -4 -2 0
-
SYNCLEVEL
DIGITAL IN
1
TOC
231 45678910
11 12 13 14 15 16
L
R
-40 -30 -20 -10 -4 -2 0
-
SYNCLEVEL
DIGITAL IN
1
(PUSH ENTER)
qAMCSw
f
r EJECT
DISPLAY EDIT / NO YES
g PAUSE e STOP s PLAY
d
PHONES LEVEL
PHONES
REC LEVEL
MAXMIN
MINIDISC RECORDER MD-2521
o REC
STANDBY
DIGITAL INPUT-2
STANDBY / ON
MEMORY CLEAR REPEAT RANDOM
INPUT TIMER
STEREO
MONO
ANALOG
DIGITAL-1
DIGITAL-2
DIGITAL-3
(COAXIAL)
OFF
REC PLAY
MAXMIN
DISC LOADING MECHANISM
3 DIGITAL INPUTS
b
TOC
231 45678910
11 12 13 14 15 16 17
L
R
-40 -30 -20 -10 -4 -2 0
-
SYNCLEVEL
DIGITAL IN
1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Onkyo MD-2521 and is the answer not in the manual?

Onkyo MD-2521 Specifications

Recording Specifications IconRecording Specifications
recording time stereoMax. 74 min.
recording time monoMax. 148 min.
number of revolutionsAbout 400 - 900 rpm
Audio Specifications IconAudio Specifications
sampling frequency44.1 kHz
number of channels2 (stereo)
frequency response10 Hz - 20 kHz (±0.5 dB)
signal to noise ratio105 dB or more when playing
Power IconPower
power supply ratingAC 230 V, 50 Hz
power consumption14 watts
output level2.0 volts r.m.s.
Weight and Dimensions IconWeight and Dimensions
dimensions435 × 121 × 310 mm
dimensions (inches)17-1/8" × 4-3/4" × 12-3/16"
weight4.5 kg (9.9 lbs.)
