Onkyo R-805x

19
Connecting the 300 ohm ribbon wire:
Connecting the coaxial cable:
1. With your fingernail or a small screw-
driver, press the stoppers outward and
remove the cover.
2. Remove the transformer wire A from slit
B and insert it into slit C.
3. Prepare the coaxial cable as shown in the
diagram.
Connect the 75/300 ohm antenna
adapter to the coaxial cable.
1 Insert the end of the cable.
2 Clamp it in place with pliers.
4. Re-install the cover.
Do not use the same antenna for both
FM and TV (or VCR) reception since the
FM and TV (or VCR) signals can inter-
fere with each other. If you must use a
common FM/TV (or VCR) antenna, use
a directional linkage type splitter.

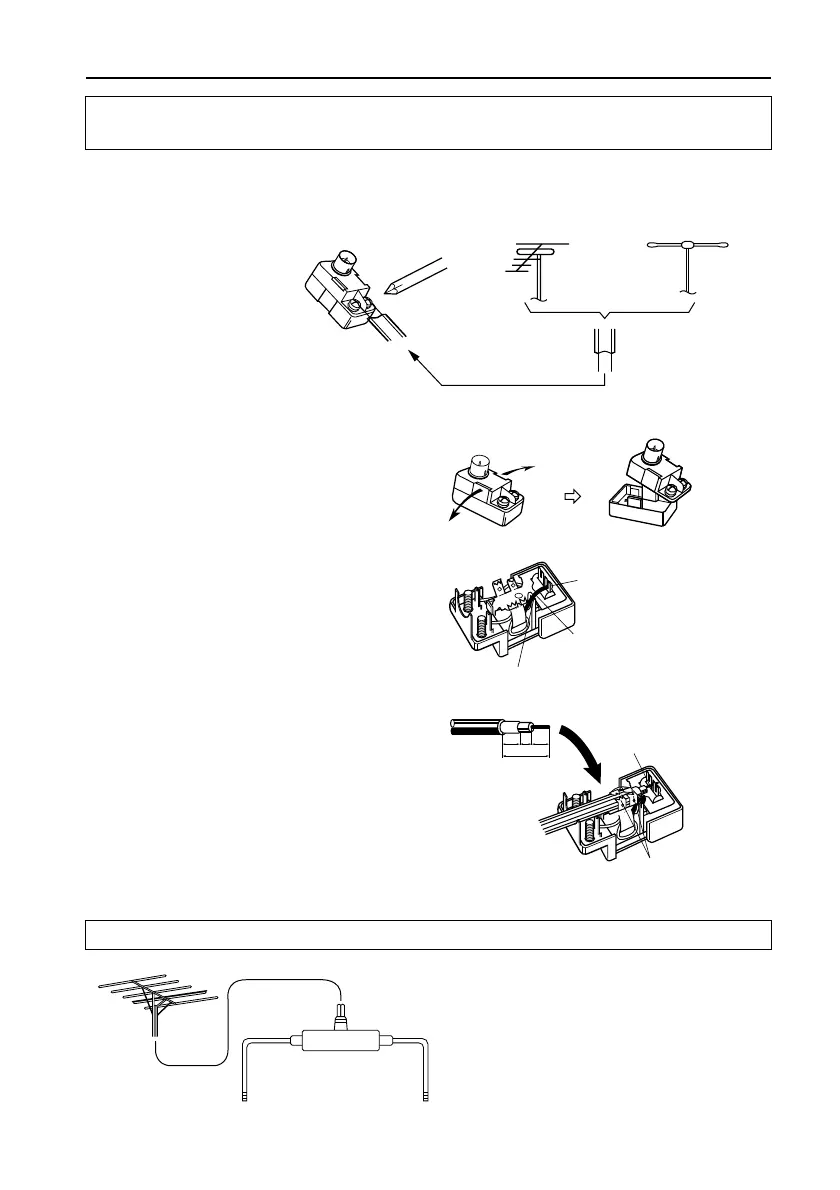

Connecting the antenna cable to the 75/300 ohm antenna adapter (Non-
U.S., Canadian and European models)
Outdoor
antenna
Indoor
antenna
300 ohms
ribbon wire
Loosen the screws and wrap the wire around
these screws. Then tighten the screws with a
screwdriver.
Slit C
Slit B
Wire A
1
2
✦
✦
✦
✦
✦
✦
✦
✦
✦
✦
✦
6
mm
3
mm
6
mm
15mm
Directional Iinkage
To R-805X To TV (or VCR)
Directional Iinkage
type splitter
