Sound bar connections to TVs
Unplug all other equipment before making any connections.
Note
•
To connect to TV, use OPTICAL IN (DIGITAL) jack or AUDIO IN (ANALOG) jack located at the rear of
the sound bar.
•
Refer to the instruction manual of the equipment to be connected.
•
Fully insert the plugs to avoid fuzzy noises.
•
When you use the RCA audio output terminal connection from a TV/DVD/Blu-ray Disc player, in some
cases, a small background noises may emit from the sound bar depending on the brand, model or
age of the equipment, and it is not a quality matter from the sound bar.
•
If the volume is continuously at low level, the sound bar will be automatically turned off.
Connecting a TV, or DVD player, etc.

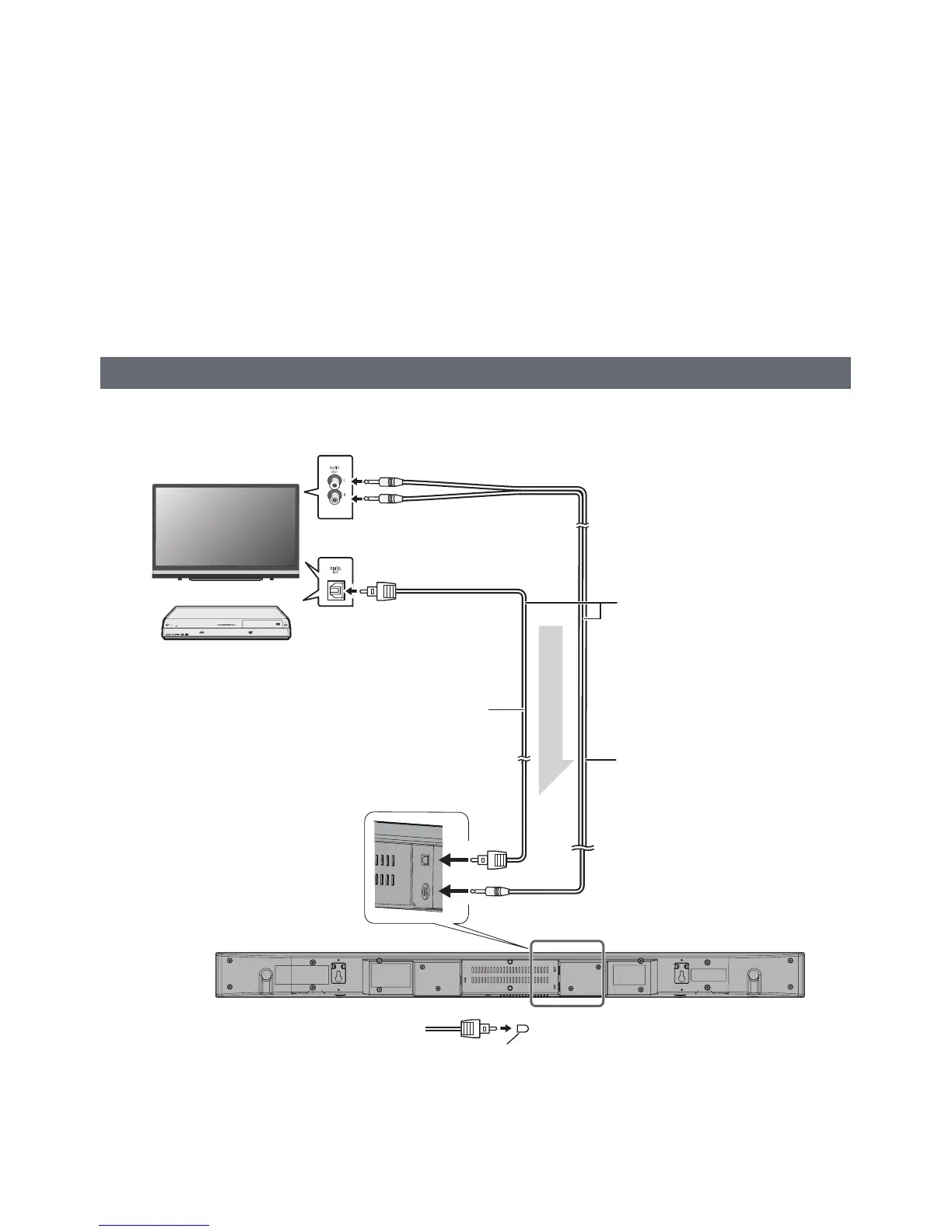

If the TV/monitor has an audio output, connect it to the OPTICAL IN (DIGITAL) jack or the AUDIO IN
(ANALOG) jack at the rear of the sound bar.
Optical digital
audio cable
Analog audio cable
(not supplied)
To AUDIO IN (ANALOG) jack
To OPTICAL IN (DIGITAL) jack
Audio signal
To digital audio
output terminal
To audio output terminals
TV
or
Blu-ray/DVD player/
Digital tuner
Rear panel of sound bar
Cap
Remove the cap of the optical digital
audio cable before connecting.
Choose an audio
connection that matches
your TV, and then make the
connection.
