Onkyo TA-6510 User Manual

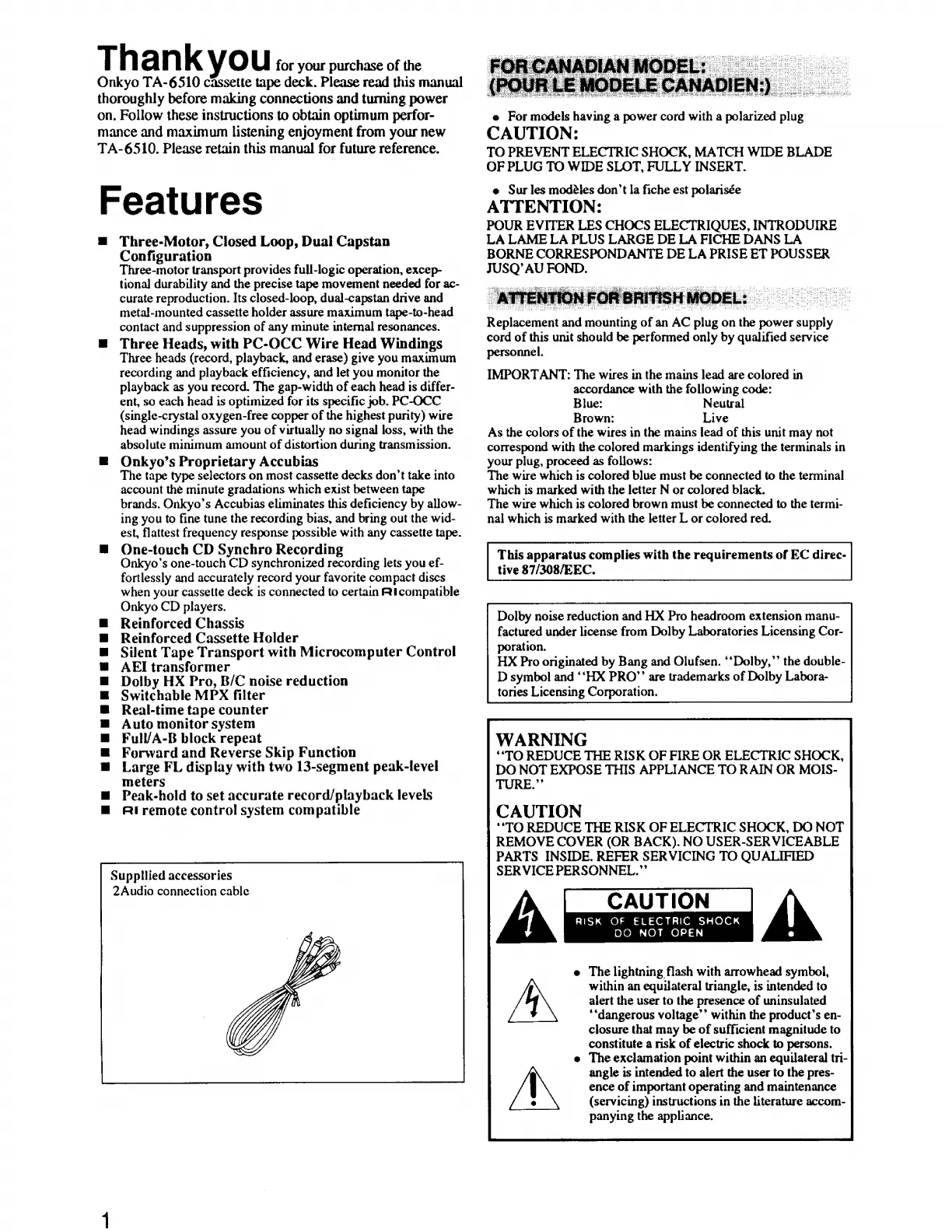

Th an K yo U for your purchase of the
Onkyo TA-6510 cassette tape deck. Please read this manual
thoroughly before making connections and turning power
on. Follow these instructions to obtain optimum perfor-
mance and maximum listening enjoyment from your new
TA-6510. Please retain this manual for future reference.
Features
= Three-Motor, Closed Loop, Dual Capstan
Configuration
Three-motor transport provides full-logic operation, excep-
tional durability and the precise tape movement needed for ac-
curate reproduction. Its closed-loop, dual-capstan drive and
metal-mounted cassette holder assure maximum tape-to-head
contact and suppression of any minute intemal resonances.
@ Three Heads, with PC-OCC Wire Head Windings
Three heads (record, playback, and erase) give you maximum
recording and playback efficiency, and let you monitor the
playback as you record. The gap-width of each head is differ-
ent, so each head is optimized for its specific job. PC-OCC
(single-crystal oxygen-free copper of the highest purity) wire
head windings assure you of virtually no signal loss, with the
absolute minimum amount of distortion during transmission.
@ Onkyo’s Proprietary Accubias
The tape type selectors on most cassette decks don’t take into
account thé minute gradations which exist between tape
brands. Onkyo’s Accubias eliminates this deficiency by allow-
ing you to fine tune the recording bias, and bring out the wid-
est, flattest frequency response possible with any cassette tape.
@ One-touch CD Synchro Recording
Onkyo’s one-touch CD synchronized recording lets you ef-
fortlessly and accurately record your favorite compact discs
when your cassette deck is connected to certain Ricompatible
Onkyo CD players.
Reinforced Chassis
Reinforced Cassette Holder
Silent Tape Transport with Microcomputer Control
AEI transformer
Dolby HX Pro, B/C noise reduction
Switchable MPX filter
Real-time tape counter
Auto monitor system
Full/A-B block repeat
Forward and Reverse Skip Function
Large FL display with two 13-segment peak-level
meters
Peak-hold to set accurate record/playback levels
Ri remote control system compatible
Supplied accessories
2 Audio connection cable
e For models having a power cord with a polarized plug
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE
OF PLUG TO WIDE SLOT, FULLY INSERT.
e Sur les modéies don’t la fiche est polarisée
ATTENTION:
POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQ’ AU FOND.
Replacement and mounting of an AC plug on the power supply
cord of this unit should be performed only by qualified service
personnel.
IMPORTANT: The wires in the mains lead are colored in
accordance with the following code:
Blue: Neutral
Brown: Live
As the colors of the wires in the mains lead of this unit may not
correspond with the colored markings identifying the terminals in
your plug, proceed as follows:
The wire which is colored blue must be connected to the terminal
which is marked with the letter N or colored black.
The wire which is colored brown must be connected to the termi-
nal which is marked with the letter L or colored red.
This apparatus complies with the requirements of EC direc-
tive 87/308/EEC.
Dolby noise reduction and HX Pro headroom extension manu-
factured under license from Dolby Laboratories Licensing Cor-
poration.
HX Pro onginated by Bang and Olufsen. ‘‘Dolby,”’ the double-
D symbol and ‘‘HX PRO”’ are trademarks of Dolby Labora-
tories Licensing Corporation.
WARNING
‘‘TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOIS-
CAUTION
‘*TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SER VICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SER VICE PERSONNEL.”’
Oy pecs
RISK OF ELECTRIC SHOCK
ol@mm, 102 Gm) 4 4, |
e The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
‘*dangerous voltage’’ within the product’s en-
closure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
e The exclamation point within an equilateral tri-
angle is intended to alert the user to the pres-
ence of important operating and maintenance
(servicing) instructions in the literature accom-
panying the appliance.

Onkyo TA-6510 Specifications

Power

power supply rating (UK and Australian models)	AC 240 V 50 Hz
power supply rating (European models except UK)	AC 230 V, 50Hz
power supply rating (Worldwide models)	AC 120 and 220 V, Switchable 50/60 Hz
power consumption	13 watts

Audio Specifications

frequency response (normal)	20–18, 000 Hz
frequency response (high)	20–19, 000 Hz
frequency response (metal)	20–20, 000 Hz
signal-to-noise ratio	60 dB (metal tape, Dolby NR off)

Input and Output

input sensitivity	80 mV
input impedance	50 kohms
standard output level	500 mV
optimum load impedance (output)	over 50 kohms
optimum load impedance (headphone jack)	8 to 200 ohms

Weight and Dimensions

weight	5.0 kg
dimensions	455(W) x 120(H) x 310(D) mm
