Onkyo TA-6510 User Manual

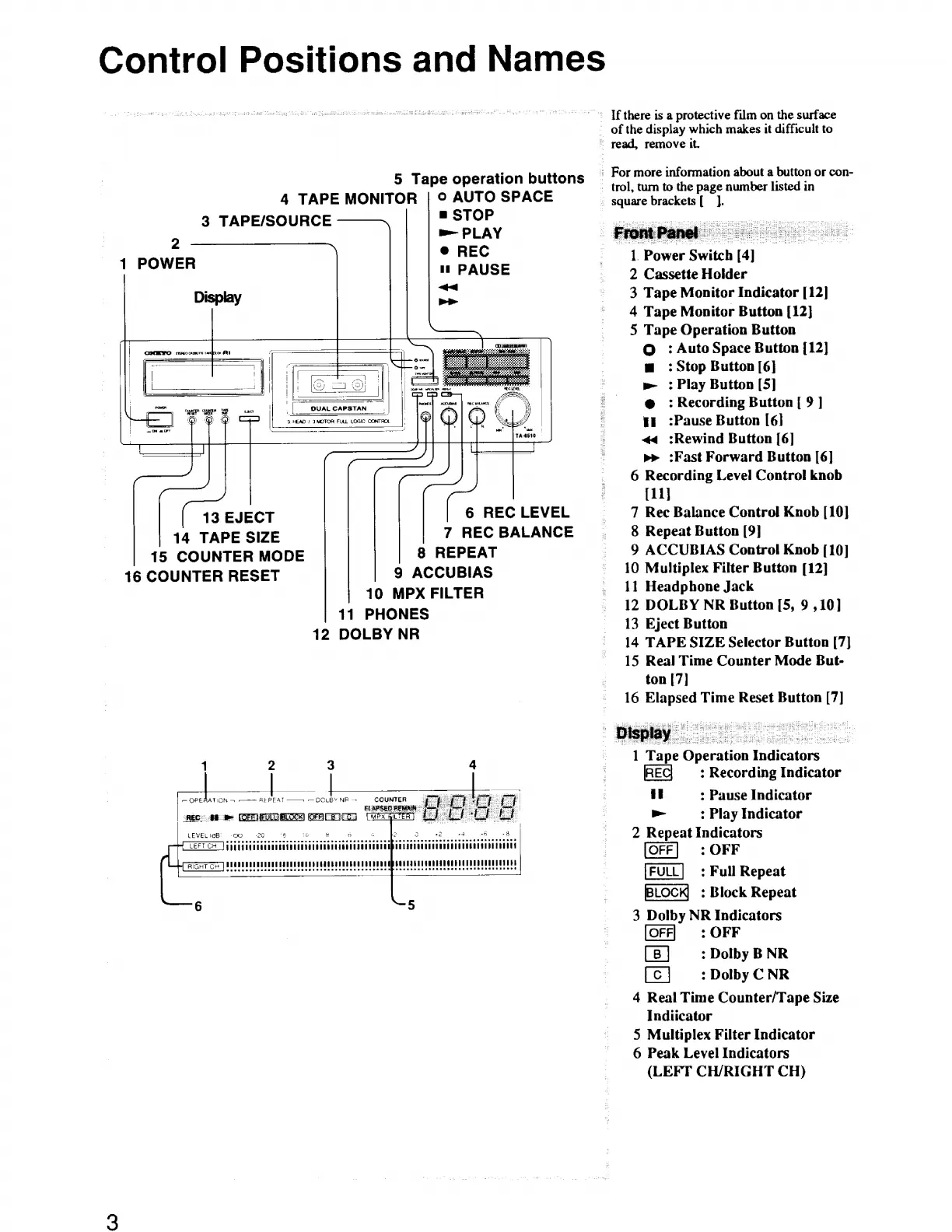

Control Positions and Names
4 TAPE MONITOR
3 TAPE/SOURCE
2
1 POWER
Display
5 Tape operation buttons
© AUTO SPACE
= STOP
m PLAY
@ REC
1 PAUSE
1
OUAL CAPSTAN |
3 HEAD / JMOTOA FULL LOGIC CONTROL
13 EJECT
14 TAPE SIZE
15 COUNTER MODE
16 COUNTER RESET
6 REC LEVEL
7 REC BALANCE
8 REPEAT
9 ACCUBIAS
10 MPX FILTER
11 PHONES
12 DOLBY NR
3 4
‘REC Awe | JERE)
LEVEL IcB: -00 -20
POUR CR ee
— OPERATION — ——=— REPEAT — — DOLBY NA
COUNTER
ELAPSED REMA
[MEX AILTER |
TRETESECOOOUE CCE OE OPPOSES
"= Tf there is a protective film on the surface
of the display which makes it difficult to
~ read, remove it.
- For more information about a button or con-
- trol, tun to the page number listed in
. square brackets [_ J.
1. Power Switch [4]
2 Cassette Holder
3 Tape Monitor Indicator [12]
4 Tape Monitor Button [12]
5 Tape Operation Button
OQ : Auto Space Button [12]
m : Stop Button [6]
pm +: Play Button [5]
@ : Recording Button [ 9 |]
ul :Pause Button [6]
<< :Rewind Button [6]
p> :Fast Forward Button [6]
6 Recording Level Control knob
[11)
7 Rec Balance Control Knob [10]
8 Repeat Button [9]
9 ACCUBIAS Control Knob [10]
10 Multiplex Filter Button [12]
11 Headphone Jack
12 DOLBY NR Button [5, 9 ,10]
13 Eject Button
14 TAPE SIZE Selector Button [7]
15 Real Time Counter Mode But-
ton [7]
16 Elapsed Time Reset Button [7]
1 Tape Operation Indicators
: Recording Indicator
HE : Pause Indicator
> : Play Indicator
2 Repeat Indicators
: OFF
: Full Repeat
: Block Repeat
3 Dolby NR Indicators
: OFF
: Dolby BNR
: Dolby CNR
4 Real Time Counter/Tape Size
Indiicator
5 Multiplex Filter Indicator
6 Peak Level Indicators
(LEFT CH/RIGHT CH)

Onkyo TA-6510 Specifications

Power

power supply rating (UK and Australian models)	AC 240 V 50 Hz
power supply rating (European models except UK)	AC 230 V, 50Hz
power supply rating (Worldwide models)	AC 120 and 220 V, Switchable 50/60 Hz
power consumption	13 watts

Audio Specifications

frequency response (normal)	20–18, 000 Hz
frequency response (high)	20–19, 000 Hz
frequency response (metal)	20–20, 000 Hz
signal-to-noise ratio	60 dB (metal tape, Dolby NR off)

Input and Output

input sensitivity	80 mV
input impedance	50 kohms
standard output level	500 mV
optimum load impedance (output)	over 50 kohms
optimum load impedance (headphone jack)	8 to 200 ohms

Weight and Dimensions

weight	5.0 kg
dimensions	455(W) x 120(H) x 310(D) mm
