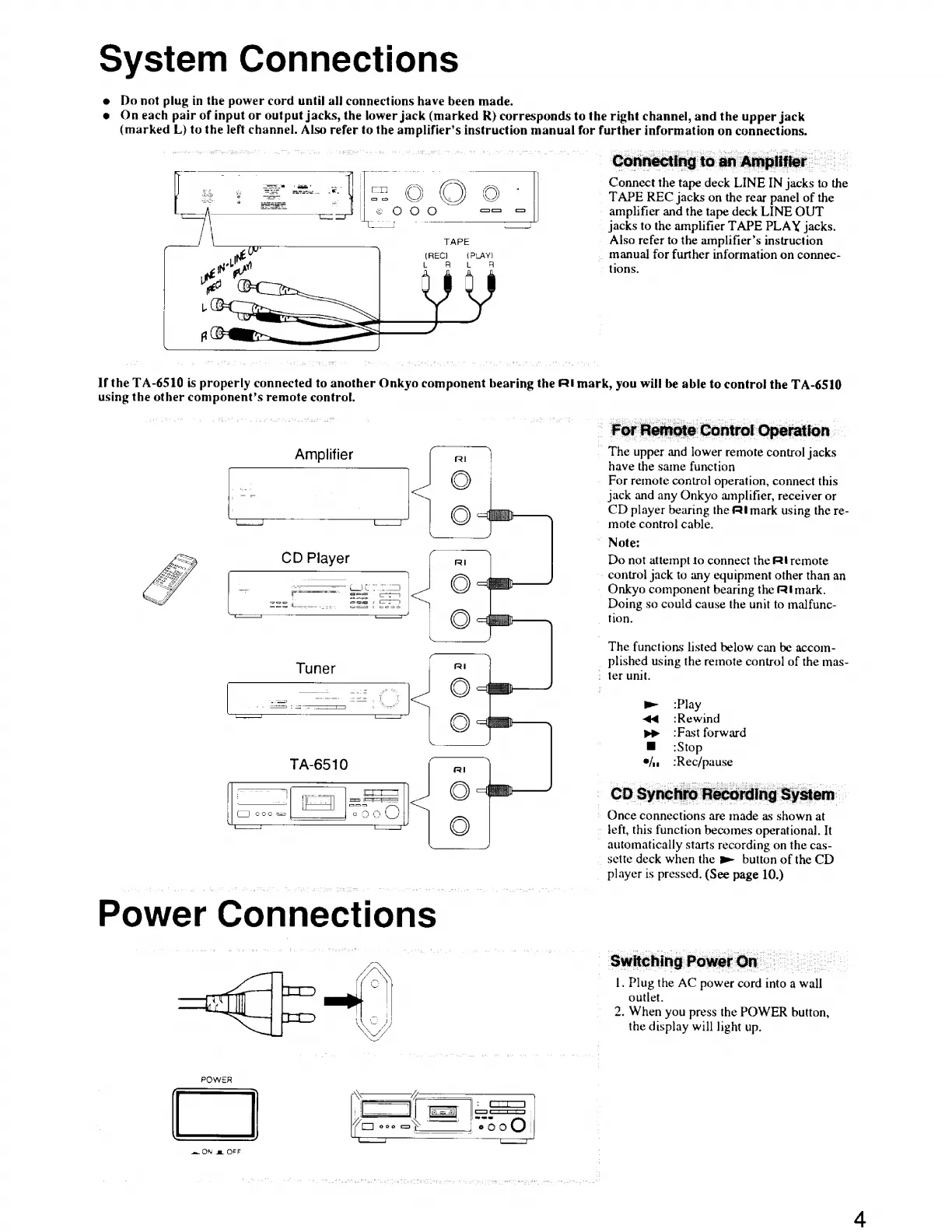

System Connections
e Do not plug in the power cord until all connections have been made.
@ On each pair of input or output jacks, the lower jack (marked R) corresponds to the right channel, and the upper jack
(marked L) to the left channel. Also refer to the amplifier’s instruction manual for further information on connections.
Conne a
Connect the tape deck LINE IN jacks to the
TAPE REC jacks on the rear panel of the
> amplifier and the tape deck LINE OUT
jacks to the amplifier TAPE PLAY jacks.
Also refer to the amplifier’s instruction
. manual for further information on connec-
tions.
If the TA-6510 is properly connected to another Onkyo component bearing the RI mark, you will be able to contro! the TA-6510
using the other component’s remote control.
For Control Operation -
_ The upper and lower remote control jacks
have the same function
_ For remote control operation, connect this
Jack and any Onkyo amplifier, receiver or
CD player bearing the Rt mark using the re-
~ mote control cable.
~ Note:
Do not attempt to connect the Rt remote
~ control jack to any equipment other than an
| Onkyo component bearing the Ri mark.
223: 5F2 Doing so could cause the unit to malfunc-
tion.
Amplifier
CD Player
. The functions listed below can be accom-
_ phshed using the remote control of the mas-
- ter unit.
em -:Play
44 :Rewind
pe -Fast forward
@ Stop
e/, :Rec/pause
' Once connections are made as shown at
~ left, this function becomes operational. It
- automatically starts recording on the cas-
_ sette deck when the » button of the CD
_ player is pressed. (See page 10.)
|. Plug the AC power cord into a wall
outlet.
2. When you press the POWER button,
the display will light up.
POWER
am ON mt OFF

Onkyo TA-6510 Specifications

Power

power supply rating (UK and Australian models)	AC 240 V 50 Hz
power supply rating (European models except UK)	AC 230 V, 50Hz
power supply rating (Worldwide models)	AC 120 and 220 V, Switchable 50/60 Hz
power consumption	13 watts

Audio Specifications

frequency response (normal)	20–18, 000 Hz
frequency response (high)	20–19, 000 Hz
frequency response (metal)	20–20, 000 Hz
signal-to-noise ratio	60 dB (metal tape, Dolby NR off)

Input and Output

input sensitivity	80 mV
input impedance	50 kohms
standard output level	500 mV
optimum load impedance (output)	over 50 kohms
optimum load impedance (headphone jack)	8 to 200 ohms

Weight and Dimensions

weight	5.0 kg
dimensions	455(W) x 120(H) x 310(D) mm
