Onkyo TX-1500 - Specifications; Amplifier Specifications; Tuner Specifications

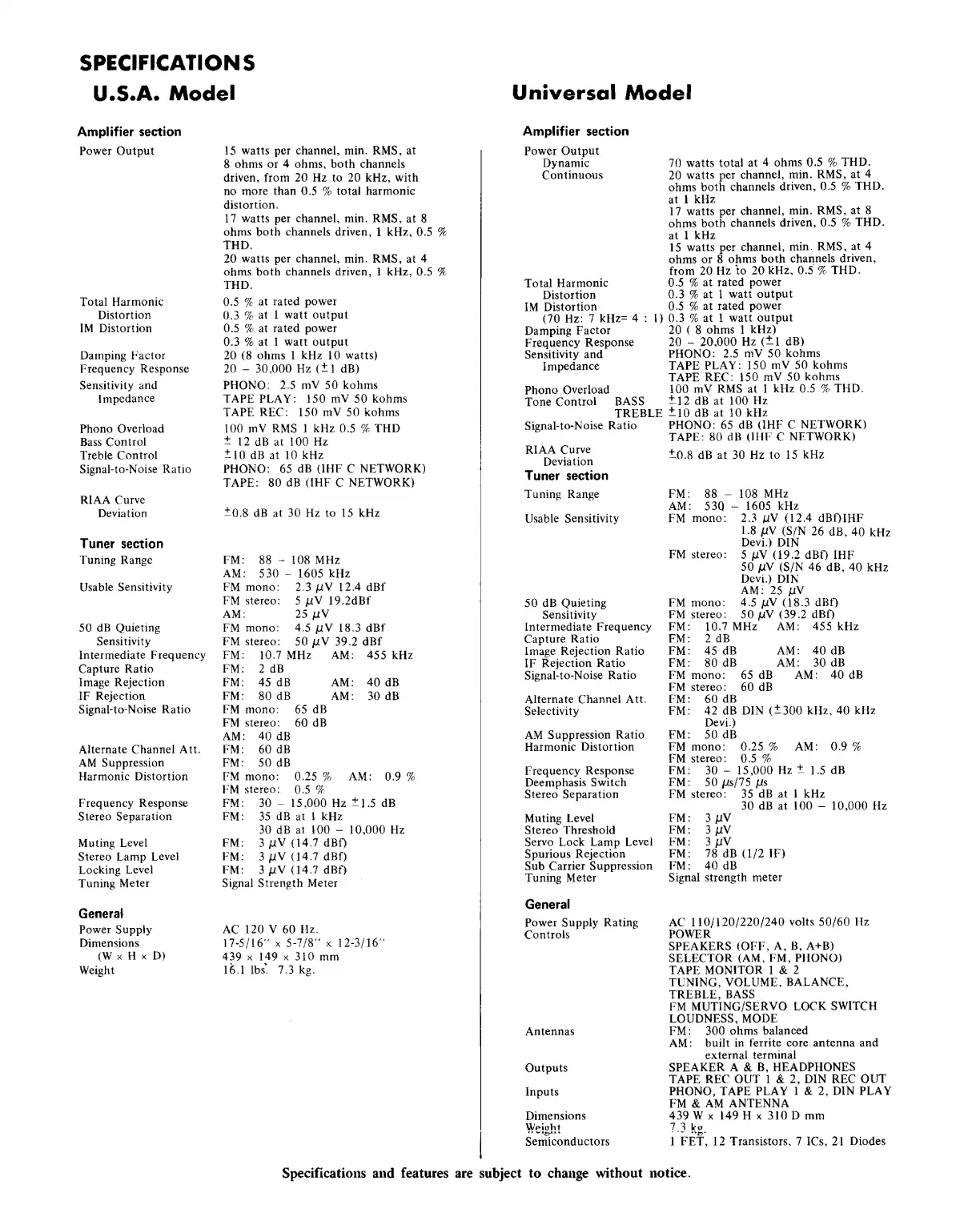

SPECIFICATIONS
U.S.A. Model
Amplifier section
Power Output
Total Harmonic
Distortion
IM Distortion
Damping Factor
Frequency Response
Sensitivity and
Impedance
Phono Overload
Bass Control
Treble Control
Signal-to-Noise Ratio
RIAA Curve
Deviation
Tuner section
Tuning Range
Usable Sensitivity
50 dB Quieting
Sensitivity
Intermediate Frequency
Capture Ratio
Image Rejection
IF Rejection
Signal-to-Noise Ratio
Alternate Channel Att.
AM Suppression
Harmonic Distortion
Frequency Response
Stereo Separation
Muting Level
Stereo Lamp Level
Locking Level
Tuning Meter
General
Power Supply
Dimensions
(Wx H x D)
Weight
15 watts per channel, min. RMS, at
8 ohms or 4 ohms, both channels
driven, from 20 Hz to 20 kHz, with
no more than 0.5 % total harmonic
distortion.
17 watts per channel, min. RMS, at 8
ohms both channels driven, 1 kHz, 0.5 %
THD.
20 watis per channel, min. RMS, at 4
ohms both channels driven, 1 kHz, 0.5 %
THD.
0.5 % at rated power
0.3 % at | watt output
0.5 % at rated power
0.3 % at 1 watt output
20 (8 ohms 1 kHz 10 watts)
20 — 30,000 Hz (£1 dB)
PHONO: 2.5 mV 50 kohms
TAPE PLAY: 1!50 mV 450 Kohms
TAPE REC: 150 mV 50 kohms
100 mV RMS 1 kHz 0.5 % THD
+ 12 dB at 100 Hz
*10 dB at 10 kHz
PHONO: 65 dB (IHF C NETWORK)
TAPE: 80 dB (IHF C NETWORK)
*0.8 dB at 30 Hz to 15 kHz
FM: 88 — 108 MHz
AM: 530 — 1605 kHz
FM mono: 2.3 LV 12.4 dB
FM stereo: 5 BV 19.2dBf
AM: 25 wv
FM mono: 4.5 UV 18.3 dBf
FM stereo: 50 pV 39.2 dBf
FM: 10.7 MHz AM: 455 kHz
FM: 2 dB
FM: 45 dB AM: 40 dB
FM: 80 dB AM: 30 dB
FM mono: 65 dB
FM stereo: 60 dB
AM: 40 dB
FM: 60 dB
FM: 50 dB
FM mono: 0.25% AM: 09%
FM stereo: 0.5 %
FM: 30 — 15,000 Hz *1.5 dB
FM: 35 dB at 1 kHz
30 dB at 100 — 10,000 Hz
FM: 3 pV (14.7 dBf
FM: 3yV (14.7 dBf)
FM: 3 pV (147 dBf)
Signal Strength Meter
AC 120 V 60 Hz.
17-5/16" x 5-7/8" x 12-3/16"
439 x 149 x 310 mm
16.1 lbs. 7.3 kg.
Amplifier section
Power Output
Dynamic
Continuous
Total Harmonic
Distortion
IM Distortion
(70 Hz: 7 kHz= 4: 1)
Damping Factor
Frequency Response
Sensitivity and
Impedance
Phono Overload
Tone Control BASS
TREBLE
Signal-to-Noise Ratio
RIAA Curve
Deviation
Tuner section
Tuning Range
Usable Sensitivity
50 dB Quieting
Sensitivity
Intermediate Frequency
Capture Ratio
Image Rejection Ratio
IF Rejection Ratio
Signal-to-Noise Ratio
Alternate Channel Att.
Selectivity
AM Suppression Ratio
Harmonic Distortion
Frequency Response
Deemphasis Switch
Stereo Separation
Muting Level
Stereo Threshold
Servo Lock Lamp Level
Spurious Rejection
Sub Carrier Suppression
Tuning Meter
General
Power Supply Rating
Controls
Antennas
Outputs
Inputs
Dimensions
Weioht
Semiconductors
Universal Model
70 watts total at 4 ohms 0.5 % THD.
20 watts per channel, min. RMS, at 4
ohms both channels driven, 0.5 % THD.
at 1 kHz
17 watts per channel, min. RMS, at 8
ohms both channels driven, 0.5 % THD.
at 1 kHz
15 watts per channel, min. RMS, at 4
ohms or 8 ohms both channels driven,
from 20 Hz to 20 KHz, 0.5 % THD.
0.5 % at rated power
0.3 % at 1 watt output
0.5 % at rated power
0.3 % at 1 watt output
20 ( 8 ohms 1 kHz)
20 — 20,000 Hz (+1 dB)
PHONO: 2.5 mV 50 kohms
TAPE PLAY: 150 mV 50 kohms
TAPE REC: 150 mV 50 kohms
100 mV RMS at 1 kHz 0.5 % THD.
+12 dB at 100 Hz
*10 dB at 10 kHz
PHONO: 65 dB (HF C NETWORK)
TAPE: 80 dB GHF C NETWORK)
+0.8 dB at 30 Hz to 15 kHz
FM: 88 — 108 MHz
AM: 53Q — 1605 kHz
FM mono: 2.3 uv (12.4 dBfIHF
1.8 pV (S/N 26 dB, 40 kHz
Devi.) DIN
FM stereo: 5 pV (19.2 dBf) IHF
50 pV (S/N 46 dB, 40 kHz
Devi.} DIN
AM: 25 UV
FM mono: 4.5 pV (18.3 dBf)
FM stereo: 50 uv (39.2 dBf
FM: 10.7 MHz AM: 455 kHz
FM: 2 dB
FM: 45 dB AM: 40 dB
FM: 80 dB AM: 30 dB
FM mono: 65 dB AM: 40 dB
FM stereo: 60 dB
FM: 60 dB
FM: 42 dB DIN (£300 kHz, 40 kHz
Devi.)
FM: 50 dB
FM mono: 0.25% AM: 0.9 %
FM stereo: 0.5 %
FM: 30 — 15,000 Hz * 1.5 dB
FM: 50 ps/75 ps
FM stereo: 35 dB at 1 kHz
30 dB at 100 — 10,000 Hz
FM: 3uV
FM: 3 UV
FM: 3 UV
FM: 78 dB (1/2 IF)
FM: 40 dB
Signal strength meter
AC 110/120/220/240 volts 50/60 Hz
POWER
SPEAKERS (OFF, A, B, A+B)
SELECTOR (AM, FM, PHONO)
TAPE MONITOR 1 & 2
TUNING, VOLUME, BALANCE,
TREBLE, BASS
FM MUTING/SERVO LOCK SWITCH
LOUDNESS, MODE
FM: 300 ohms balanced
AM: built in ferrite core antenna and
external terminal
SPEAKER A & B, HEADPHONES
TAPE REC OUT 1 & 2, DIN REC OUT
PHONO, TAPE PLAY 1 & 2, DIN PLAY
FM & AM ANTENNA
439 W x 149 H x 310 D mm
7.3 ke.
1 FET, 12 Transistors, 7 ICs, 21 Diodes
Specifications and features are subject to change without notice.
