Onkyo TX-3000

O
T.P (IF IN)
FM
IF AMP. &
DETECTOR
© FM tc TC TC 1C151 TC
DET 152 003 002 001
T101
L153
R206 AM
AM IF ose
M PX
DECORDER 0
T.P(V.C.O) T151
AM
DET
(+) R202
SEP
L202 L201
LOW PASS
FILTER

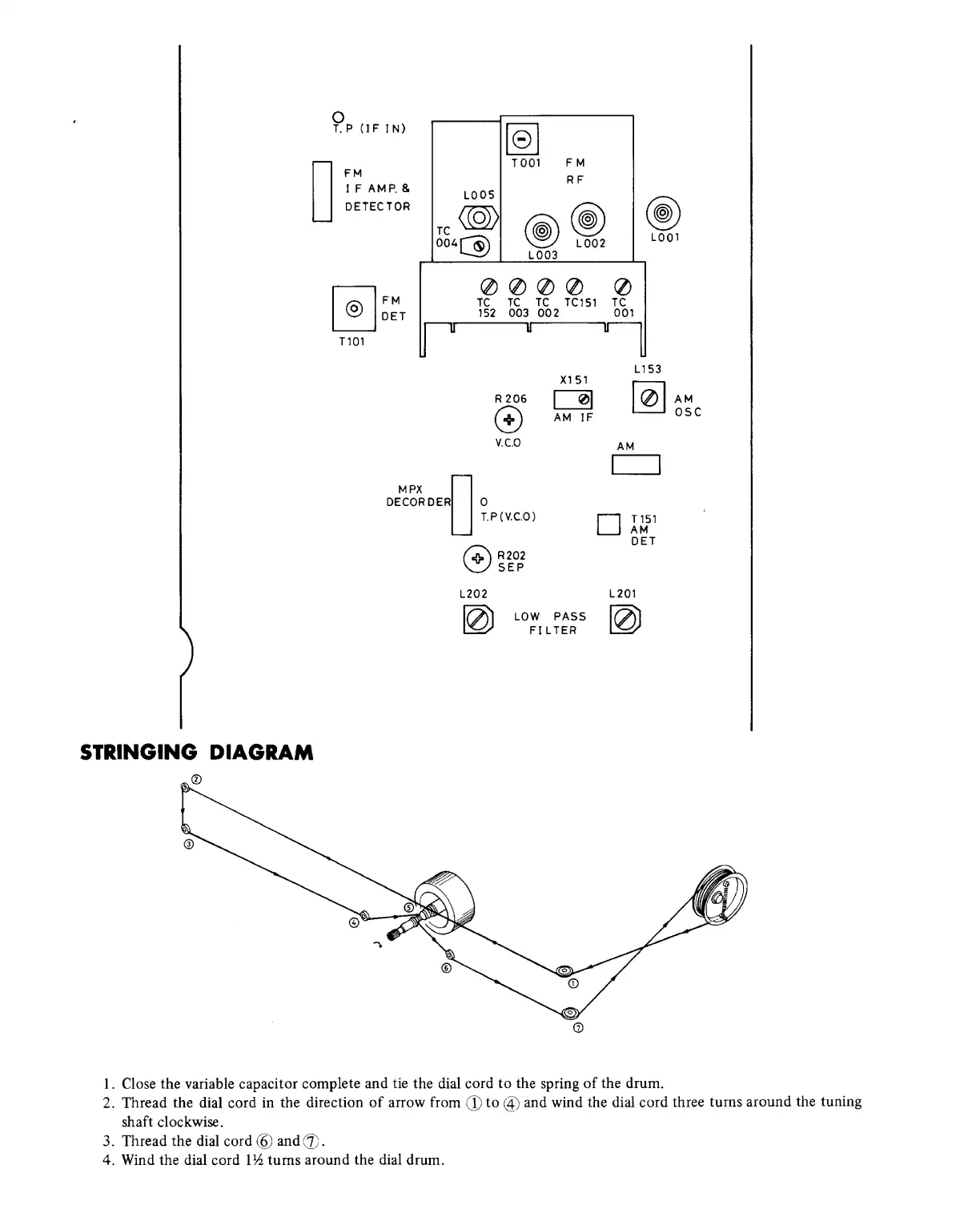

STRINGING DIAGRAM
1. Close the variable capacitor complete and tie the dial cord to the spring of the drum.
2. Thread the dial cord in the direction of arrow from (1) to @) and wind the dial cord three turns around the tuning
shaft clockwise.
3. Thread the dial cord ©) and@).
4, Wind the dial cord 1% turns around the dial drum.
