Connecting a Power Amplifier

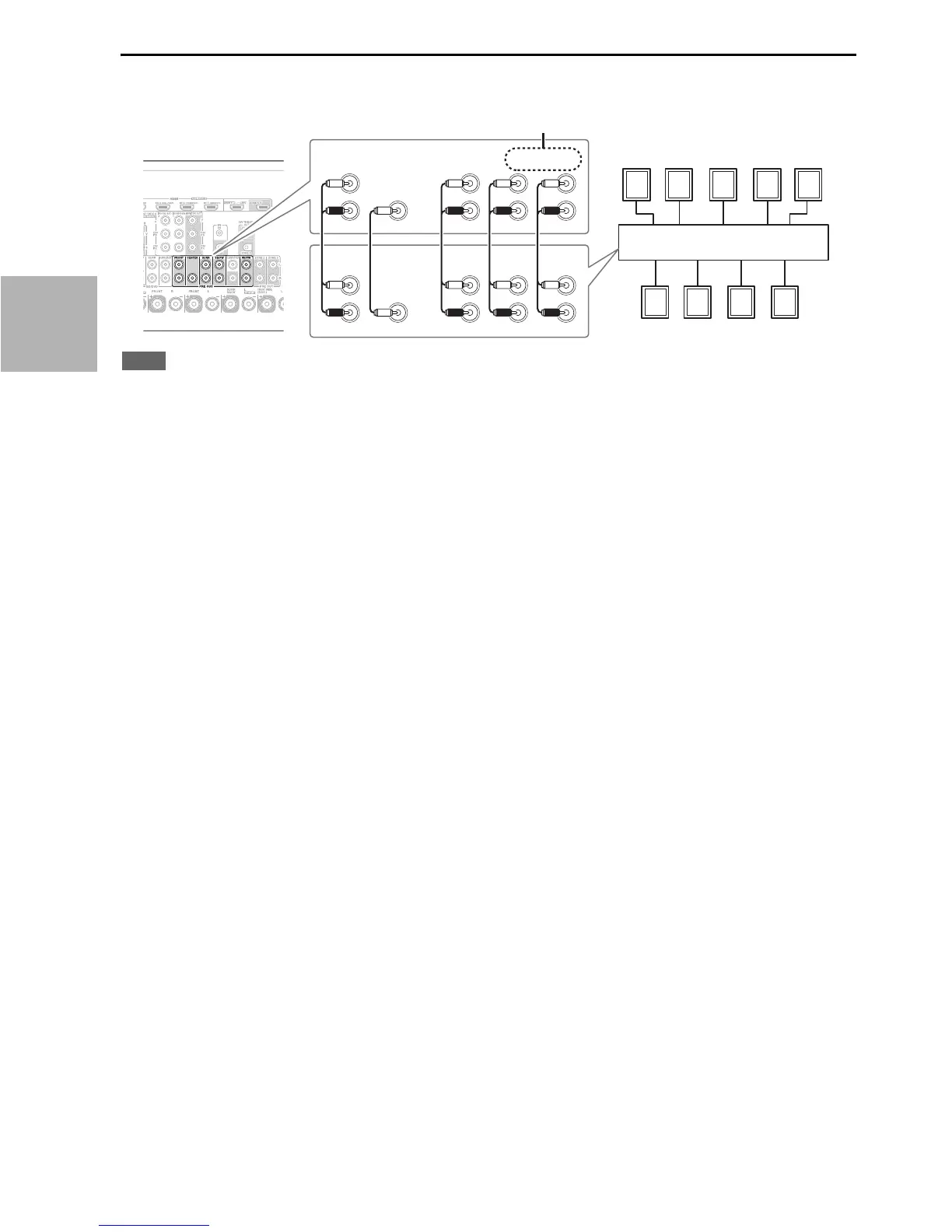

If you want to use a more powerful power amplifier and use the AV receiver as a preamp, connect it to the PRE OUT
jacks, and connect all speakers to the power amplifier.
PRE OUT
R
CENTER
CENTER
SB/FW
SURR BACK OR
FRONT WIDE
FRONT
R
L
FRONT
R
L
SURR
R
SURR
R
L
L
R
R
L
L
FH/FW
FRONT HIGH OR
FRONT WIDE
R
R
L
L
abc
d
h
fig
e
*1
aFront left speaker
bCenter speaker
cFront right speaker
dSurround left speaker
eSurround right speaker
fSurround back/Front wide left speaker
*1
gSurround back/Front wide right speaker
*1
hFront high/Front wide left speaker
*1
iFront high/Front wide right speaker
*1
Note
*1
Specify “None” for the channel that you don’t want to output
(➔ 47).
SB···Surround Back, FH···Front High, FW···Front Wide
Power amplifier
