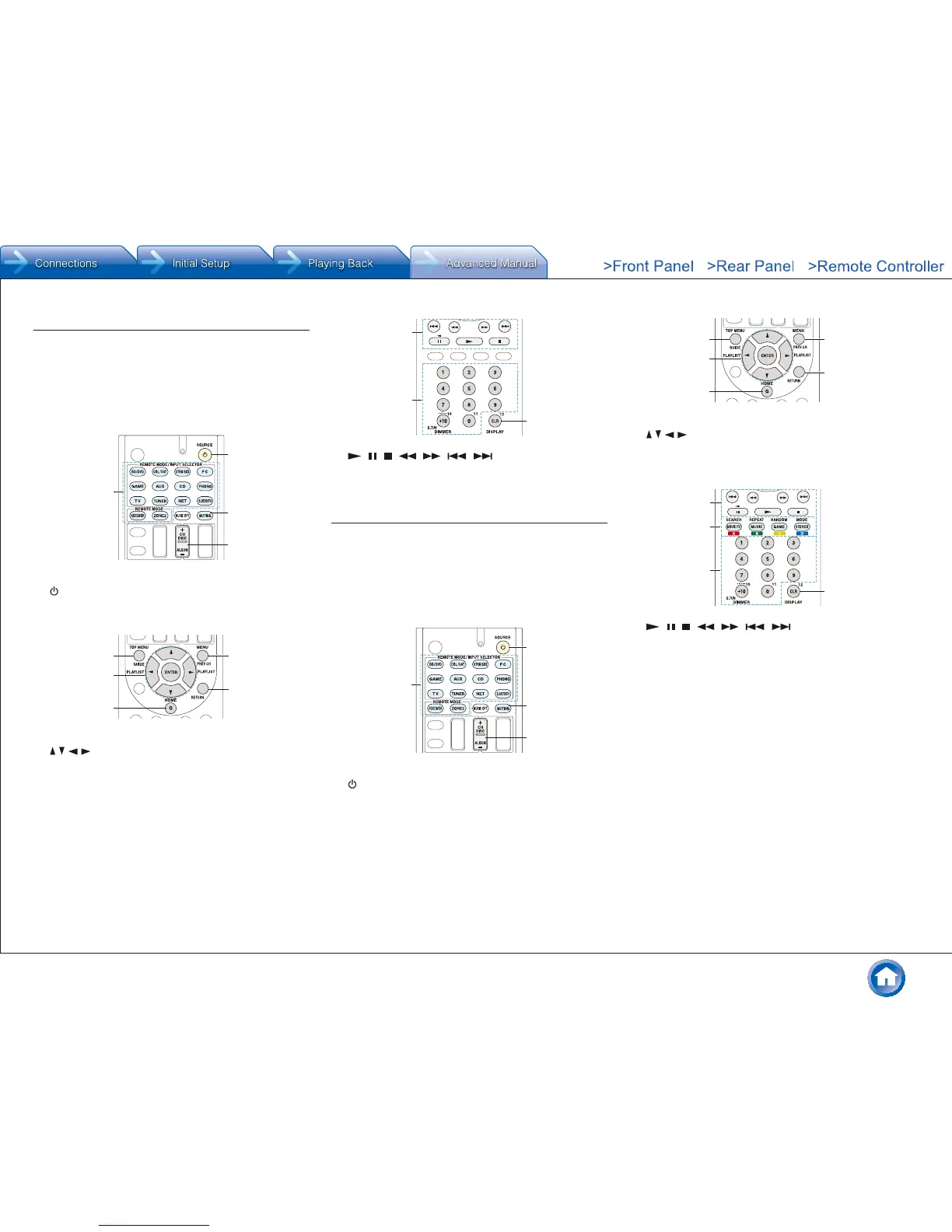

Operating Other Components with the Remote Controller
En-49
VCR/PVR operation
Press the REMOTE MODE button programmed with
the remote control code for the relevant AV component
to switch the remote controller mode to that for the AV
component. Then, operate by using the corresponding
buttons. Available buttons vary depending on the product
category of the component. Operation may be incorrect or
impossible depending on the product.
1
2
4
3
1 REMOTE MODE
2 SOURCE
3 MUTING
4 CH +/–
7
58
9
6
5 GUIDE
6 / / / , ENTER
7 HOME
8 PREV CH
9 RETURN
F
G
H
F , , , , , ,
G Number 1 to 9, 0, +10
H CLR, DISPLAY
Satellite receiver / Cable receiver operation
Press the REMOTE MODE button programmed with
the remote control code for the relevant AV component
to switch the remote controller mode to that for the AV
component. Then, operate by using the corresponding
buttons. Available buttons vary depending on the product
category of the component. Operation may be incorrect or
impossible depending on the product.
1
2
4
3
1 REMOTE MODE
2 SOURCE
3 MUTING
4 CH +/–
7
5
6
8
9
5 GUIDE
6 / / / , ENTER
7 HOME
8 PREV CH
9 RETURN
F
G
H
I
F , , , , , ,
G A (Red), B (Green), C (Yellow), D (Blue)
H Number 1 to 9, 0, +10
I CLR, DISPLAY

Onkyo TX-NR646 Specifications

General

Impedance	16 Ω
Receiver type	-
Frequency range	10 - 100000 Hz
Output impedance	470 Ω
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	240 W
Dynamic power per channel (4 Ohm)	210 W
Dynamic power per channel (8 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	160 W
HDMI in	8
Composite video in	3
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Audio formats supported	AAC, FLAC, LPCM, MP3, OGG, WAV, WMA
Wi-Fi	Yes
Ethernet LAN	No
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP
AM band range	522 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Product color	Silver
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Damping factor	60
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	630 W
Package weight	12500 g
Package depth	423 mm
Package width	570 mm
Package height	287 mm

Weight and Dimensions

Depth	329 mm
Width	435 mm
Height	173.5 mm
Weight	9400 g
