First Time Setup
—Continued
If you connect a video component to a COMPONENT VIDEO IN or HDMI IN, use this setting to assign that input to
an input selector. If you have a TX-SR505 other than North American model/TX-SR8550, skip this page.
Component Video Setup (TX-SR575 only)
If you connect a video component to a COMPONENT
VIDEO IN, you must assign that input to an input selec-
tor. For example, if you connect your DVD player to
COMPONENT VIDEO IN 3, you must assign CMPNT
DVD setting to IN3.
If you want to output composite video and S-Video
sources from the COMPONENT VIDEO OUT, select
Upcnv.
IN1:
Select if the video component is connected to
COMPONENT VIDEO IN 1.
IN2:
Select if the video component is connected to
COMPONENT VIDEO IN 2.
IN3:
Select if the video component is connected to
COMPONENT VIDEO IN 3.
Upcnv:
Select to upconvert and output composite
video or S-Video sources from the COMPO-
NENT VIDEO OUT.
Note:
TX-SR575 only
: When IN1, IN2, or IN3 is selected, the
composite video to S-Video and S-Video to composite
video conversions do not work.
HDMI Video Setup (TX-SR505 North
American model/TX-SR505E/TX-SR575
only)
If you connect a video component to HDMI IN 1 or 2,
you must assign that input to an input selector. For exam-
ple, if you connect your DVD player to HDMI IN 1, you
must assign HDMI DVD setting to IN1.
IN1:
Select if the video component is connected to
HDMI IN 1.
IN2:
Select if the video component is connected to
HDMI IN 2.
No:
Select if you’re not using the HDMI OUT.
TX-SR505 North American Model/TX-SR505E/TX-SR575 Only

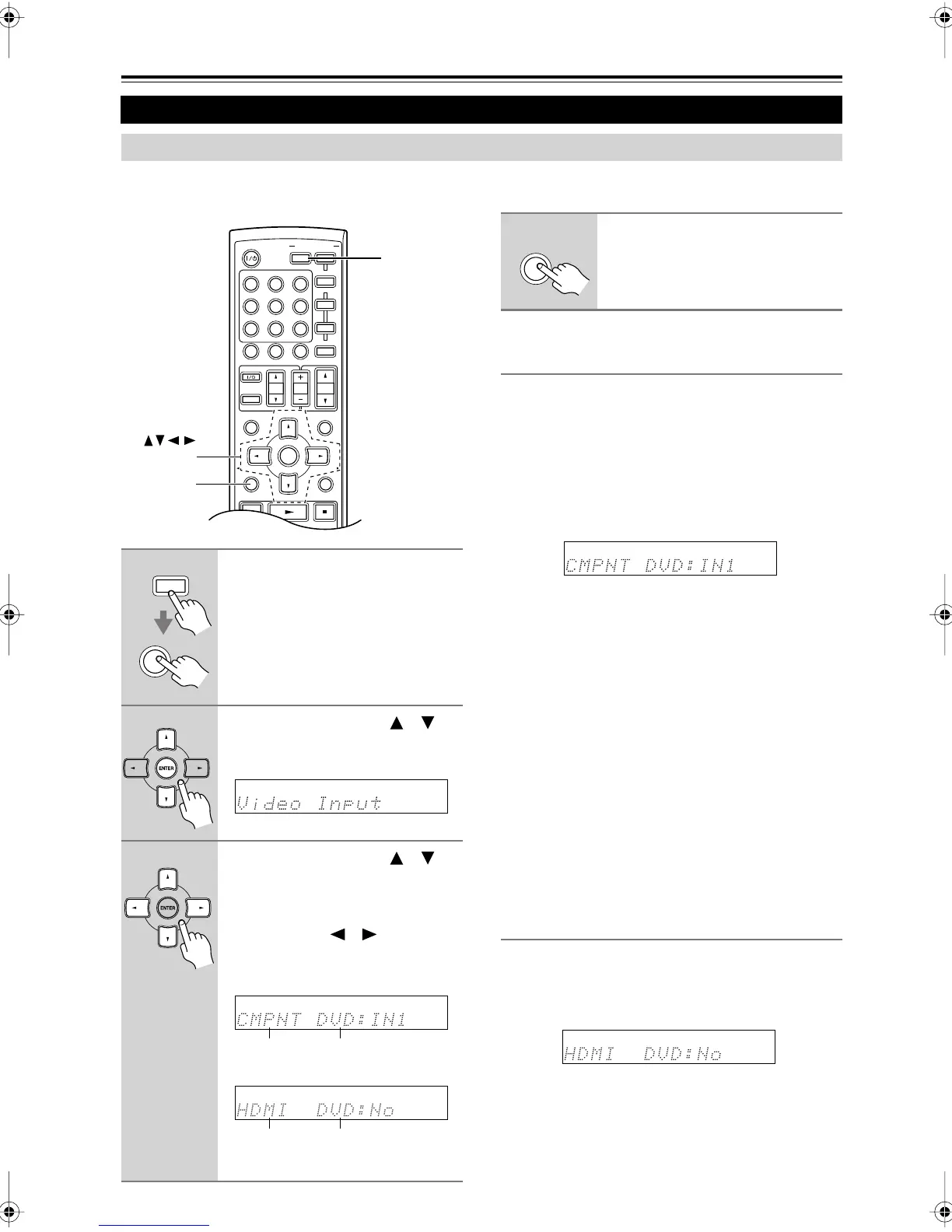

Video Input Setup
1
Press the [RECEIVER] button,
followed by the [SETUP] button.
2
Use the Up and Down [ ]/[ ]
buttons to select “Video Input,”
and then press [ENTER].
3
Use the Up and Down [ ]/[ ]
buttons to select “Component
Video Setup” (TX-SR575 only) or
“HDMI Video Setup” and use the
Left and Right [ ]/[ ] buttons to
change the setting.
See the right column for setting details.
