Onkyo TX-SV545

TX-SV545

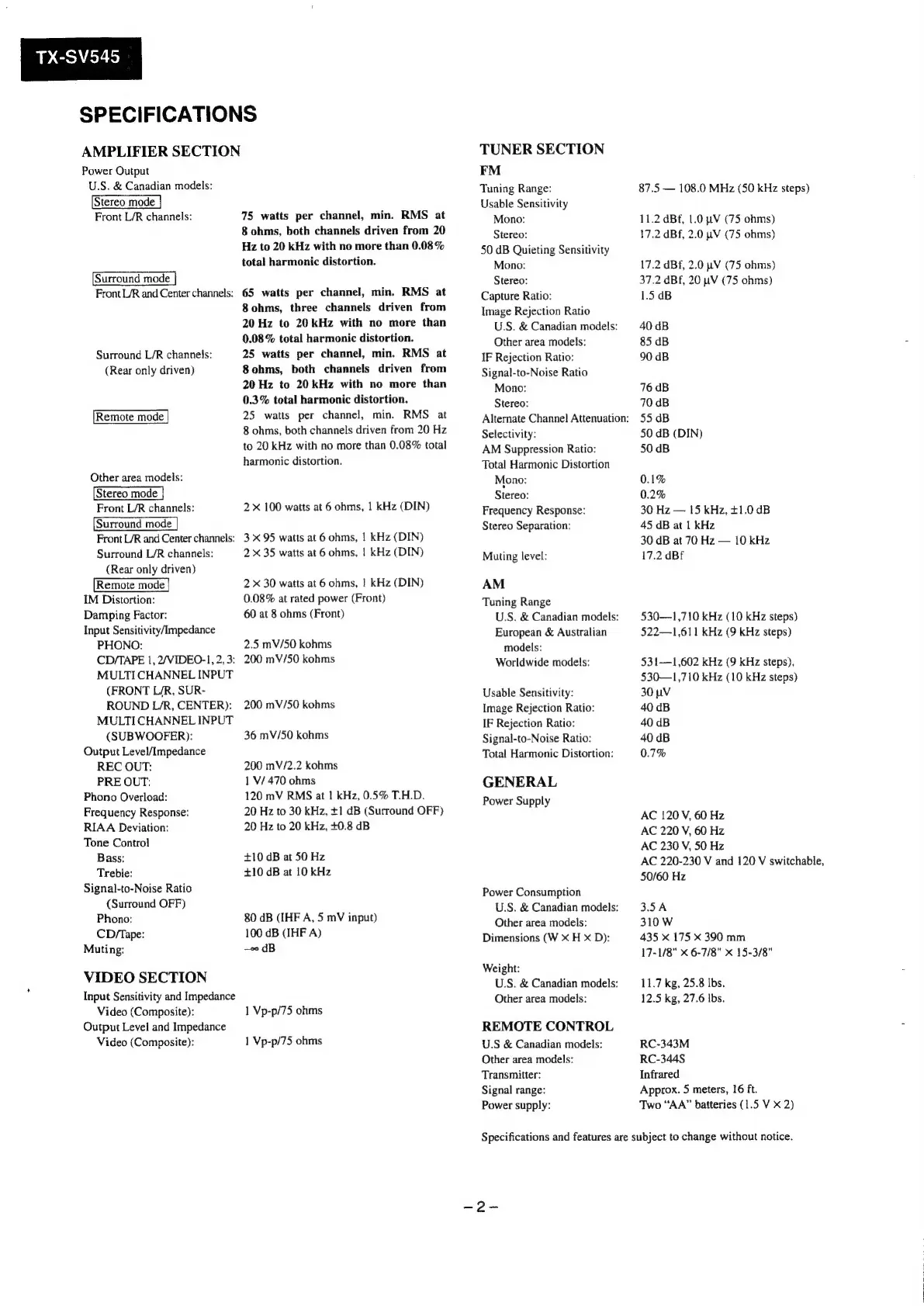

SPECIFICATIONS
AMPLIFIER SECTION
Power Output
U.S. & Canadian models:
Front L/R channels:
Front LAR and Center channels:
Surround L/R channels:
(Rear only driven)
Other area models:
Front L/R channels:
Front L/R and Center channels:
Surround L/R channels:
(Rear only driven)
IM Distortion:
Damping Factor:
Input Sensitivity/Impedance
PHONO:
CD/TAPE 1, 2/VIDEO-1, 2, 3:
MULTICHANNEL INPUT
(FRONT L/R, SUR-
ROUND L/R, CENTER):
MULTICHANNEL INPUT
(SUBWOOFER):
Output Level/Impedance
REC OUT:
PRE OUT:
Phono Overload:
Frequency Response:
RIAA Deviation:
Tone Control
Bass:
Treble:
Signal-to-Noise Ratio
(Surround OFF)
Phono:
CD/Tape:
Muting:
VIDEO SECTION
Input Sensitivity and Impedance
Video (Composite):
Output Level and Impedance
Video (Composite):
75 watts per channel, min. RMS at
8 ohms, both channels driven from 20
Hz to 20 kHz with no more than 0.08%
total harmonic distortion.
65 watts per channel, min. RMS at
8 ohms, three channels driven from
20 Hz to 20kHz with no more than
0.08% total harmonic distortion.
25 watts per channel, min. RMS at
8ohms, both channels driven from
20 Hz to 20 kHz with no more than
0.3% tetal harmonic distortion.
25 watts per channel, min. RMS at
8 ohms, both channels driven from 20 Hz
to 20 kHz with no more than 0.08% total
harmonic distortion.
2X 100 watts at 6 ohms, 1 kHz (DIN)
3 X95 watts at 6 ohms, | kHz (DIN)
2 x 35 watts at 6 ohms, | kHz (DIN)
2 X 30 watts at 6 ohms, | kHz (DIN)
0.08% at rated power (Front)
60 at 8 ohms (Front)
2.5 mV/S0 kohms
200 mV/S0 kohms
200 mV/50 kohms
36 mV/50 kohms
200 mV/2.2 kohms
1 V/ 470 ohms
120 mV RMS at | kHz, 0.5% T.H.D.
20 Hz to 30 kHz, +1 dB (Surround OFF)
20 Hz to 20 kHz, +0.8 dB
+10 dB at 50 Hz
+10 dB at 10 kHz
80 dB (IHF A, 5 mV input)
100 dB (THF A)
-co dB
1 Vp-p/75 ohms
1 Vp-p/75 ohms
TUNER SECTION
FM
Tuning Range:
Usable Sensitivity
Mono:
Stereo:
50 dB Quieting Sensitivity
Mono:
Stereo:
Capture Ratio:
Image Rejection Ratio
U.S. & Canadian models:
Other area models:
IF Rejection Ratio:
Signal-to-Noise Ratio
Mono:
Stereo:
Alternate Channel Attenuation:
Selectivity:
AM Suppression Ratio:
Total Harmonic Distortion
Mono:
Stereo:
Frequency Response:
Stereo Separation:
Muting level:
AM
Tuning Range
U.S. & Canadian models:
European & Australian
models:
Worldwide models:
Usable Sensitivity:
Image Rejection Ratio:
IF Rejection Ratio:
Signal-to-Noise Ratio:
Total Harmonic Distortion:
GENERAL
Power Supply
Power Consumption
U.S. & Canadian models:
Other area models:
Dimensions (W X H X D):
Weight:
U.S. & Canadian models:
Other area models:
REMOTE CONTROL
U.S & Canadian models:
Other area models:
Transmitter:
Signal range:
Power supply:
87.5 — 108.0 MHz (50 kHz steps)
11.2 dBf, 1.0 pV (75 ohms)
17.2 dBf, 2.0 pV (75 ohms)
17.2 dBf, 2.0 nV (75 ohms)
37.2 dBf, 20 uV (75 ohms)
1.5 dB
40 dB
85 dB
90 dB
76 dB
70 dB
55 dB
50 dB (DIN)
50 dB
0.1%
0.2%
30 Hz — 15 kHz, +1.0 dB
45 dB at 1 kHz
30 dB at 70 Hz — 10 kHz
17.2 dBf
530—1,710 kHz (10 kHz steps)
$22—1,611 kHz (9 kHz steps)
531—1,602 kHz (9 kHz steps),
530—1,710 kHz (10 kHz steps)
30 pV
40 dB
40 dB
40 dB
0.7%
AC 120 V, 60 Hz
AC 220 V, 60 Hz
AC 230 V, 50 Hz
AC 220-230 V and 120 V switchable,
50/60 Hz
3.5A
310 W
435 x 175 X 390 mm
17-1/8" X 6-7/8" X 15-3/8"
11.7 kg, 25.8 Ibs.
12.5 kg, 27.6 lbs.
RC-343M
RC-344S
Infrared
Approx. 5 meters, 16 ft.
Two “AA” batteries (1.5 V x 2)
Specifications and features are subject to change without notice.
