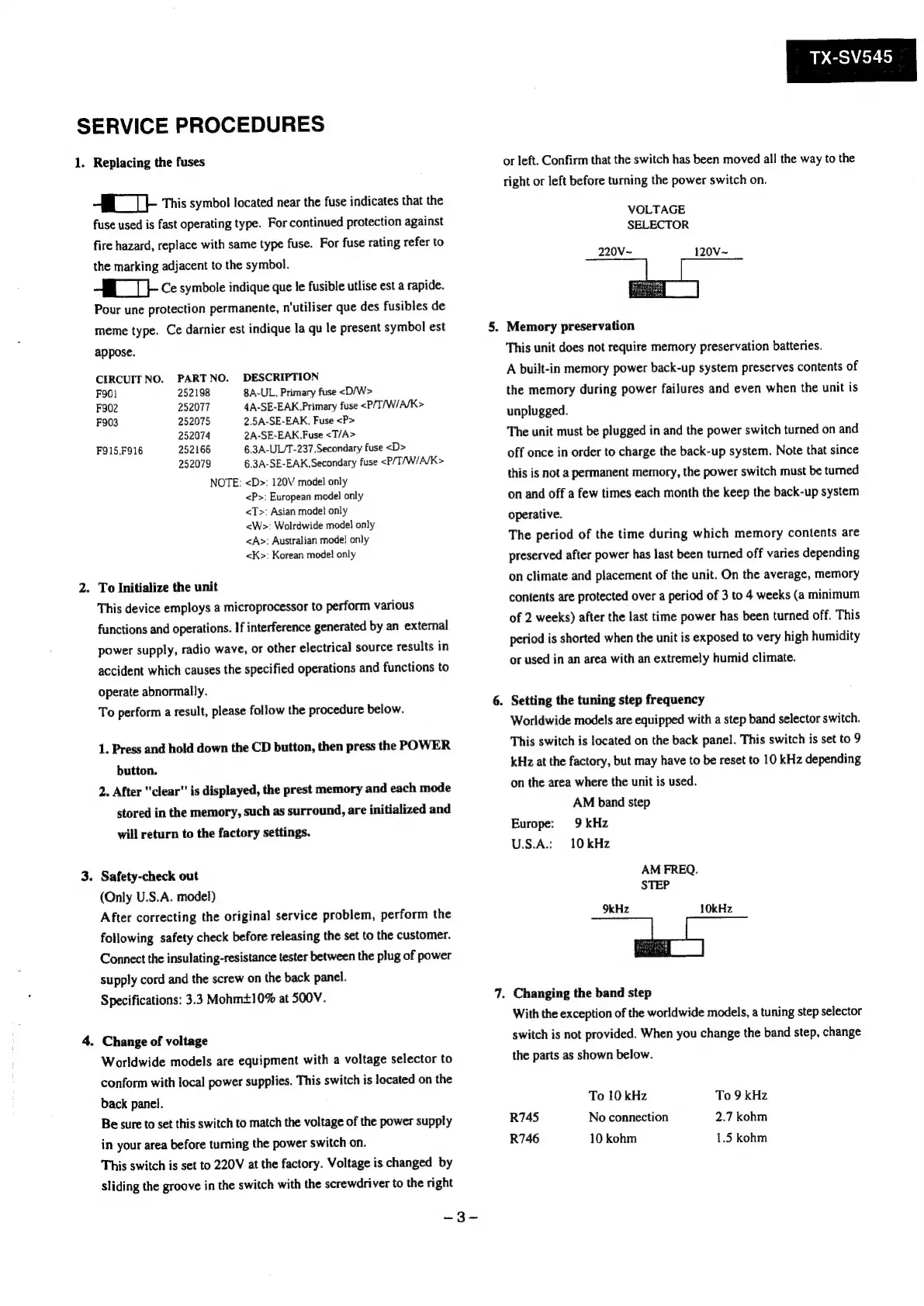

SERVICE PROCEDURES
1.
N
w
S
Replacing the fuses
TT
This
symbol
located
near
the
fuse
indicates
that
the
fuse
used
is
fast
operating
type.
For
continued
protection
against
fire
hazard,
replace
with
same
type
fuse.
For
fuse
rating
refer
to
the
marking
adjacent
to
the
symbol.
=
Es
Ce
symbole
indique
que
le
fusible
utlise
est
a
rapide.
Pour
une
protection
permanente,
n'utiliser
que
des
fusibles
de
meme
type.
Ce
darnier
est
indique
la
qu
le
present
symbol
est
appose.
CIRCUIT
NO.
PARTNO.
DESCRIPTION
F901
252198
8A-UL.,
Primary
fuse
<D/W>
F902
252077
4A-SE-EAK.
Primary
fuse
<P/T/W/A/K>
F903
252075
2.5A-SE-EAK,
Fuse
<P>
252074 2A-SE-EAK, Fuse <T/A>
F915.F916
252166
6.3A-UL/T-237,Secondary
fuse
<D>
252079
6.3A-SE-EAK,
Secondary
fuse
<P/T/W/A/K>
NOTE: <D>: 120V model only
<P>: European model only
<T>: Asian mode! only
<W>: Wolrdwide model only
<A>: Australian model only
<K>: Korean model only
To Initialize the unit
This
device
employs
a
microprocessor
to
perform
various
functions
and
operations.
If
interference
generated
by
an
external
power
supply,
radio
wave,
or
other
electrical
source
results
in
accident
which
causes
the
specified
operations
and
functions
to
operate
abnormally.
To
perform
a
result,
please
follow
the
procedure
below.
1.
Press
and
hold
down
the
CD
button,
then
press
the
POWER
button.
2.
After
"clear"
is
displayed,
the
prest
memory
and
each
mode
stored
in
the
memory,
such
as
surround,
are
initialized
and
will return to the factory settings.
Safety-check out
(Only U.S.A. model)
After
correcting
the
original
service
problem,
perform
the
following
safety
check
before
releasing
the
set
to
the
customer.
Connect
the
insulating-resistance
tester
between
the
plug
of
power
supply
cord
and
the
screw
on
the
back
panel.
Specifications: 3.3 Mohm+10% at 500V.
Change of voltage
Worldwide
models
are
equipment
with
a
voltage
selector
to
conform
with
local
power
supplies.
This
switch
is
located
on
the
back
panel.
Be
sure
to
set
this
switch
to
match
the
voltage
of
the
power
supply
in
your
area
before
turning
the
power
switch
on.
This
switch
is
set
to
220V
at
the
factory.
Voltage
is
changed
by
sliding
the
groove
in
the
switch
with
the
screwdriver
to
the
right
cm
TX-SV545
or left. Confirm that the switch has been moved all the way to the
right or left before turning the power switch on.
VOLTAGE
SELECTOR
220V~
120V~
Memory preservation
This unit does not require memory preservation batteries.
A built-in memory power back-up system preserves contents of
the
memory
during
power
failures
and
even
when
the
unit
is
unplugged.
The unit must be plugged in and the power switch turned on and
off once in order to charge the back-up system. Note that since
this
is
not
a
permanent
memory,
the
power
switch
must
be
turned
on
and
off
a
few
times
each
month
the
keep
the
back-up
system
operative.
The
period
of
the
time
during
which
memory
contents
are
preserved
after
power
has
last
been
turned
off
varies
depending
on
climate
and
placement
of
the
unit.
On
the
average,
memory
contents
are
protected
over
a
period
of
3
to
4
weeks
(a
minimum
of
2
weeks)
after
the
last
time
power
has
been
turned
off.
This
period
is
shorted
when
the
unit
is
exposed
to
very
high
humidity
or used
in
an
area
with
an
extremely
humid
climate.
Setting the tuning step frequency
Worldwide
models
are
equipped
with
a
step
band
selector
switch.
This
switch
is
located
on
the
back
panel.
This
switch
is
set
to
9
kHz
at
the
factory,
but
may
have
to
be
reset
to
10
kHz
depending
on
the
area
where
the
unit
is
used.
AM band step
Europe: 9 kHz
U.S.A.: 10kHz
AM FREQ.
STEP
9kHz 10kHz
. Changing the band step
With
the
exception
of
the
worldwide
models,
a
tuning
step
selector
switch
is
not
provided.
When
you
change
the
band
step,
change
the
parts
as
shown
below.
To 10 kHz To 9 kHz
R745 No connection 2.7 kohm
R746 10 kohm 1.5 kohm
