Onlogic HX401 - Test Results; Test Result Summary; Appendix F: Expansion Port Pinout; M.2 B-Key

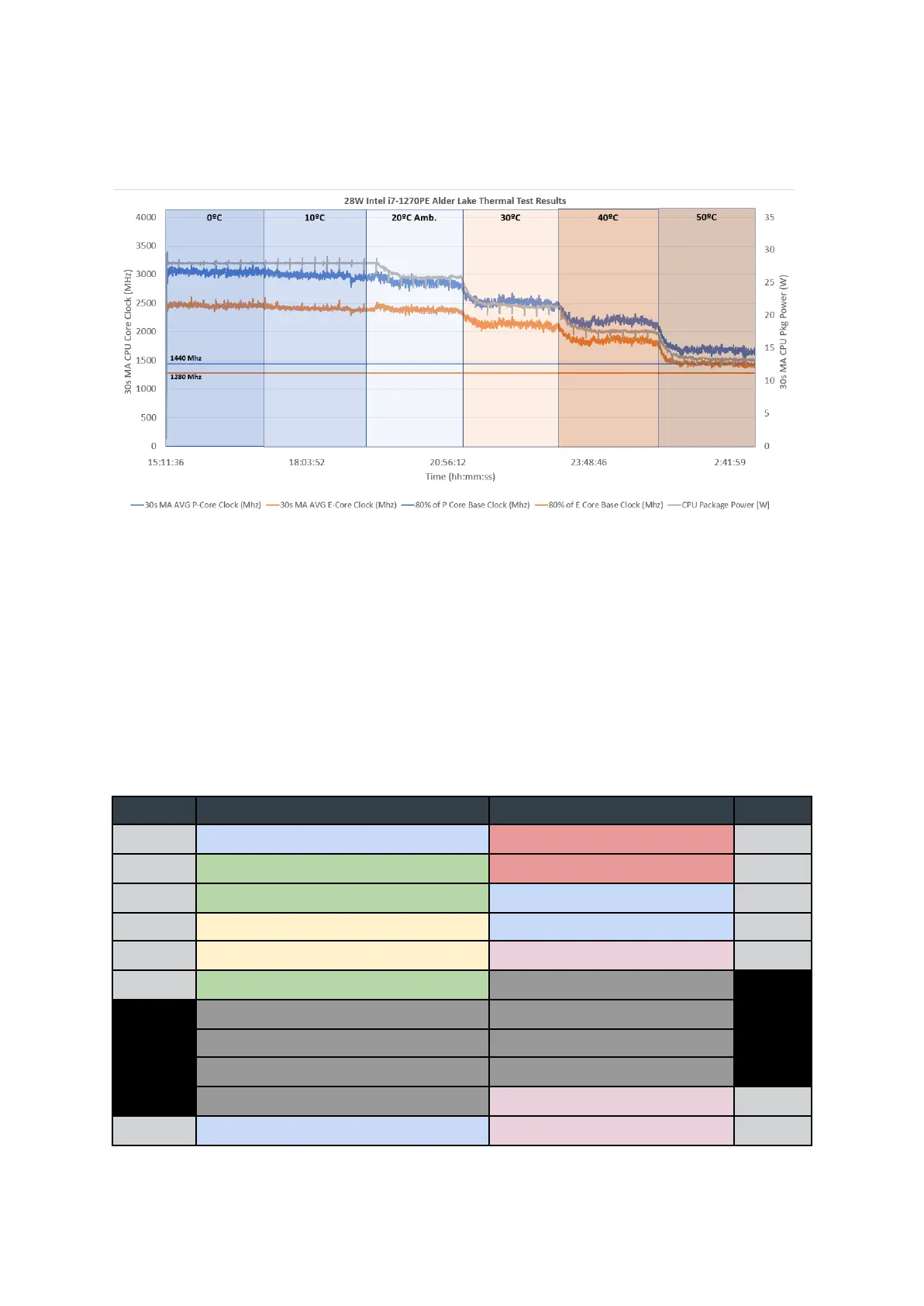

6.5.2 Test Results
6.5.3 Test Result Summary
The HX401 with i7-1270PE operated upwards of 80% of its rated base clock speeds on performance
and efficiency cores while sustaining significant processor, memory and storage stress loads in an
ambient temperature of 50ºC.
6.6 - Appendix F: Expansion port pinout
6.6.1 - M.2 B-Key
Pin
Function
Function
Pin
1
CONFIG_3
3.3V
2
3
GND
3.3V
4
5
GND
FULL_CARD_POWER_OFF#
6
7
USB 2.0 D+
W_DISABLE1#
8
9
USB 2.0 D-
NC
10
11
GND
KEY
12
13
KEY
KEY
14
15
KEY
KEY
16
17
KEY
KEY
18
19
KEY
NC
20
21
CONFIG_0
NC
22
