Onyx X Series User Manual

8 9
MACHINE SPECIFICATIONS - JX
Engine Size
Pad Diameter
Net Weight
Gross Weight
Packaged Dimension
Front Wheels
Pulley Ratio
Belt
Engine Idle RPM
Engine MAX RPM
PAD RPM
Propane Cylinder
*Varies by model.
603 CC
21 in. / 24 in. / 27 in. *
272 lb
330 lb
52 in. (L) x 30 in. (W) x 44 in. (H)
6 x 1.5 in. (x2)
4:8
BX51
2000
2900 to 3500*
1000 to 1800
20 LB Vertical Vapor
1. Engine
2. Catalytic Muer
3. Machine Deck
4. Shroud
5. Shroud Seal
6. Front Bearing Housing
7. Belt Tensioner
8. Battery
9. Electronic Box & Cover
10. Propane Tank
11. Tank Strap
12. Propane Hose w/ REGO Valve
13. Handle
14. Grips
15. Bonnet Filter

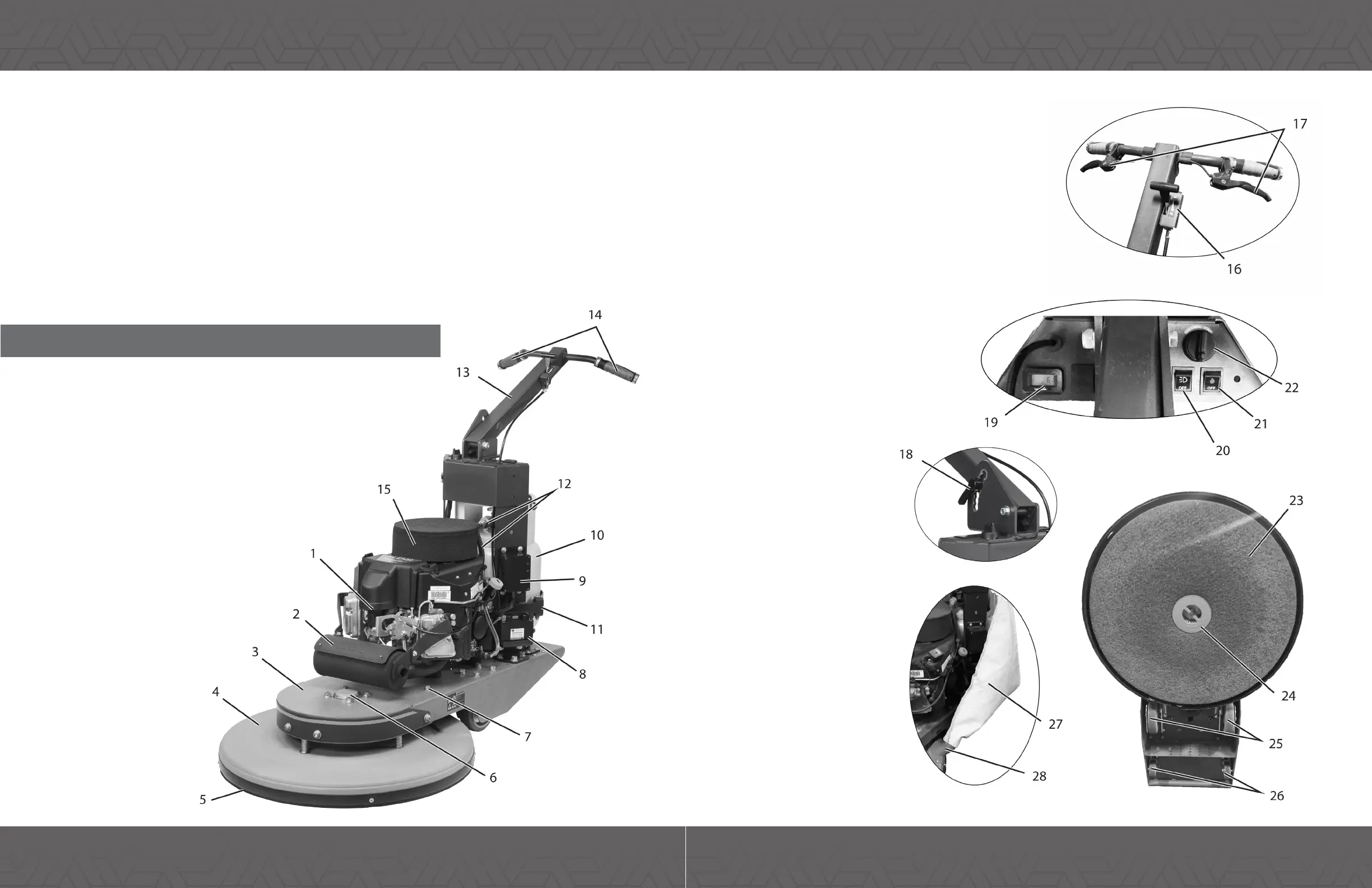

COMPONENTS & CONTROLS - JX
COMPONENTS & CONTROLS - JX
16. Engine Throttle Control
17. Clutch Handles*
18. Handle Adjustment Knob
19. Hour Meter / Tachometer
20. Headlight Switch*
21. Water Switch*
22. Ignition Switch & Key
23. Pad
24. Pad Holder
25. Front Wheels
26. Rear Casters
27. Dust Bag*
28. Dust Chute*
* Not included on all models

Onyx X Series Specifications

General

Brand	Onyx
Model	X Series
Category	Scrubber
Language	English
