2 Description
The 'OT200' ceiling hoist system consists of a number of components that are discussed in this handbook.

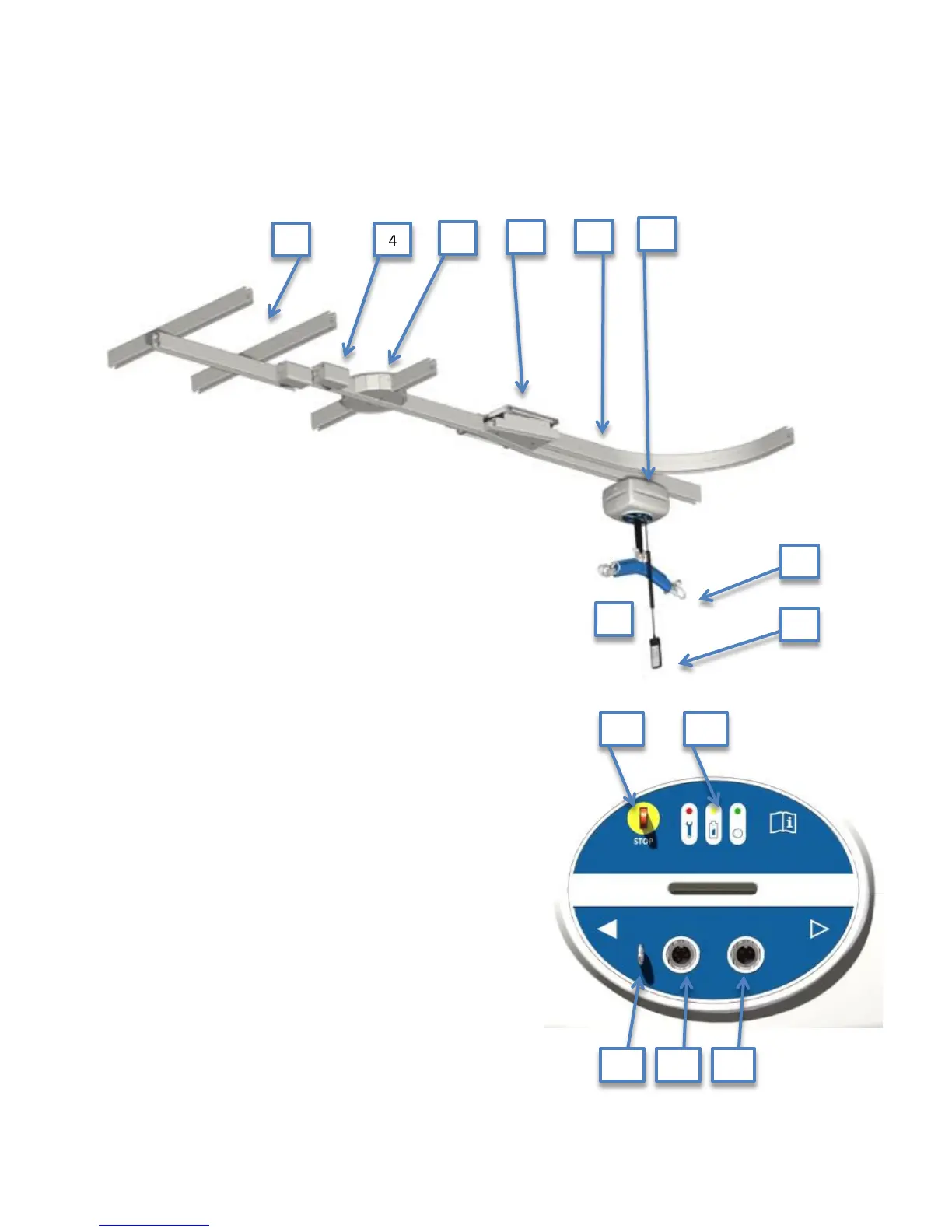

In Figure 1 shows the main components. These are described in a separate section.
Figure 1
1 OT200 Motor Cassette ....... Page 15
2 Rail System ...................... Page 10
3 X-Y System ...................... Page 10
4 Gate System ..................... Page 10
5 Turntable ......................... Page 10
6 Exchange Junction ............ Page 10
7 Spreader Bar .................... Page 11
8 Slings ............................... Page 12
9 Hand Control .................... Page 9
Figure 2
10 Emergency Stop and Lowering
11 Control LED. Green = Hoist in use.
Orange Flashing = Needs charging.
Orange Constant = On charge.
Orange Off = Battery charged.
Red Spanner = Fault
12 Connection point for handcontrol
13 Handcontrol security hook
14 Powered cradle connection point
