STANDARD CONFIGURATIONS
WIRING THE CORE SERIES 24V 4 DOOR SMART HUB
The Core Series 24V 4 Door Smart Hub (4ENT-SYS-24V) uses an FPV4 to power the
Core and 4-Port Board.

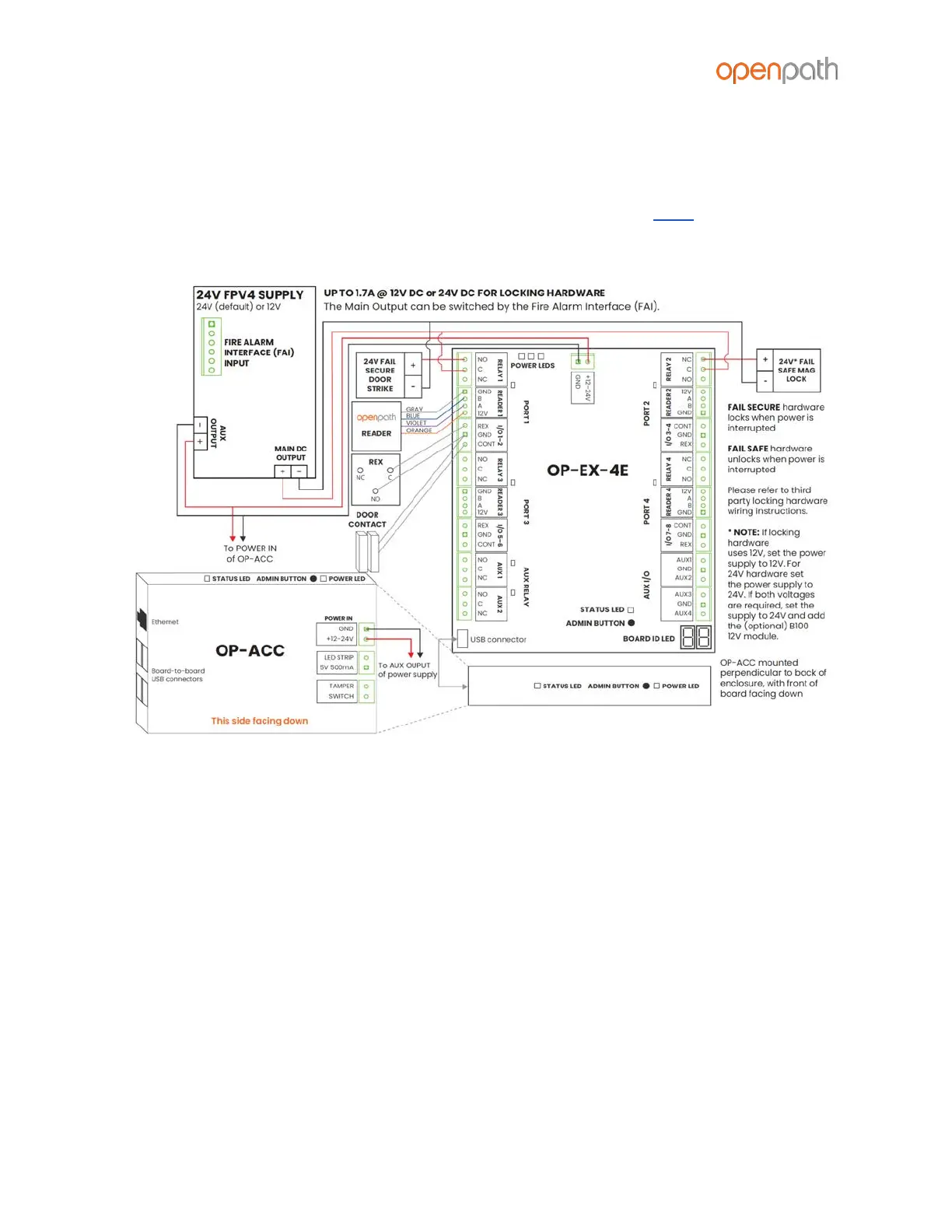

Figure 7: 4ENT-SYS-24V Wiring Diagram
