ADVANCED CONFIGURATIONS
WIRING WIEGAND READERS TO OPENPATH READERS
To support additional card credentials, biometric scanners, and PIN codes, you can
wire third party readers to the Openpath ACU via the Smart Reader’s pigtail. Simply
connect the power (red), ground (black), WD0 (green), and WD1 (white) from the
Smart Reader’s pigtail to the Wiegand reader.

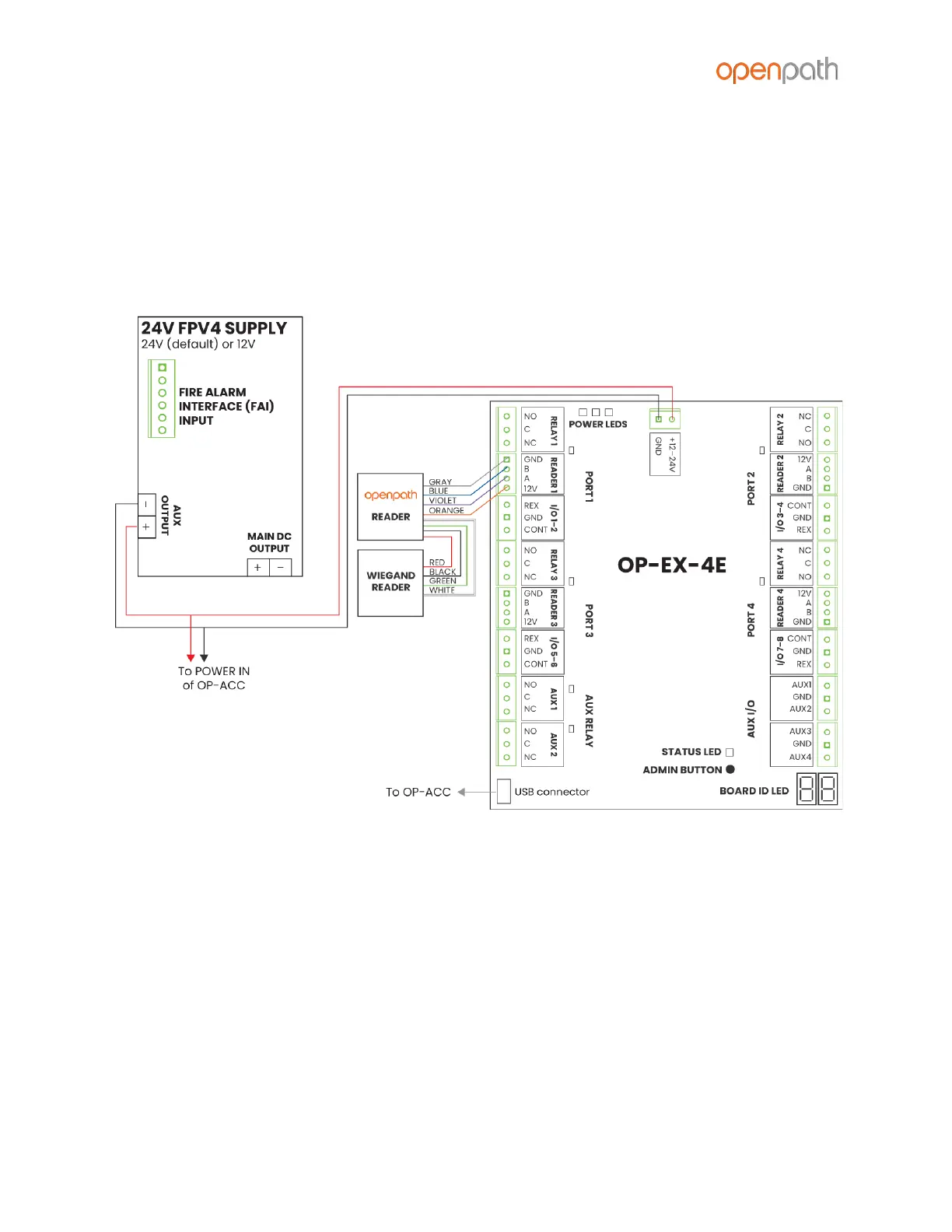

Figure 15: Wiring Wiegand Readers to Openpath Readers
