Openpath ACCESS CONTROL SYSTEM - WIRING THE CORE SERIES 24 V ELEVATOR SMART HUB

WIRING THE CORE SERIES 24V ELEVATOR SMART HUB
The Core Series 24V Elevator Smart Hub (20ENT-SYS-24V) uses an FPV4 to power the
Core, 4-Port Board, and 16 I/O Elevator Board.

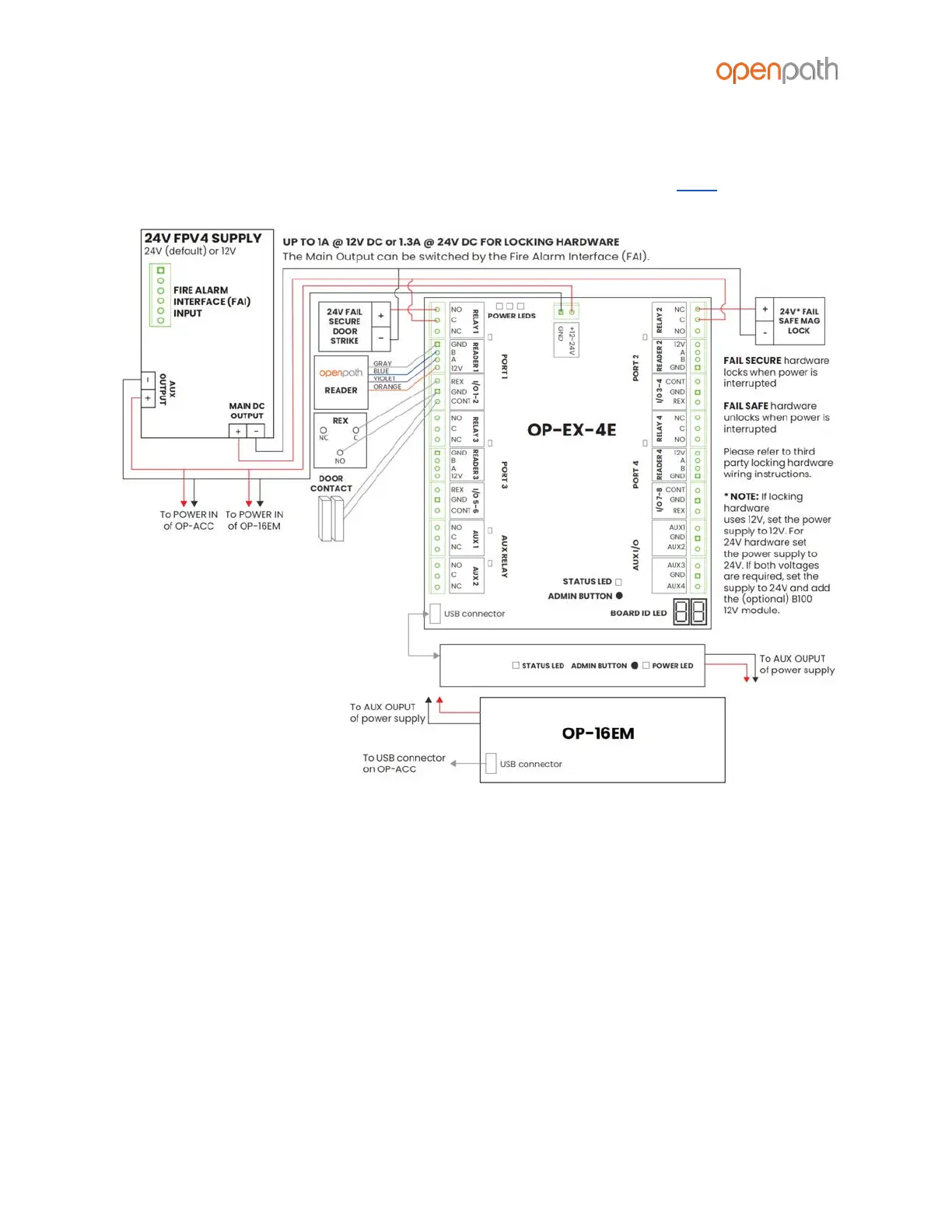

Figure 9: 20ENT-SYS-24V Wiring Diagram
Version 1.9
© Openpath 2021
Page 14
