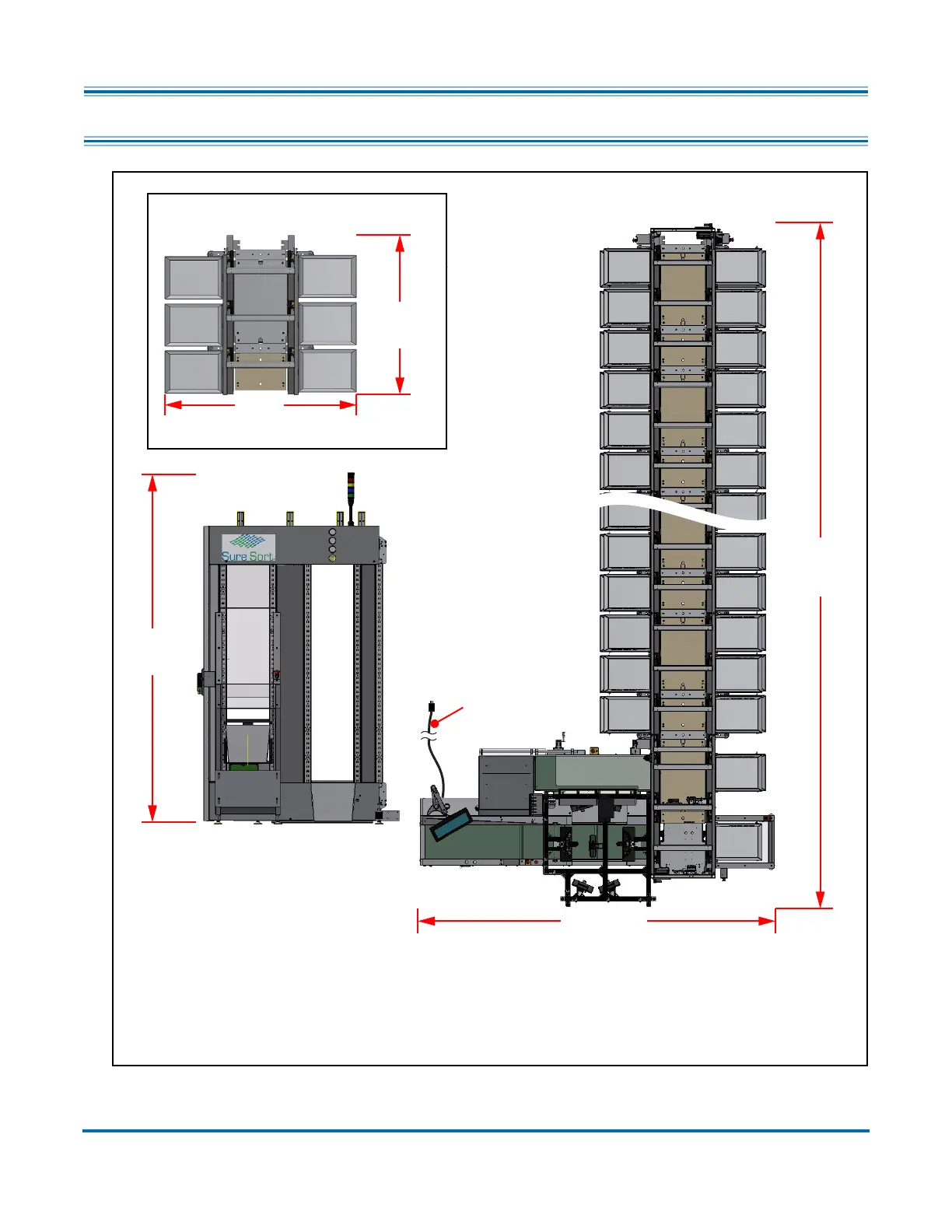

3.5. Equipment Layout and Required Floor Space
4’-3”
(130 cm)
5’-1”
(155 cm)
10’-10”
(330.2 cm)
46’-11”
(1430 cm)
Expansion module, typical
Base unit with scan tunnel and eleven
expansion modules, typical
3. There must be 18” (45.7 cm) minimum clearance from top of machine to any sprinklers
in the area.
Power
cable
8’-9”
(267 cm)
Notes:
1. All dimensions are approximate and are provided for reference only.
2. Allow for at least 36” (91.4 cm) walking/working space around all sides of machine.
Base stacker side view
