5.2 Exploded view of TF16-HT / TF16-HT-N sensor

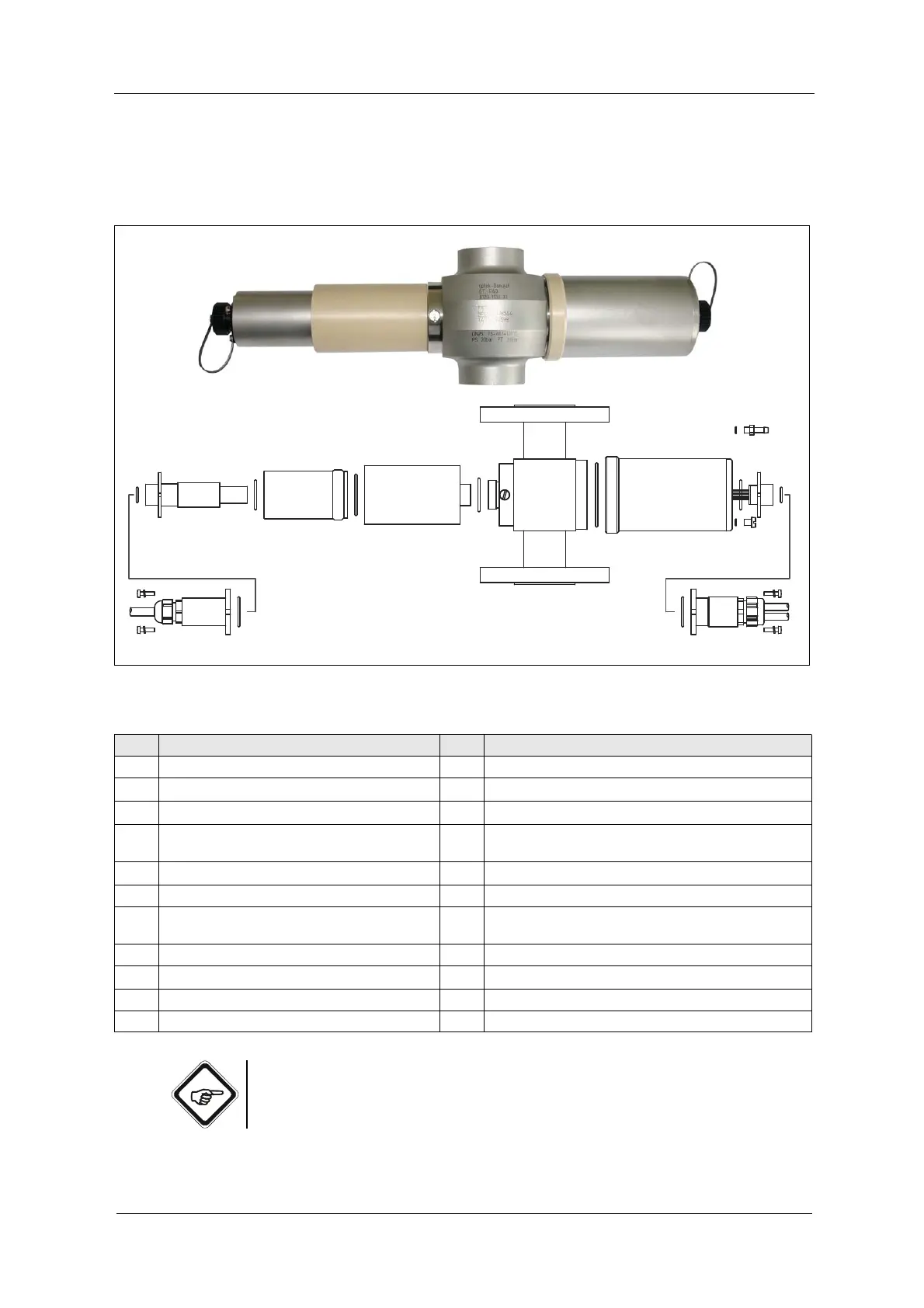

Fig. 5 Photo and exploded view of TF16-HT / TF16-HT-N
Note!
For TF16-HT, the cable set always has to be equipped with plug-protection.
5876 4 3211312 14
20 21
20 22
719 18
79159
18 17 7
Tab. 6 Exploded view explanations
No. Explanation No. Explanation
1 Sensor body 12 Window ring M58 x 1.5, incl. 8 screws M5
2 Window ring M24 x 1.5, incl. 8 screws M5 13
O-Ring 50.52 x 1.78, Viton
®
3
O-Ring 25.12 x 1.78, Viton
®
14 Detector assembly TF16-HT, 1.4571 (316 Ti) / PEEK
4
Lamp adapter TF16-HT, PEEK, incl. wavelength
module (see table 13 on page 28)
15 Detector socket, 9-pin
5
O-Ring 31.47 x 1.78, Viton
®
16 -
6 Optical housing OH06, 1.4571 (316Ti) 17 Lamp cable TF16 with SS-plug-protection
7
O-Ring 21.95 x 1.78, Viton
®
18
4 screws M3 x 12 (DIN 7985), 1.4571 (316Ti),
incl. washer
8 lamp module TF16 19 Detector cable TF16 with SS-plug-protection
9
O-Ring 10.10 x 1.60, Viton
Æ
20
O-Ring 4.00 x 1.00 Viton
®
10 - 21 Screw M5 x 6 (DIN 84), 1.4571 (316 Ti)
11 - 22 Purge connection M5, Ms/Ni
