5.4 Exploded view of TF16-HT-PV / TF16-HT-PV-N sensor

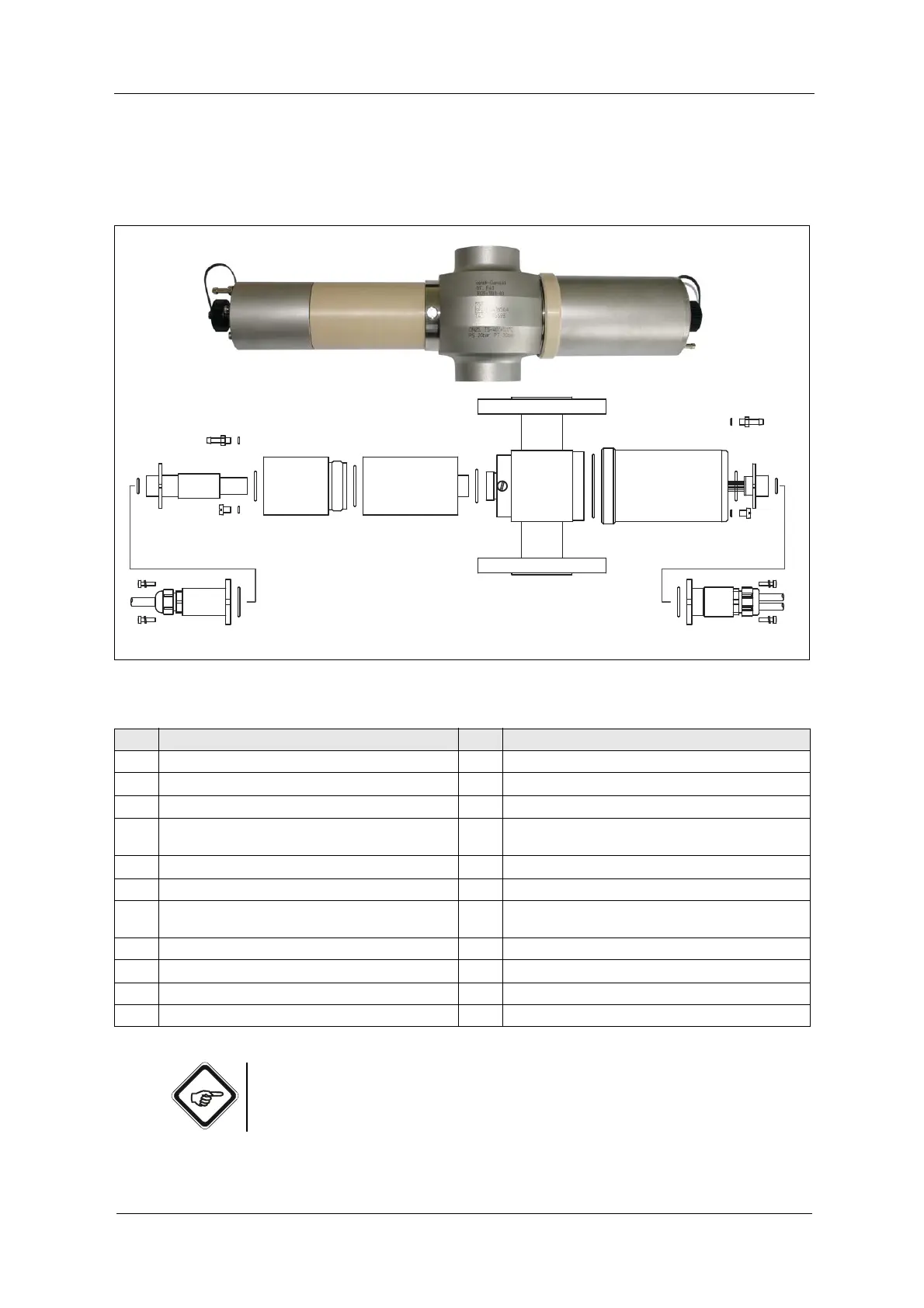

Fig. 7 Photo and exploded view of TF16-HT-PV / TF16-HT-PV-N
Note!
For TF16-HT-PV, the cable set always has to be equipped with plug-protection.
18
9
17 7
786453
18719
2 1 12 13 14 157
20 21
9
20 22
22 20
21 20
Tab. 8 Exploded view explanations
No. Explanation No. Explanation
1 Sensor body 12 Window ring M58 x 1.5, incl. 8 screws M5
2 Window ring M24 x 1.5, incl. 8 screws M5 13
O-Ring 50.52 x 1.78, Viton
®
3
O-Ring 25.12 x 1.78, Viton
®
14 Detector assembly TF16-HT, 1.4571 (316 Ti) / PEEK
4
Lamp adapter TF16-HT, PEEK, incl. wavelength
module (see table 13 on page 28)
15 Detector socket, 9-pin
5
O-Ring 31.47 x 1.78, Viton
®
16 -
6 Optical housing OP06 Purge, 1.4571 (316Ti) 17 Lamp cable TF16 with SS-plug-protection
7
O-Ring 21.95 x 1.78, Viton
®
18
4 screws M3 x 12 (DIN 7985), 1.4571 (316Ti), incl.
washer
8 lamp module TF16 19 Detector cable TF16 with SS-plug-protection
9
O-Ring 10.10 x 1.60, Viton
®
20
O-Ring 4.00 x 1.00 Viton
®
10 - 21 Screw M5 x 6 (DIN 84), 1.4571 (316 Ti)
11 - 22 Purge connection M5, Ms/Ni
