Optek TF16 - Exploded View of TF16; TF16-N Sensor

Technical data and exploded views
- 11 -
optek-Manual--1004-2006-02--TF16-US-2011-06-20
www.optek.com
5.1 Exploded view of TF16 / TF16-N sensor

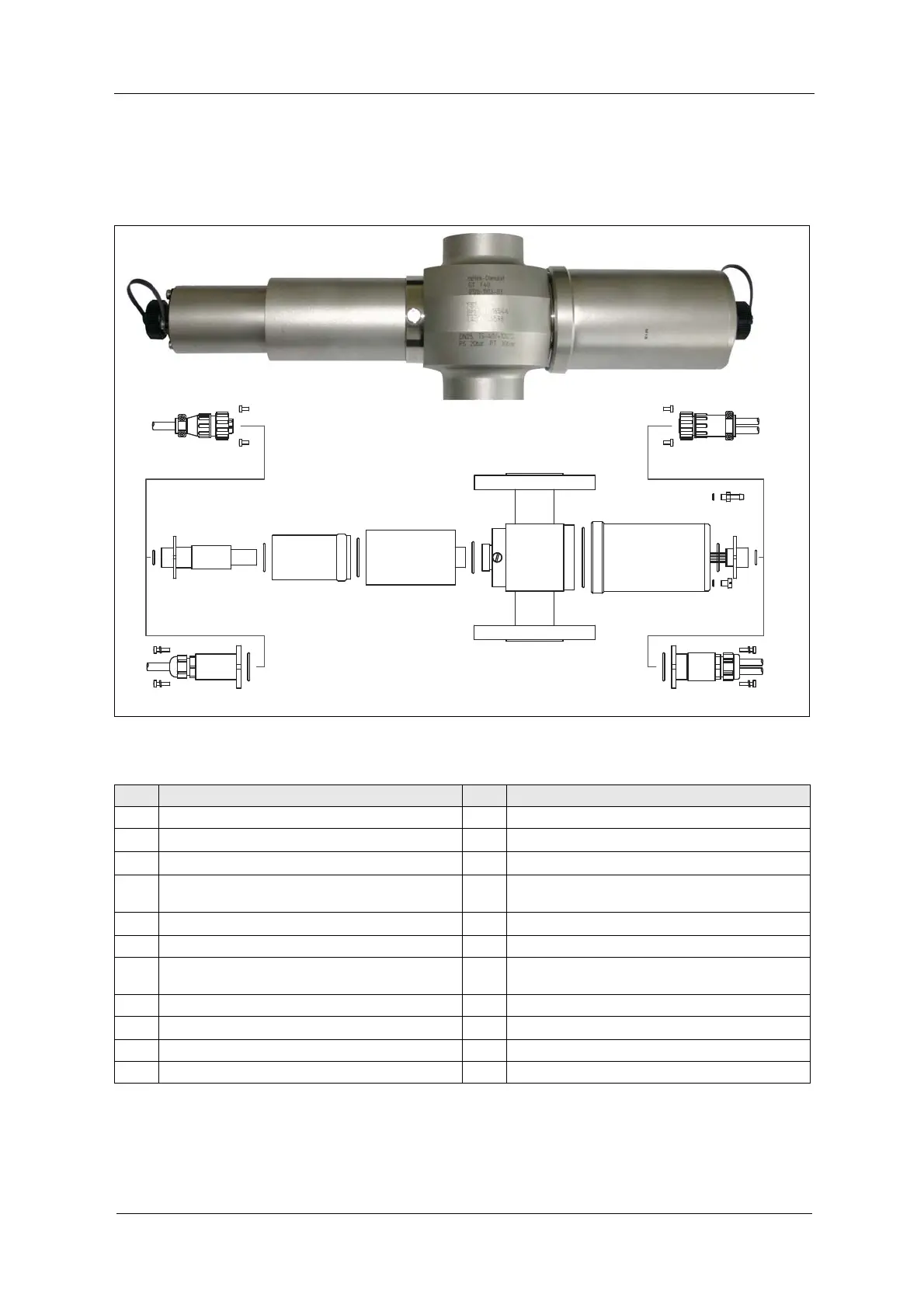

Fig. 4 Photo and exploded view of TF16 / TF16-N
5876 4 3211312 14
20 21
20 22
10 16
719 18
7915
11 1 0
9
18 17 7
Tab. 5 Exploded view explanations
No Explanation No Explanation
1 Sensor body 12 Window ring M58 x 1.5, incl. 8 screws M5
2 Window ring M24 x 1.5, incl. 8 screws M5 13
O-Ring 50.52 x 1.78, Viton
®
3
O-Ring 25.12 x 1.78, Viton
®
14 Detector assembly TF16, 1.4571 (316 Ti)
4
Lamp adapter TF16, 1.4571 (316 Ti), incl.
wavelength module (see Table 13 on page 28)
15 Detector socket, 9-pin
5
O-Ring 31.47 x 1.78, Viton
®
16 Detector cable TF16
6 Optical housing OH06, 1.4571 (316Ti) 17 Lamp cable TF16 with SS-plug-protection
7
O-Ring 21.95 x 1.78, Viton
®
18
4 screws M3 x 12 (DIN 7985), 1.4571 (316Ti), incl.
washer
8 lamp module TF16 19 Detector cable TF16 with SS-plug-protection
9
O-Ring 10.10 x 1.60, Viton
®
20
O-Ring 4.00 x 1.00 Viton
®
10 4 screws M3 x 6 (DIN 7985), 1.4571 (316Ti) 21 Screw M5 x 6 (DIN 84), 1.4571 (316 Ti)
11 Lamp cable TF16 22 Purge connection M5, Ms/Ni
