7 Connection to converter C4000
For connecting the sensor cables, observe the following basic conditions:
• Bring the sensor cable to the cable entry from underneath.
• Form a loop with the sensor cable close to the cable entry.
• Do not lay sensor cables in ducts of current-carrying lines.
• Observe cable specifications (see technical data).
• To lay sensor cables underground without protection is prohibited.
For the connection of the sensor to the converter, there are sensor cables with
plug-protection on the sensor side (17, 19; fig. 11) or without plug-
protection (11, 16).
Connection to the
sensor
On the sensor side, mixing up sensor cables is not possible, as plugs are
distinctive:
• 9-pin plug on the detector side (16, 19),
• 4-pin plug on the lamp side (11, 17)

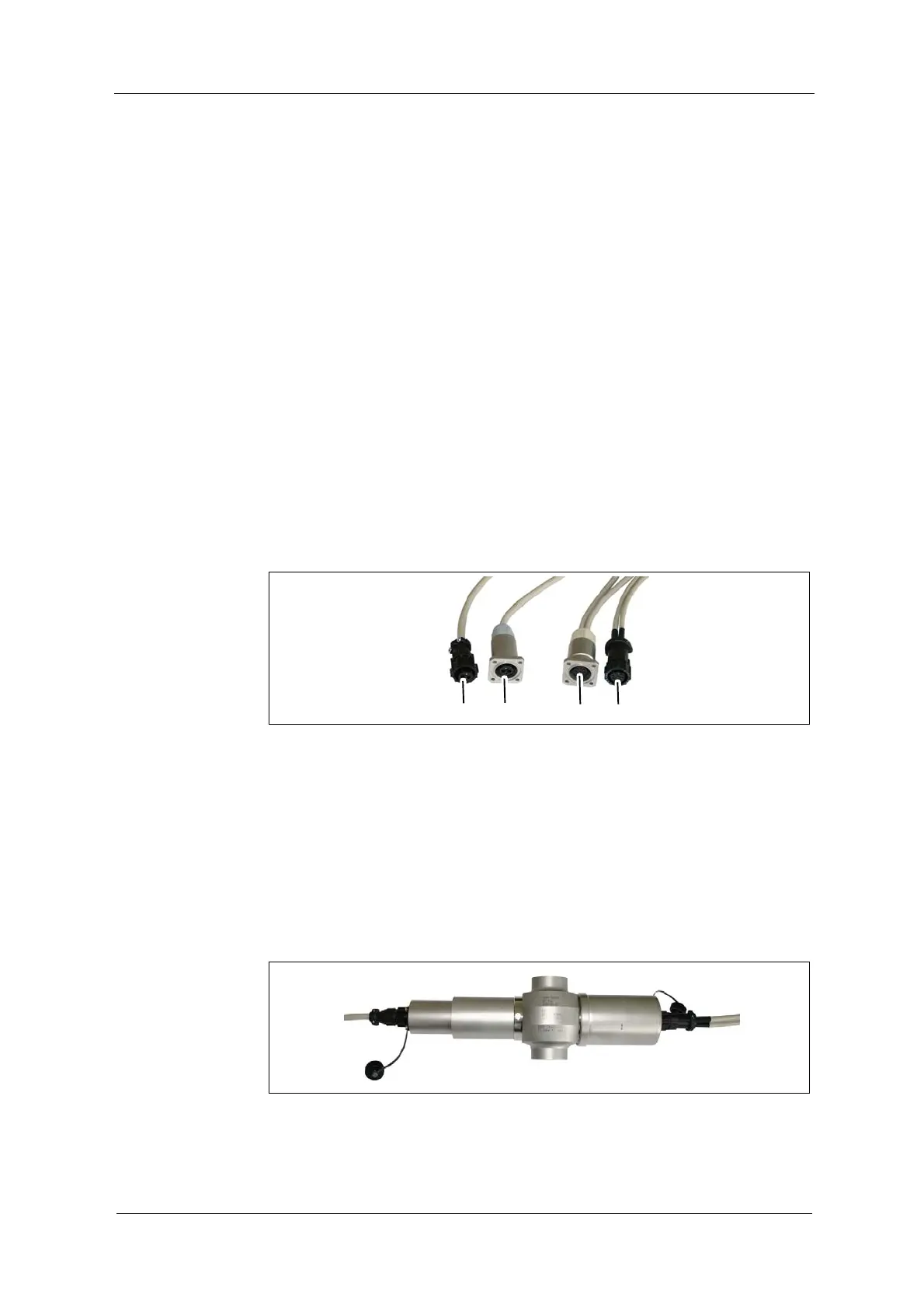

Fig. 11 Plug with and without plug-protection
Tool
• not needed
Connection of the sensor cable without plug-protection on the detector and lamp
side:
1. Loosen the connection cover of the sensor.
2. Plug in the sensor cable.
3. Screw-tighten the protection cover.
Fig. 12 Connection of the sensor cable without plug-protection
