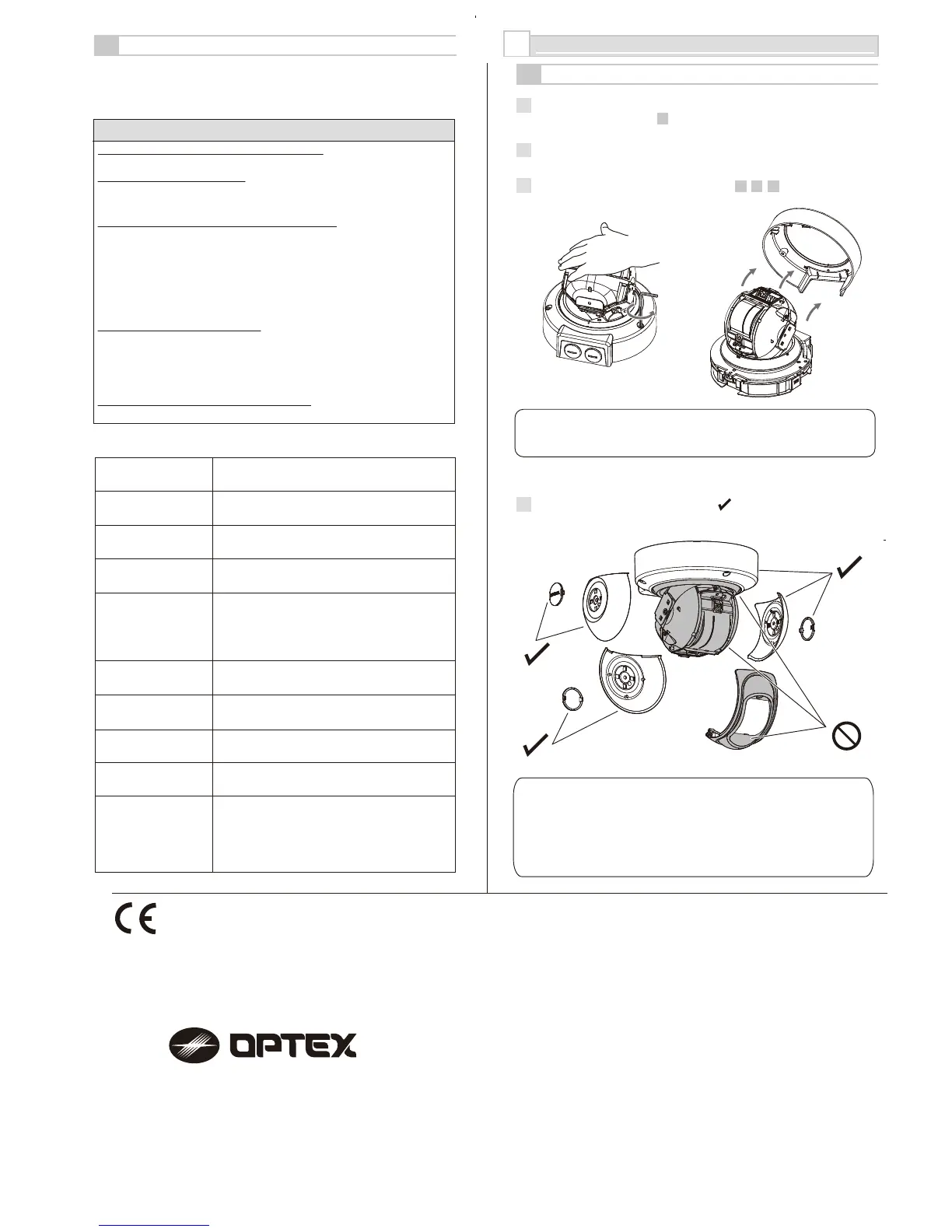

Remove the side cover cap, side cover L and side
cover Ss. (refer to 2-2 1 )
Remove the base cover. (refer to 2-2 2 3 4 )
Remove the front cover. (refer to 3-1)
Paint the following parts. (refer to marks as follows)
Use the suitable paint for poly-carbonate resin.
Note >>
Do not paint the front cover, the laser window or the base unit.
Painting the RLS-2020 S a dark color could raise the internal
temperature and cause a malfunction.
Painting should be avoided if there is any possibility that
the unit would be exposed to direct sunlight.
9
APPENDIX
9-1
REPAINTING
1
2
3
4
Note >>
Be careful not to lose the removed washer.
1.
2.
3.
8-2
OPTIONS
LAC-1 : Laser area checker
RLS-PB : Pole mounting bracket
RLS-RB : Recessed mount kit
RLS-LW : REDSCAN mini laser window
- In case of using DC power supply
UL required the main unit to be connected to a UL listed PoE injector or switch
and the PoE must be connected to a UL listed (UTRZ) UPS with output rating of
100-240 VAC, 1.0 A and 24 hours standby.
UL Statement
- For UL Listed installation applications
The relay outputs shall be connected to a compatible UL Listed control panel.
The equipment shall be installed in accordance with the National Electrical Code
NFPA 70.
- UL testing was conduted at temperature range of
0°C to 49°C for RLS-2020I, and -35°C to 66°C for RLS-2020S.
UL required the main unit to be connected to a UL listed power supply Class 2,
capable of providing a norminal input of 10.5-30 VDC 500 mA and battery standby
time of 4 hours.
- In case of using PoE injector or switch for power supply
UL testing was conducted with product powered from the following Listed POE:
Manufacturer: PHIHONG, Model: POE36U-1AT-R, Input: 100-240 VAC, 1.0 A, Output: 56 V - 0.6 A
UL approved the PoE connection as supplemental.
The PoE cannot be used to monitor the device.
- UL approved indoor modeandoutdoormodeonly.
Indoor high resolution mode and Indoor throw-in mode has not evaluated by UL.
The signal input cannot be connected to alarm output to reduce the risk of
false alarm.
EN 50131-1 Grades and Environmental Class:
Security Grade 3, Environment ClassII TS50131-2-11
