Opti-Sciences, Inc. CCM-200 plus operator's manual

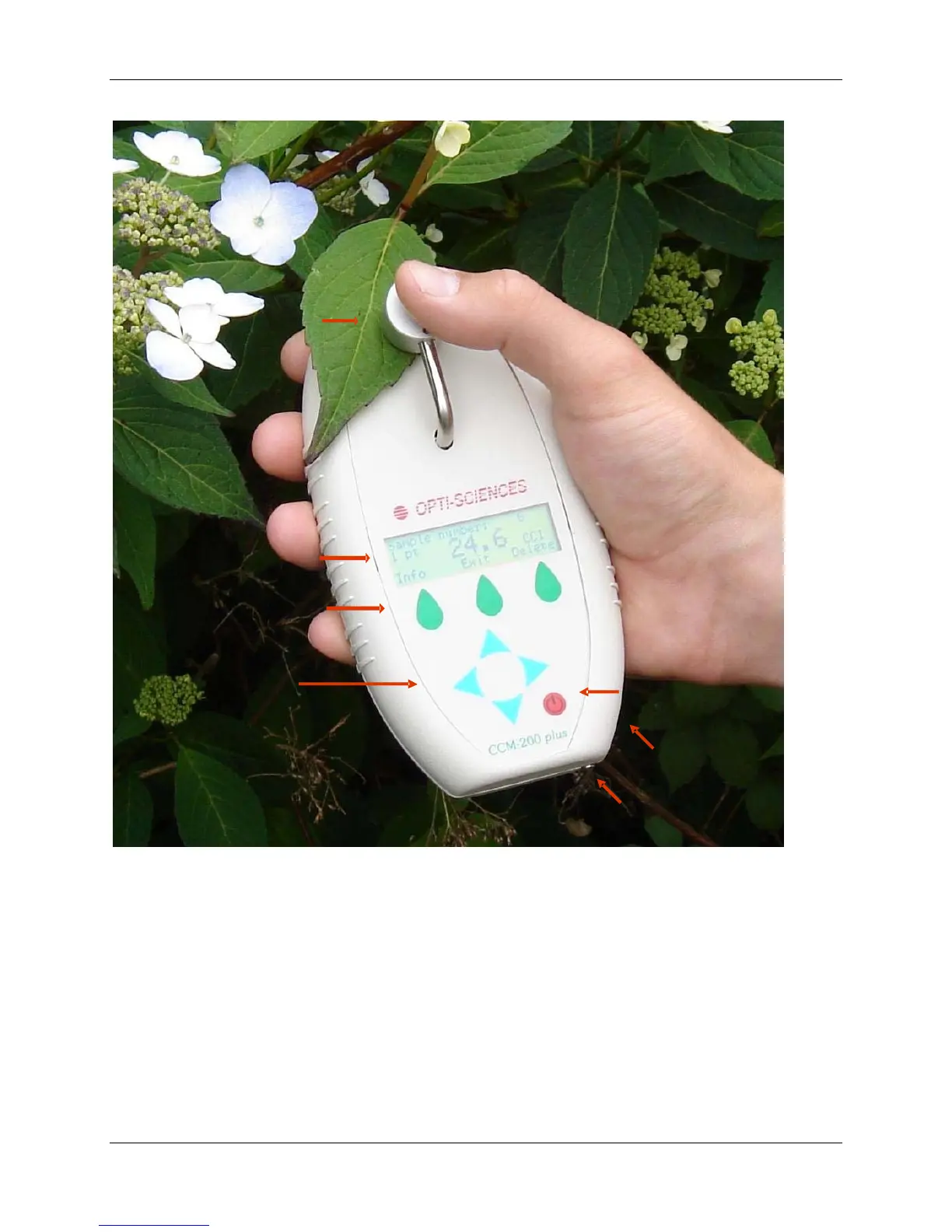

Physical Features
Measuring lever
Display screen
Selection buttons
On - off button
Arrow keys
USB port
GPS port
Operation Overview
The CCM-200 plus is a self-contained, handheld device powered by a 9V alkaline battery. The
sample head is located at the top of the instrument. A liquid crystal display (LCD) is located near
the center of the unit. The power switch is at the bottom of the front panel. Seven menu / control
keys are used to access all program functions.
Program flow is organized into 3 menu groups. The MENU key will step through the selections.
Press ENTER to accept the currently displayed value. Remaining keys are used within each
mode as later described.
A USB port is located at the bottom right hand side of the case and allows the user to export data
to a PC. A RS232 port is included on the bottom for use with GPS, and it can also be used for
data transfer.
