INSTALLATION
If the unit is placed in a narrow room or in the ridge of a gable roof, the fan outlet side can be installed at
the short side of the unit. This can be done simply by reversing the dark panels so that the fan panel is moved
around to the short side of the unit. Loosening the corner bracket will eliminate the need for disconnecting
cable connections.

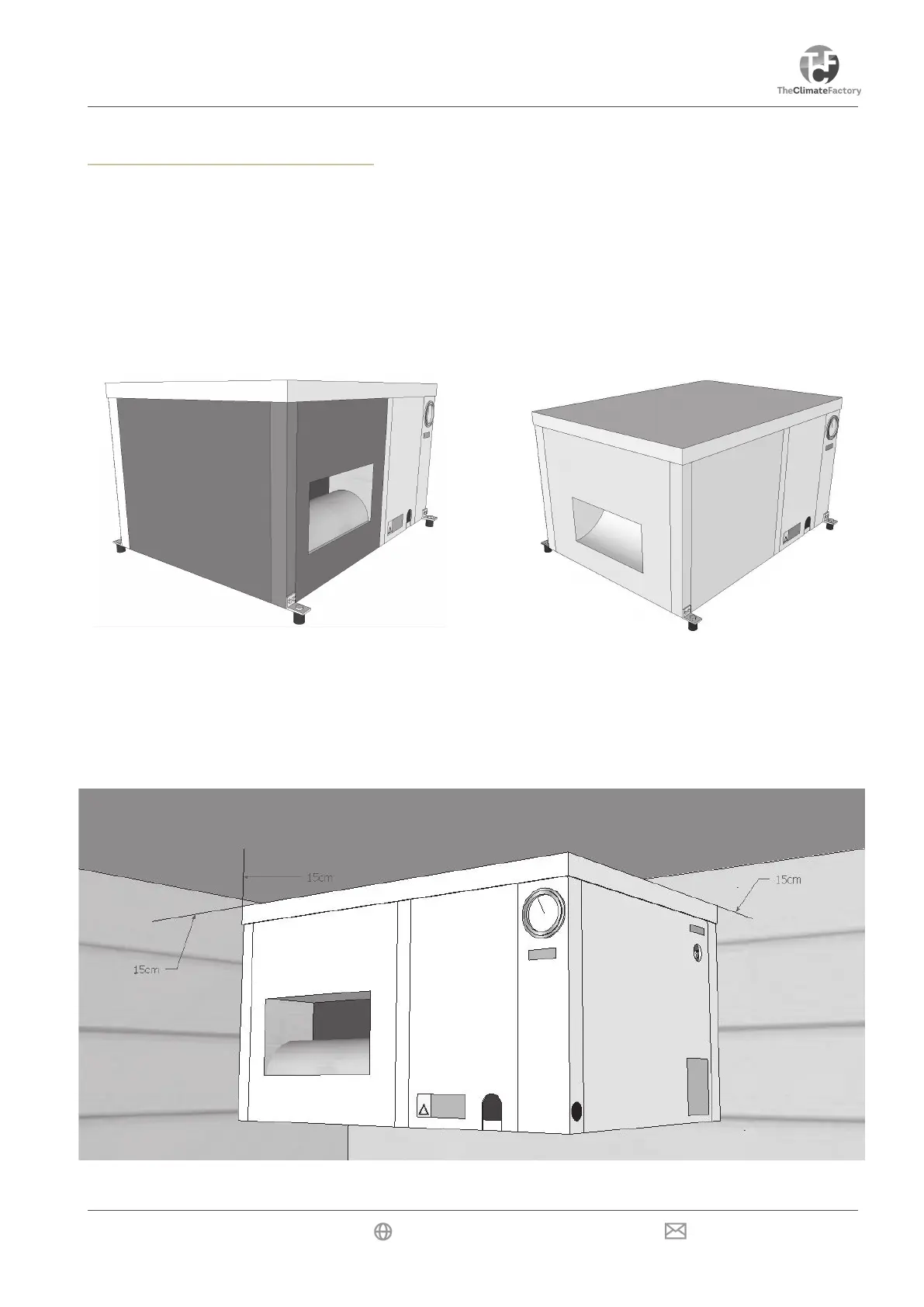

Fan installation (front / side)
Installation
To guarantee proper air suction, leave at least 15cm of space between the wall and the backside of the unit,
where the carbon & dust filters and air inlet are located. At least 15cm of space should also be left between
the topside of the unit and the ceiling. Larger spaces are preferred. The unit must stand free from the wall to
avoid contact noises.
