ELECTRICAL CONNECTION

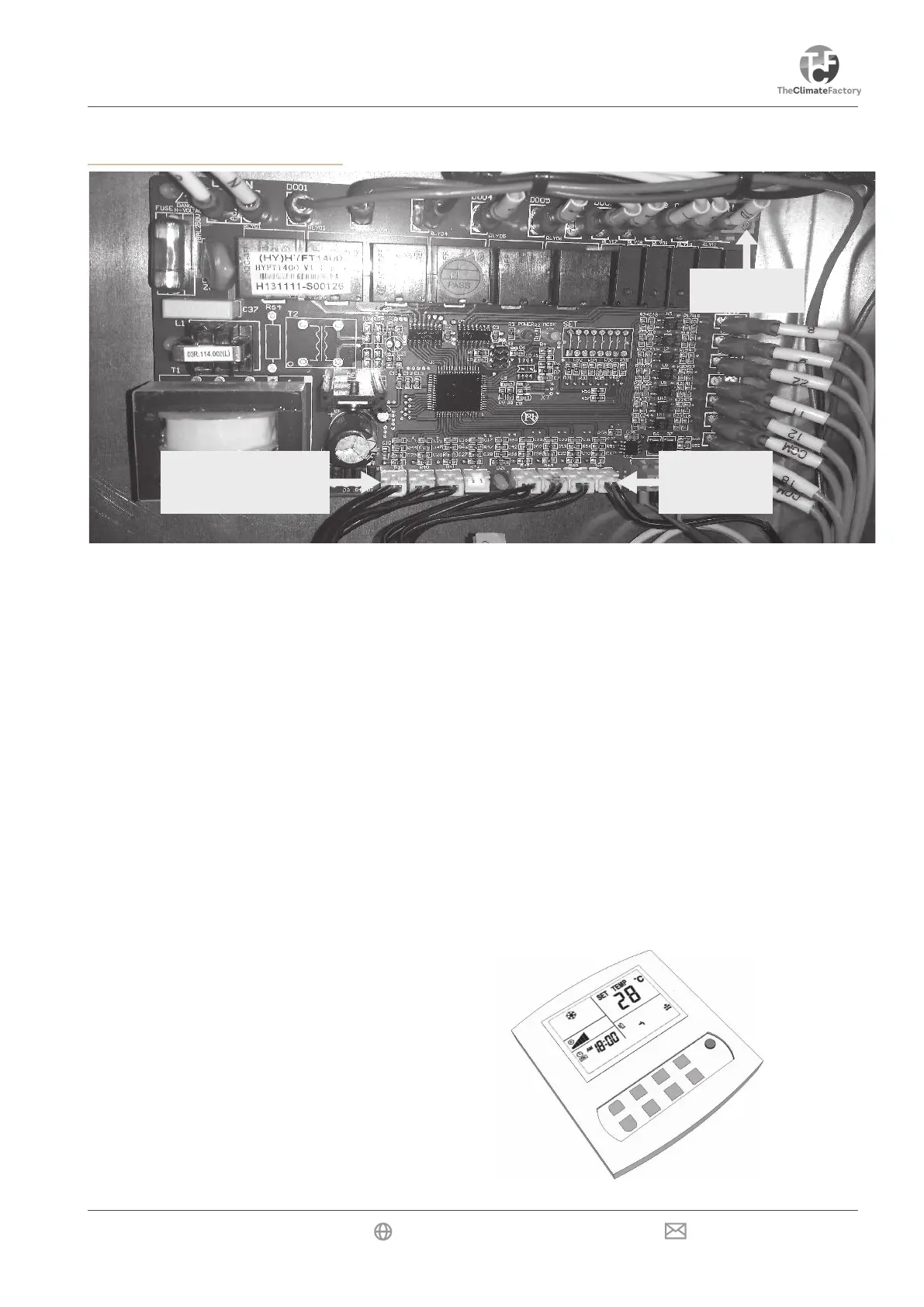

Sensor de temperatura
ambiente A101
Sensor de fuga
de agua A108
Puerto de
alarma
Alarm port
The printed circuit-board has an alarm port, which is activated (makes contact) by a malfunction (error). This
contact can be connected to a GSM detector. The contact can be set to NO (contact open) or NC (contact
closed) using the Settings menu This means that the contact will be opened or closed in case of detection.
See the manual of the GSM detector or alarm for this.
Automatic moisture meter with light cell
The automatic moisture meter with built-in light cell supplied with the unit is already connected. The cable
should be led through the opening in the panel. The automatic moisture meter should be hung in the room
and may NOT be covered. The light cell in the automatic moisture meter automatically switches the OptiCli-
mate from day to night mode.
Room temperature sensor
The compartment also has a room temperature sensor, which is already connected to the printed cir-
cuit-board. This sensor should be led to the outside through the opening in the panel and should be hung at
the level of the upper side of the vegetation. The sensor should be protected against heat radiation but may
not be put in the shade. A protective cover over the sensor is sufficient.
The remote control
The remote control contained in the compartment can be
hung in the room but can also be hung elsewhere. This
way the OptiClimate can also be controlled from outside
the room. The four-core cable is already connected and
should be led to the outside through the opening in the
panel.
