ELECTRICAL CONNECTION
Power cables and circuit breakers
Six different OptiClimate models are available. For your safety and the safety of the OptiClimate, the fo-
llowing specifications should be observed when connecting the power supply: use the circuit breakers (MCB)
and cable thickness specified.
Models
2000 PRO3 & PRO4 1 phase D16 2,5mm2 de cable
2000 PRO3 & PRO4 3 phase D16 2,5mm2 de cable
3500 PRO3 & PRO4 1 phase D16 2,5mm2 de cable
3500 PRO3 & PRO4 3 phase D10 2,5mm2 de cable
6000 PRO3 & PRO4 1 phase D25 4,0mm2 de cable
6000 PRO3 & PRO4 3 phase D16 2,5mm2 de cable
10000 PRO3 & PRO4 1 phase D35 4,0mm2 de cable
10000 PRO3 & PRO4 3 phase D20 2,5mm2 de cable
15000 PRO3 & PRO4 1 phase D50 6,0mm2 de cable
15000 PRO3 & PRO4 3 phase D35 4,0mm2 de cable
15000 PRO3 & PRO4 3 phase D25 4,0mm2 de cable *
*The compressor of this unit is divided over 3 phases

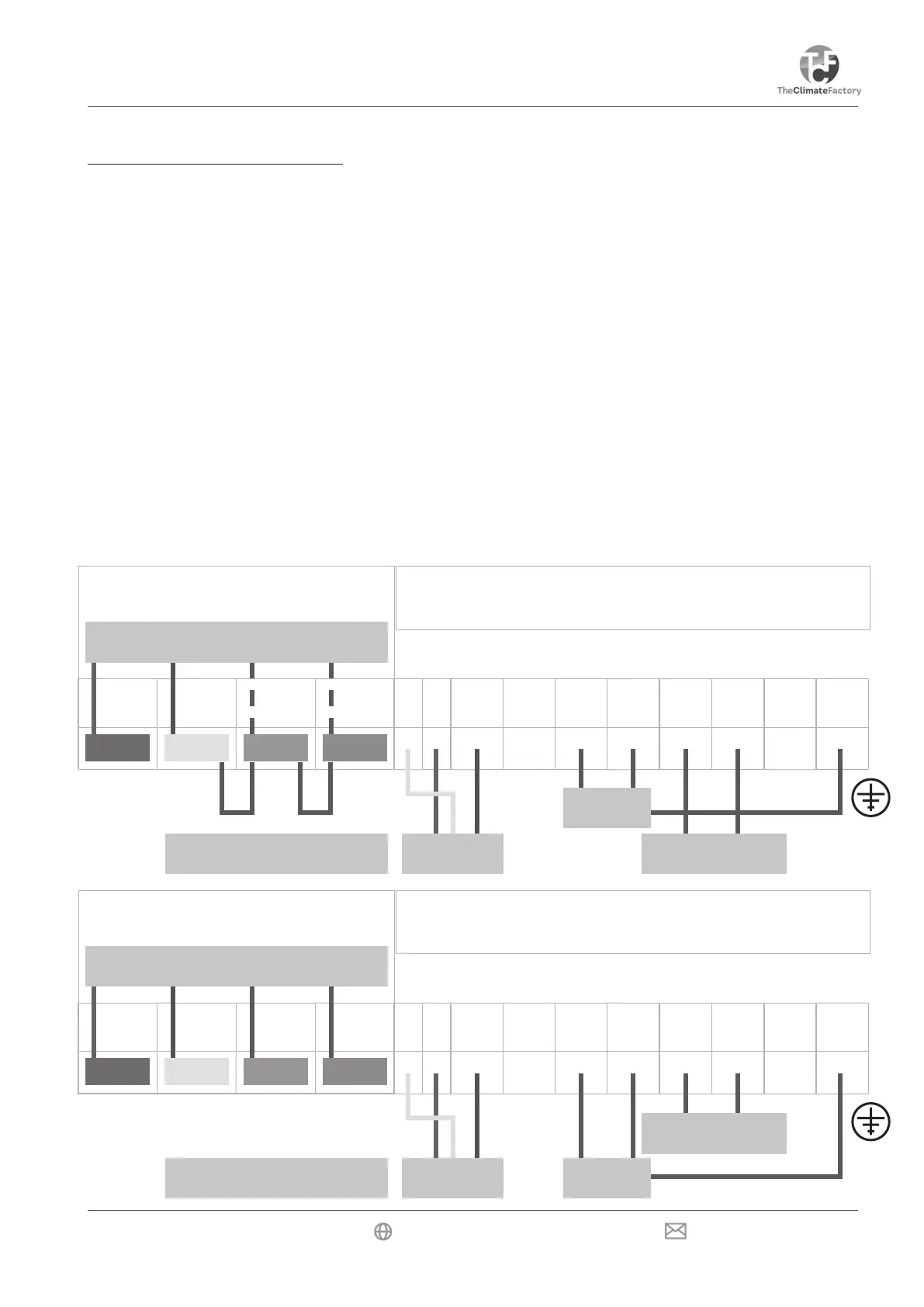

The cables for the supply voltage should be led through the feed-through rubber at the side and connected to
the left-hand side of the terminal strip as described in the illustration. The earthing can be connected to the PE
terminal or to the screw on the metal housing at the bottom right of the terminal strip.
N 7 15L1 16L2 12L3
14
(COM)
18
P
E
N
N 7 15L1 16L2 12L3
14
(COM)
18
P
E
N
Connec-
ting to the
terminal
strips left
corner
Connecting to the terminal strips right corner
Connecting to the terminal strips left
corner
Connecting to the terminal strips right corner
230V 3 Phase
blue yellow
green
red
2 loops with 230V 1 phase
Solenoid valve
The automatic
moisture meter
Temperature safeguard
400V 3 Phase
blue yellow
green
red
No loops with 400V 3 phase
Solenoid valve
The automatic
moisture meter
Temperature safeguard
Earthing
Earthing
