First, the panel at the left side near the manometer should be removed to make the various electrical connec-
tions. A magnetic valve, water leakage sensor, automatic moisture meter, remote control and room
temperature sensor are supplied with the unit. Their cables can be led to the outside through the opening at
the bottom of the panel. The power cable for the power supply can be led through the black feed-through
rubber at the side of the unit.
Automatic moisture meter, Re-
mote Control, Solenoid Valve,
Temperature Safeguard, tem-
perature sensors in the area
Power cord

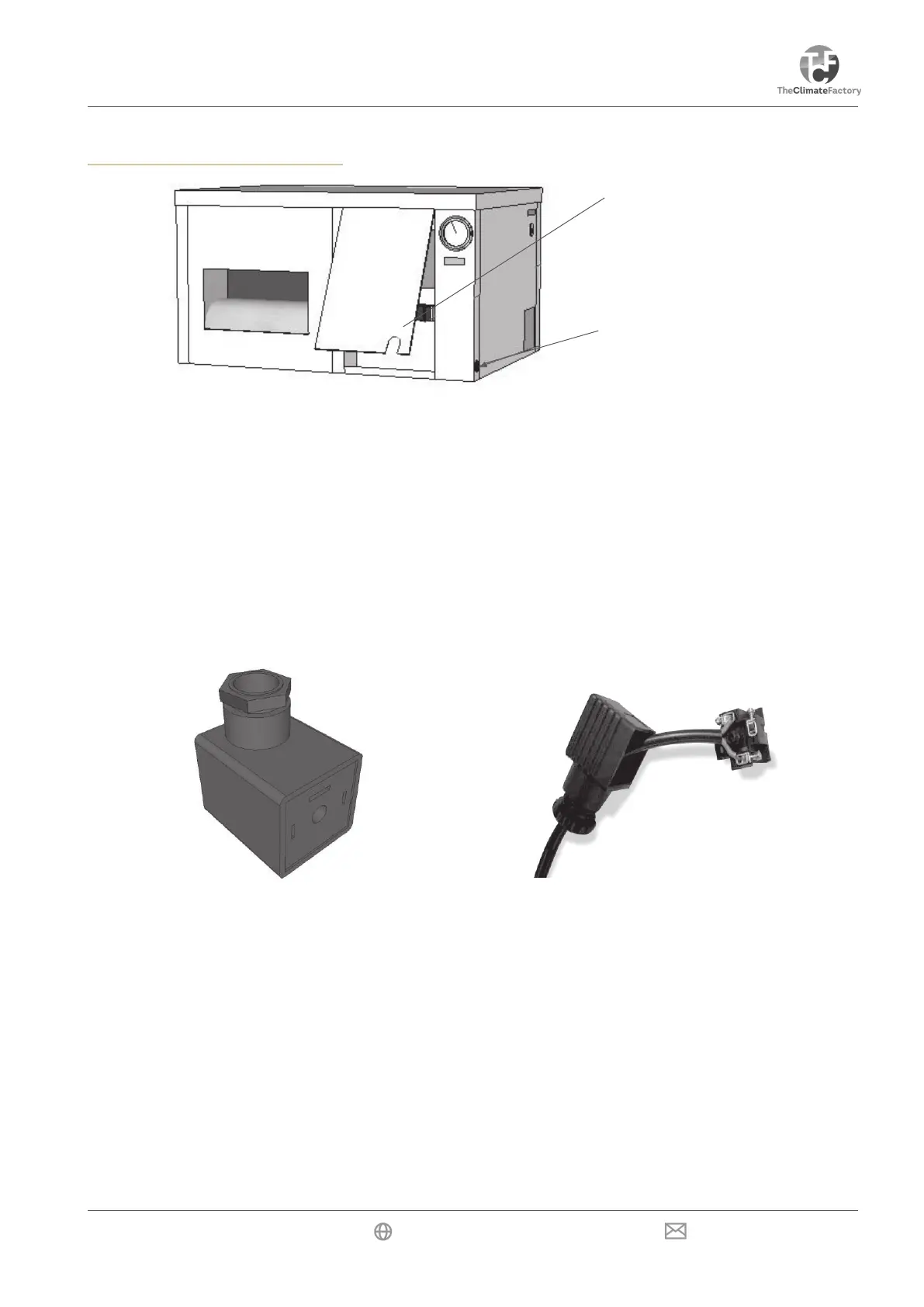

The plug of the solenoid valve should be connected using the black cable supplied with the unit, as shown in
the illustration below.
The other end of the cable should then be connected to the appropriate terminals - terminal N and terminal
7 - on the terminal strip (see page 6). The third connection of the solenoid valve can be used as earthing.
The connection set contains a loose, 5m long white wire: the water leakage sensor. This sensor is connected
to the eighth terminal on the printed circuit-board. The sensor cable should be led to the outside through the
opening in the panel and should be placed on the ground at the lowest point. The end of the sensor cable
can be split into several cores using a connector, so that more than one point is secured against leakage.
If the sensor has a black cap, this should be cut back and stripped 5mm and the cores should be stripped.
Connect the other side to the little white plug on the printed circuit-board as shown in the illustration. In case
of water leakage, the water supply will be stopped immediately by means of the electrical valve in the water
pipe.
ELECTRICAL CONNECTIONS
Electric solenoid valve
Water leakage sensor
To Next Page
