OPTICLIMATE 6000 PRO3 - Inverter 1-Phase 230 V Wiring; Inverter 3-Phase 400 V Wiring

THE CLIMATE FACTORY/MANUALS/OPTICLIMATE (INVERTER)
www.theclimatefactory.com info@theclimatefactory.com
© The Climate Factory
DN 7 15L1 16L2 12L3
14
(COM)
18
P
E
N
r

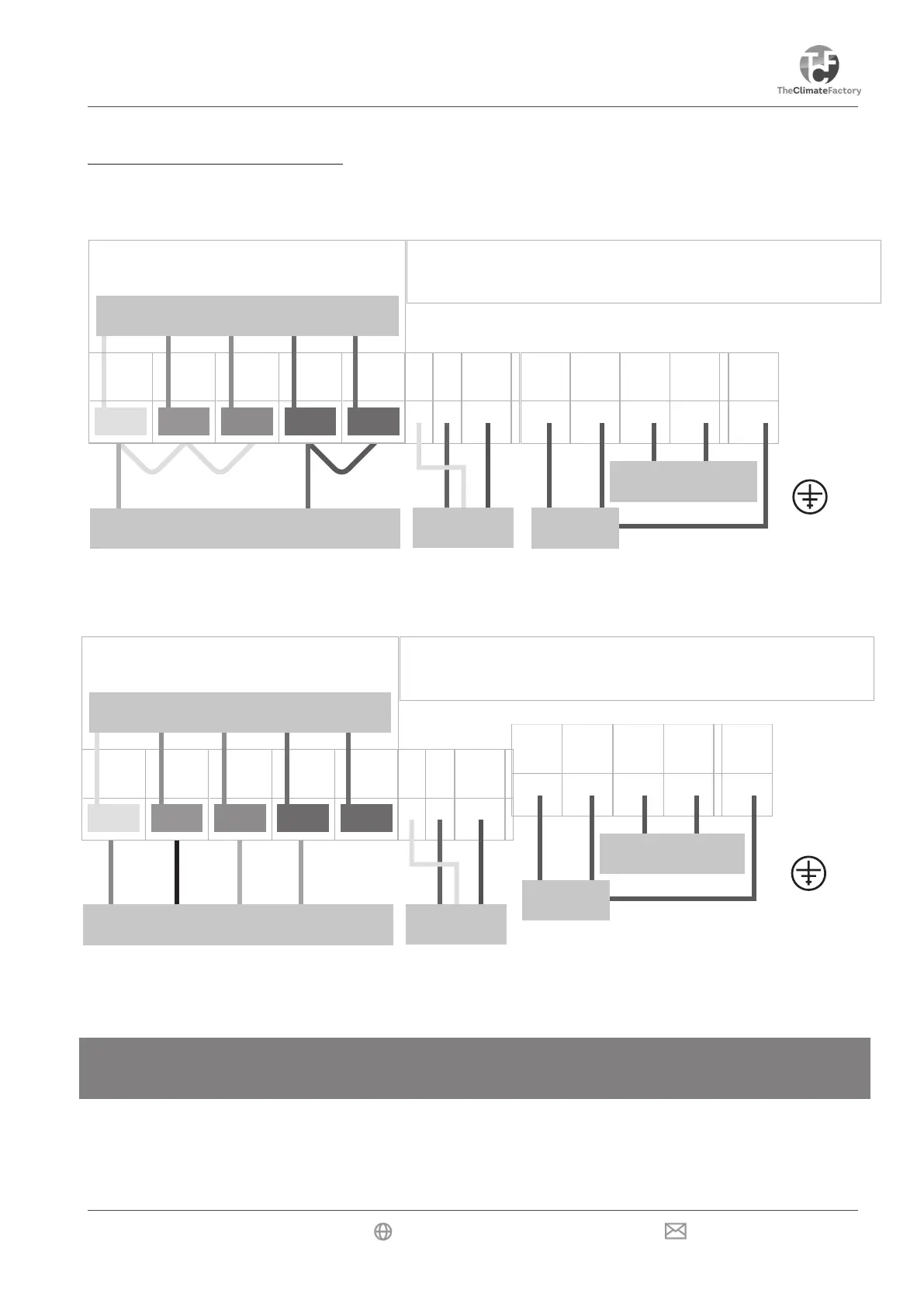

Inverter models
Connecting to the terminal strips left
corner
INVERTER 1 PHASE 230VOLT
Connecting to the terminal strips right corner
When connecting the inverter models to 1 phase 230volt, there need to be bridges between L1, L2 and L3.
There should also be a bridge between N and D. With a new unit, the bridges are connected.
DN
7
15
L1
16
L2
12
L3
14
(COM)
18
P
E
N
a
Connecting to the terminal strips left
corner
Connecting to the terminal strips right corner
When connecting the inverter models to 3 phase 400volt, there may not be any bridges between L1, L2
and L3. There may also not be a bridge between N and D. With a new unit, the bridges are always con-
nected.
Note: Failure to observe the above description can cause irreparable damage to compressor/ inverter.
ELECTRICAL CONNECTION
Earthing
Earthing
blue
yellow
green red blue
2 loops with 230V 1 phase Solenoid valve
The automatic
moisture meter
Temperature safeguard
INVERTER 3 PHASE 400VOLT
No loops with 400V 3 phase
blue
yellow
green red blue
Solenoid valve
The automatic
moisture meter
Temperature safeguard
