Opticon ESL

ESL Server manual

v1.0.62.2

8.1. Template Selection

Template selection determines which image template is used under which conditions.

The template selection area lists all the found templates in the specified ‘Template folder’ and shows if the

template is currently enabled and, if so, under which condition it must be used.

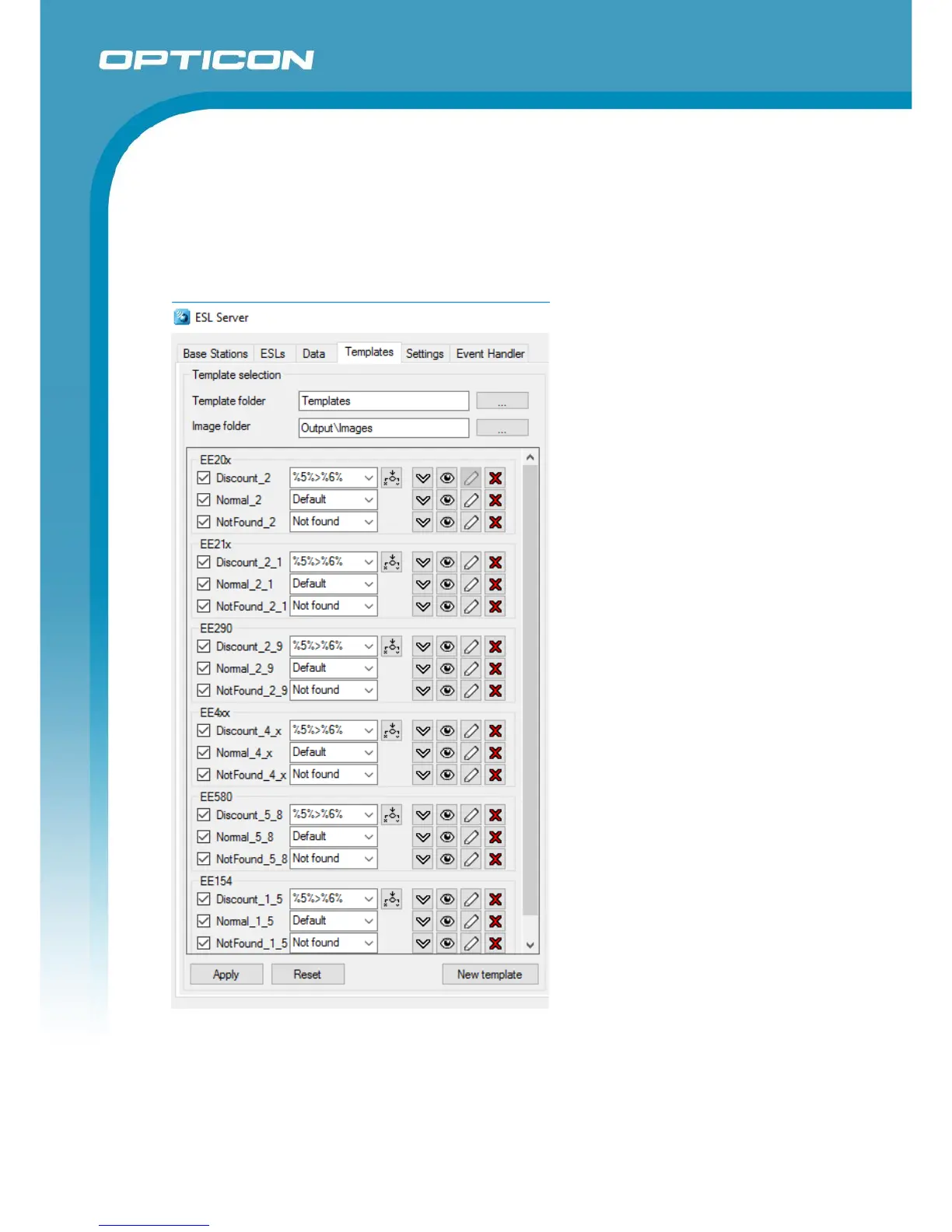

Example of the template selection area

Default Chapter2
- Document History2
- Serial Number2
- Table of Contents3
1 Features and Specifications6
- Abstract6
- Contents of an ESL Demo Kit6
- Physical Features6
  - Dimensions6
  - Weight6
- Environmental Specifications7
  - Operating Temperature and Humidity (EE201)7
  - Storage Temperature and Humidity (EE201)7
- Interface Specifications7
- Electrical Specifications7
  - Electrical Characteristics7
  - Main Batteries8
- Hardware Specifications9
- Serial Number10
  - Ebs-31 / Ebs-4010
  - Esls10
- Safety10
2 Solution Overview11
- CSV-File Based Solution12
- SQL Solution13
- CSV / SQL Hybrid Solution14
- External Content Management Solution14
- Sql Api14
3 Setting up the Hardware and Software15
- Installing the ESL Server Application15
- Installing and Finding the Ebs3X / EBS40 Base Stations15
- Installing and Activating the Esls16
- Mounting Esls17
4 Linking of Esls to Products18
- Linking in the ESL Server Application19
- Linking Using an Opticon Batch Terminal20
- Linking Using the Provided Web Application20
5 Configuring the Base Stations21
- Configuring the RF Channel21
- Changing the Local Name22
- Changing the PAN ID / LAN ID22
- Configuring the Ethernet Settings23
- Factory Default24
- Base Station Firmware Update25
  - Trouble Shooting25
6 Configuration and Monitoring of Esls26
- Configuration of Esls26
- Monitoring of Esls29
- Filtering Esls30
- Controlling Esls30
7 Database Configuration32
- CSV Data Base Configuration33
  - Changing the Database Format and Settings34
- SQL Data Base Configuration36
- Open Database Connectivity (ODBC) Configuration52
- CSV / SQL Hybrid Configuration54
- External Content Management Configuration56
- Manual Editing of the Product Database58
- Editing the Links-Table58
8 Designing the ESL Image Layout59
- Template Selection60
  - Conditions61
- Using the Template Editor63
  - Static and Dynamic Content65
  - Conditional Objects65
- Saving and Exporting a Template66
- Using Example Data66
9 Connecting the Back Office Using CSV-Files68
- Product Database Format68
- Product-ESL Link Database Format69
- Middleware Application (CSV-Files Only)71
10 Barcode Terminal Application72
- Setting up the Barcode Terminal72
- Loading the Database Files on the Terminal73
- Creating Links between Esls and Products73
  - Oph100X, H13, OPH3000 or OPL972874
  - Opn2002/3/4/5/675
- Sending the Link File Back to the PC75
11 Using the Web Application for Linking and Monitoring76
- Web Application with Oracle, Postgresql, Sqlite, MS-SQL and DB278
12 Running the ESL Server as Service78
Appendix A: Demo Barcodes80
Appendix B: My-SQL Demo Configuration81
Appendix C: MS-SQL Demo Configuration83
Appendix D: Oracle Demo Configuration85
Appendix E: Postgresql Demo Configuration87
Appendix F: Sqlite Demo Configuration89
Appendix G: DB2 Demo Configuration91
Appendix H: Restoring the ESL Server Back to Default (CSV)93
Appendix I: Using the SQL API94
Appendix J: Version History99
